Technical data
Rated voltage | 400 V 3 N PE |
Power frequency | 50 Hz |
Degree of protection | IP 55 |
Permissible airstream temperature | -15°C to +50°C |
Weight | 49 to 210 kg, depending on unit variant |
- For more technical data → rating plate.
- For dimensions and characteristic curves → www.maico-ventilatoren.com.

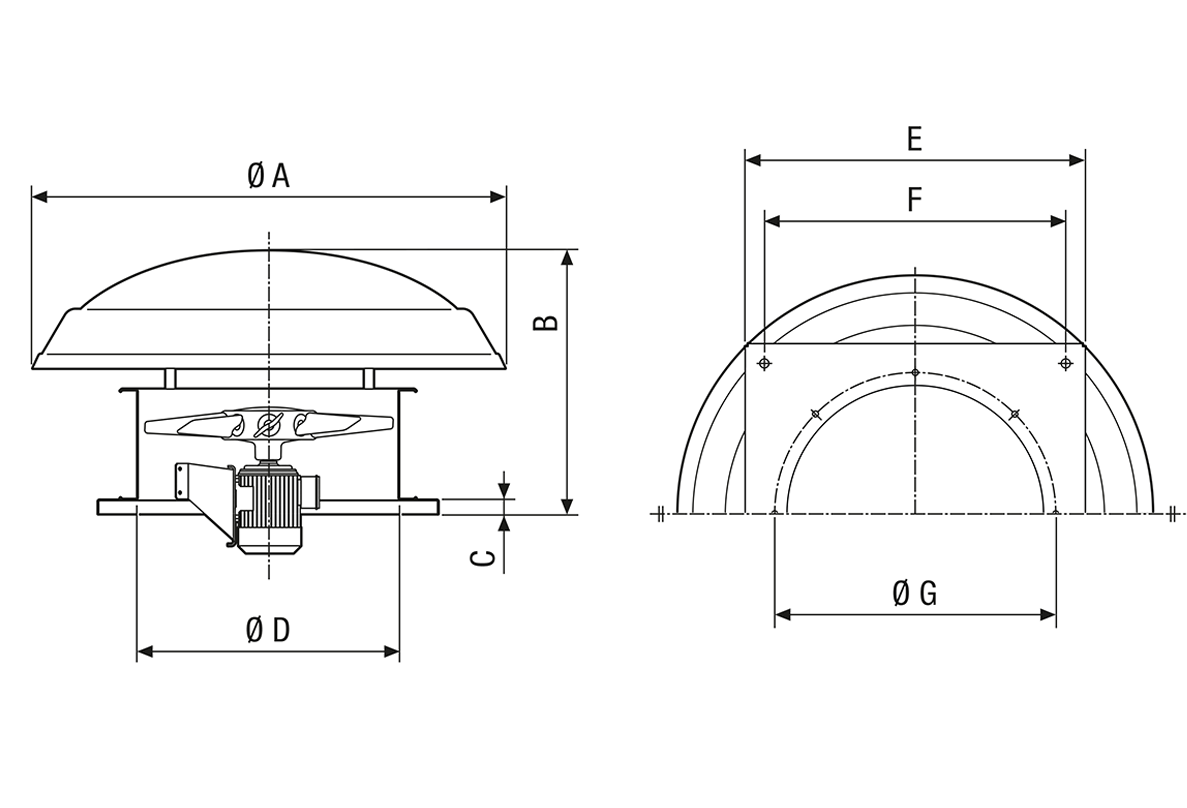

Dimensions
![](../Images/png/294938251__Web.png)
Type | ØA | B | C | D | E | F | G |
---|---|---|---|---|---|---|---|
63/4 | 1100 | 565 | 38 | 630 | 930 | 870 | 690 |
71/4 | 1300 | 670 | 38 | 710 | 930 | 870 | 770 |
80/4 | 1600 | 800 | 38 | 800 | 1100 | 1030 | 860 |
90/4 | 1600 | 780 | 50 | 900 | 1300 | 1220 | 970 |
