DAR conversion to roof fan

A DAR duct fan can be converted into a roof fan with the DAD conversion kit that matches the unit variant. The DAD conversion kit is available for the following nominal sizes: DAR 63.., DAR 71.., DAR 80.. and DAR 90..

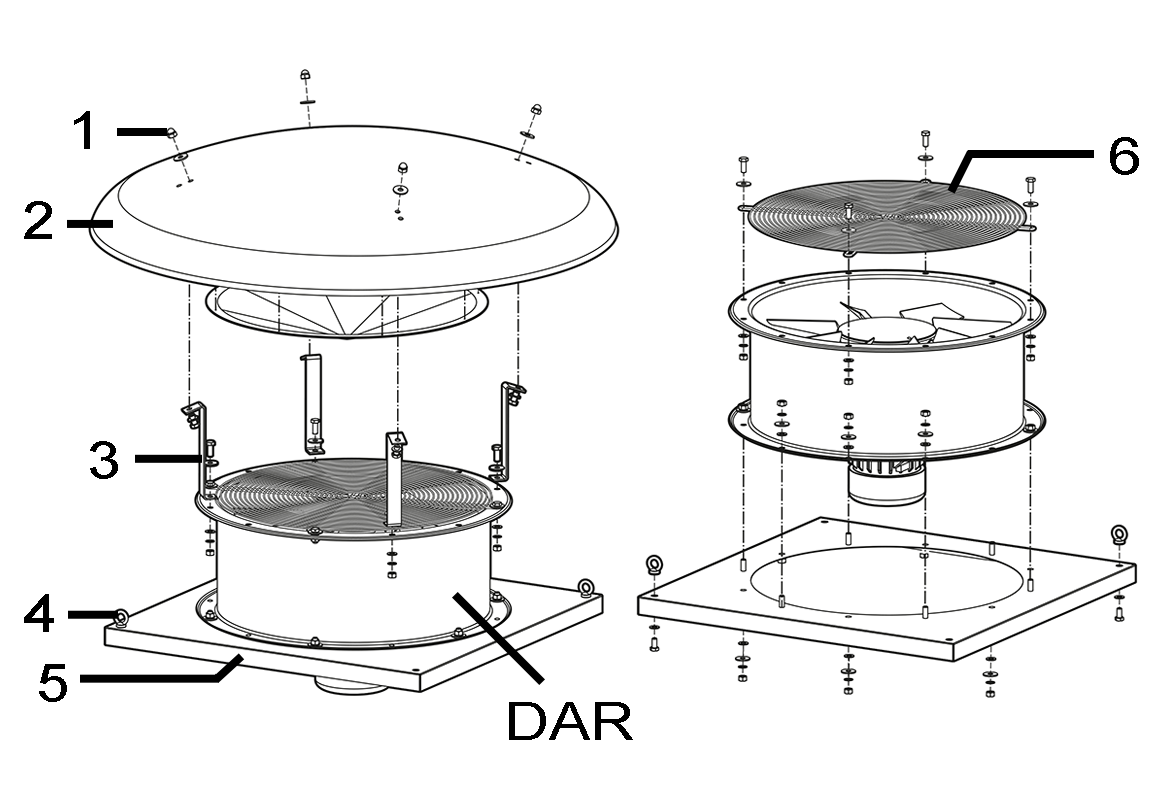

1

Fixing screw with washer

2

Weather protection hood

3

Brackets (4 pcs.)

4

Transport eye

5

Metal base

6

Protective grille on exhaust side

  1. Fasten the DAR fan to the metal base with all associated screws and tighten them firmly (tightening torque 20 Nm).
  2. Attach the upper protective grille and the 4 brackets to the upper fan flange. Tighten the screws firmly (tightening torque 20 Nm).
  3. Fit the weather protection hood (tightening torque of the 4 fastening screws 10 Nm).

For transport and roof installation, observe the installation and operating instructions for DAD roof fans at www.maico-ventilatoren.com.
