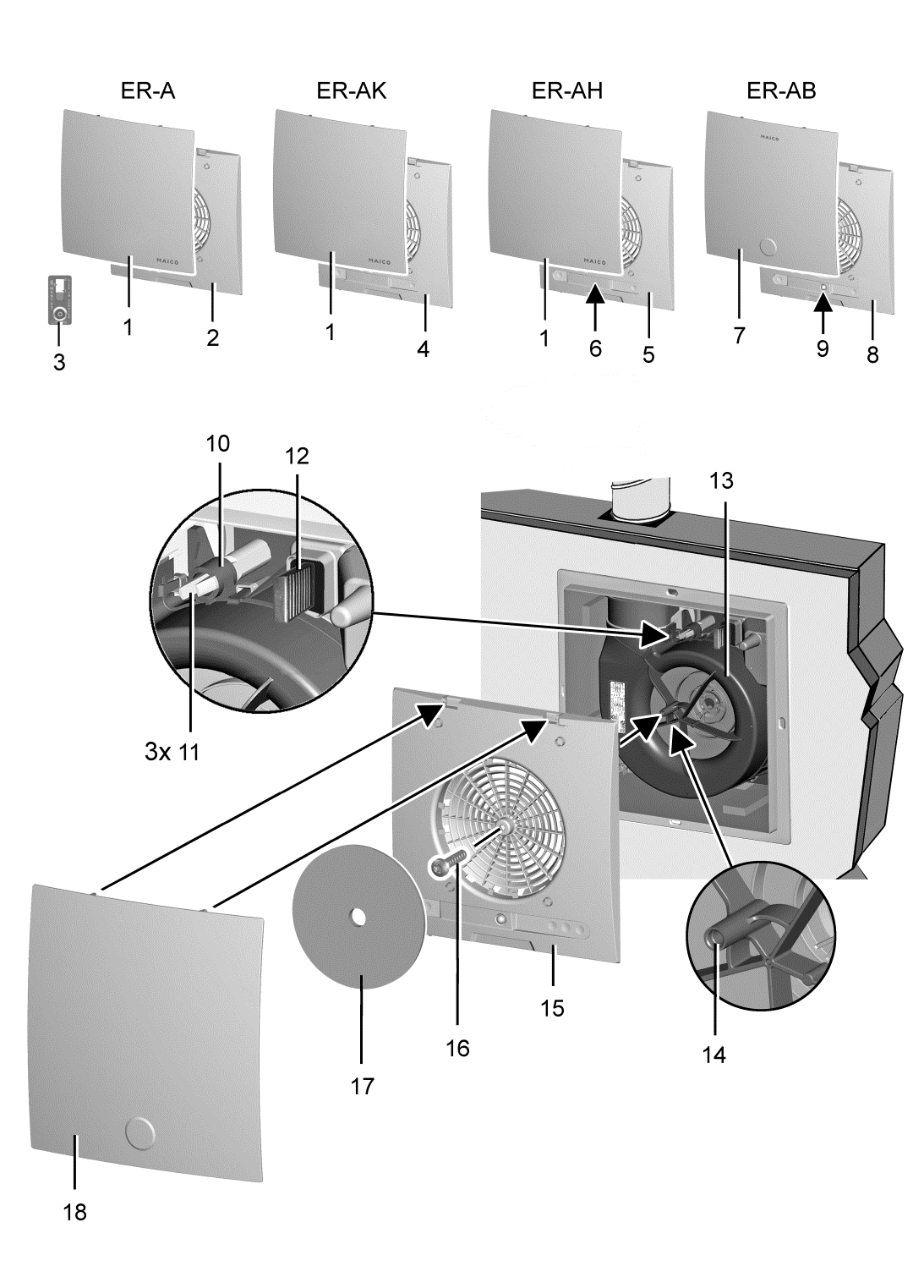

System overview
ER-A standard cover:
1 | Cover – upper part | 2 | Cover – lower part |
3 | Timestrip (→ Title page) |
|
|
ER-AK comfort cover
1 | Cover – upper part | 4 | Cover – lower part with touch control unit |
ER-AH cover with humidity control
1 | Cover – upper part | 5 | Cover – lower part with touch control unit |
6 | Humidity sensor (rear side cover) |
|
|
Cover with ER-AB motion detector
7 | Cover – upper part | 8 | Cover – lower part with touch control unit |
9 | Motion sensor |
|
|
Overview figure
10 | Accommodation mounts (3 pieces) | 11 | Locking hook (3 pieces) |
12 | Sealing plugs – motor board interface (ER-AK, ER-AH, ER-AB) | 13 | Fan insert with rating plate |
14 | Hole for central screw | 15 | Lower part of cover (2, 4, 5, or 8) |
16 | Central screw, self-tapping | 17 | Air filter |
18 | Upper part of cover (1 or 7) |
|
|
