Removing fan insert

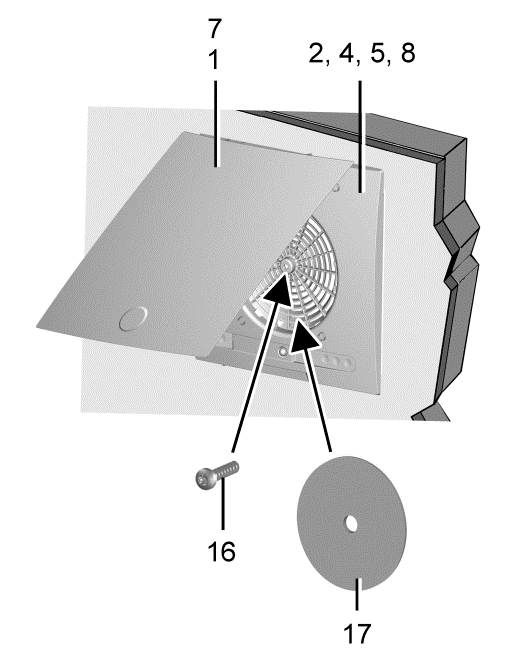

1, 7

Cover – upper part

2, 4, 5, 8

Cover – lower part

16

Central screw

17

Air filter

  1. Before removing the fan insert, switch off all supply circuits (switch off mains fuse), secure against being accidentally switched back on and position a visible warning sign.
  2. Remove the cover. To do so, swivel the upper part of the cover upwards, remove air filter, unscrew the central screw and carefully remove the entire upper part.
  3. Press the 3 locking hooks of the stud together and evenly pull the fan insert out of the housing in parallel.

The degree of protection, according to the rating plate, is only ensured if properly installed (fan insert correctly engaged).
