WS 120 Trio - 1

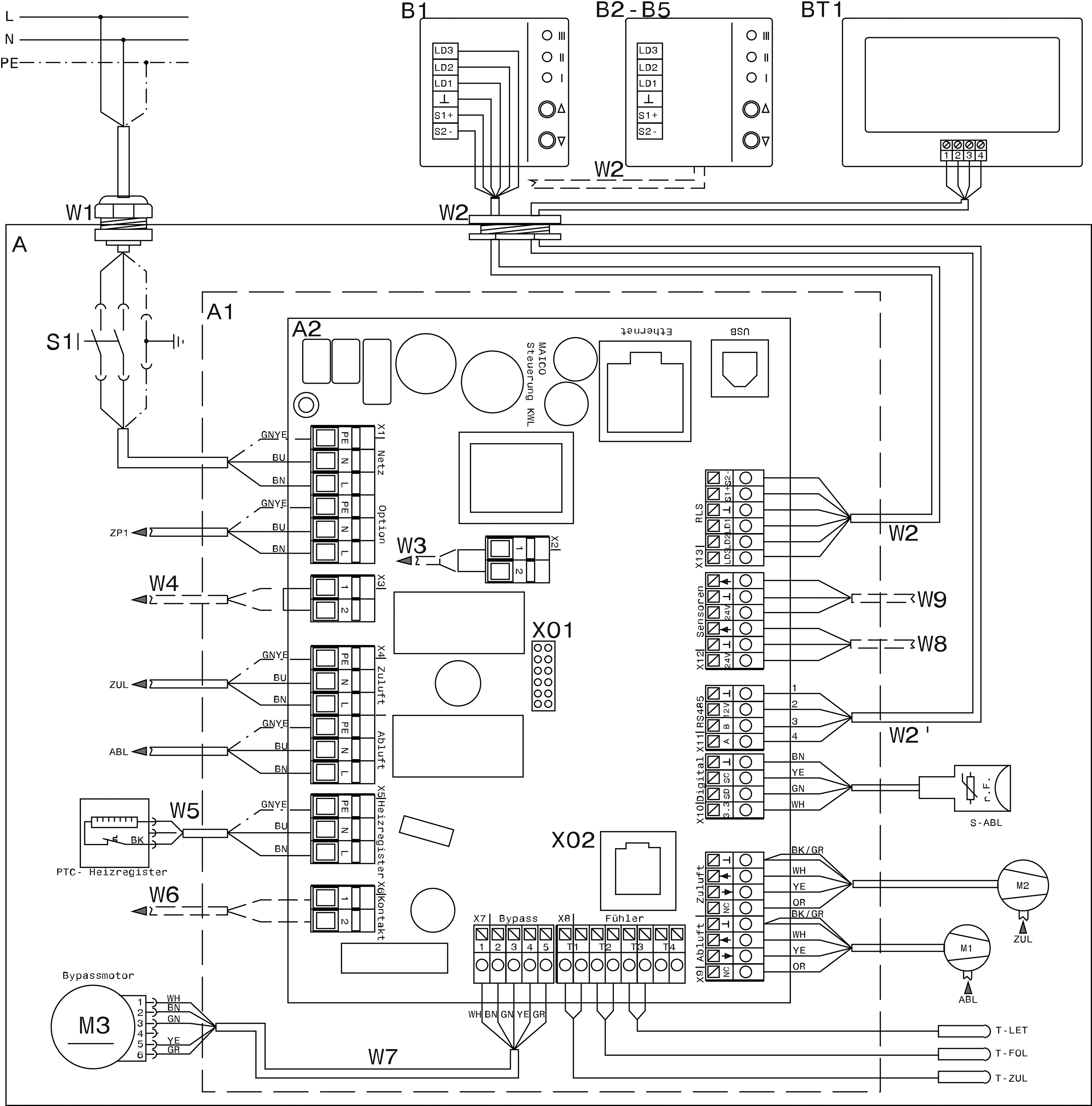

Wiring diagram for main board
A | Ventilation unit |
A1 | Electronic slide-in module |
A2 | Controlled domestic ventilation control |
B1 | Single control unit RLS 1 WR (single control unit) |
B2-B5 | Parallel connection, max. 5 RLS 1 WR single control units |
BT1 | RLS T2 WS touchscreen control unit |
W1 | 230 V AC connection cable |
W2 | Shielded control cable, RLS 1 WR single control unit (provided by customer), e.g. LIYY 6 x 0.34 mm² |
W2’ | RLS T2 WS screened control cable (provided by customer), e.g. LIYY 4 x 0.34 mm² |
W5 | Connection cable for PTC heat register |
S1 | Unit switch |
S2 | Door contact switch |
M1 | Exhaust air/outgoing air fan |
M2 | Outside air/supply air fan |
T-LET | Temperature sensor at air inlet for outside air |
T-FOL | Temperature sensor for outgoing air |
T-ZUL | Temperature sensor for supply air |
S-ABL | Combination sensor for exhaust air |
Further connection options
W2’ | Connection cable for RLS T2 WS or Modbus touchscreen control unit, e.g. LIYY 4 x 0.34 mm² |
W3 | Connection cable (provided by customer) for external safety device with potential-free contact 12 V/2 A |
W4 | Connection cable (provided by customer) for external safety device with potential-free contact 230 V/16 A |
W8 | Connection cable (provided by customer) for external sensor 1 |
W9 | Connection cable (provided by customer) for external sensor 2 |
X01 | Slot for optional EnOcean/KNX communication plug-in module |
X02 | Slot Hardware extension Modular cable |
USB | USB service interface Ethernet network interface (LAN) |
