WS 120 Trio – 2

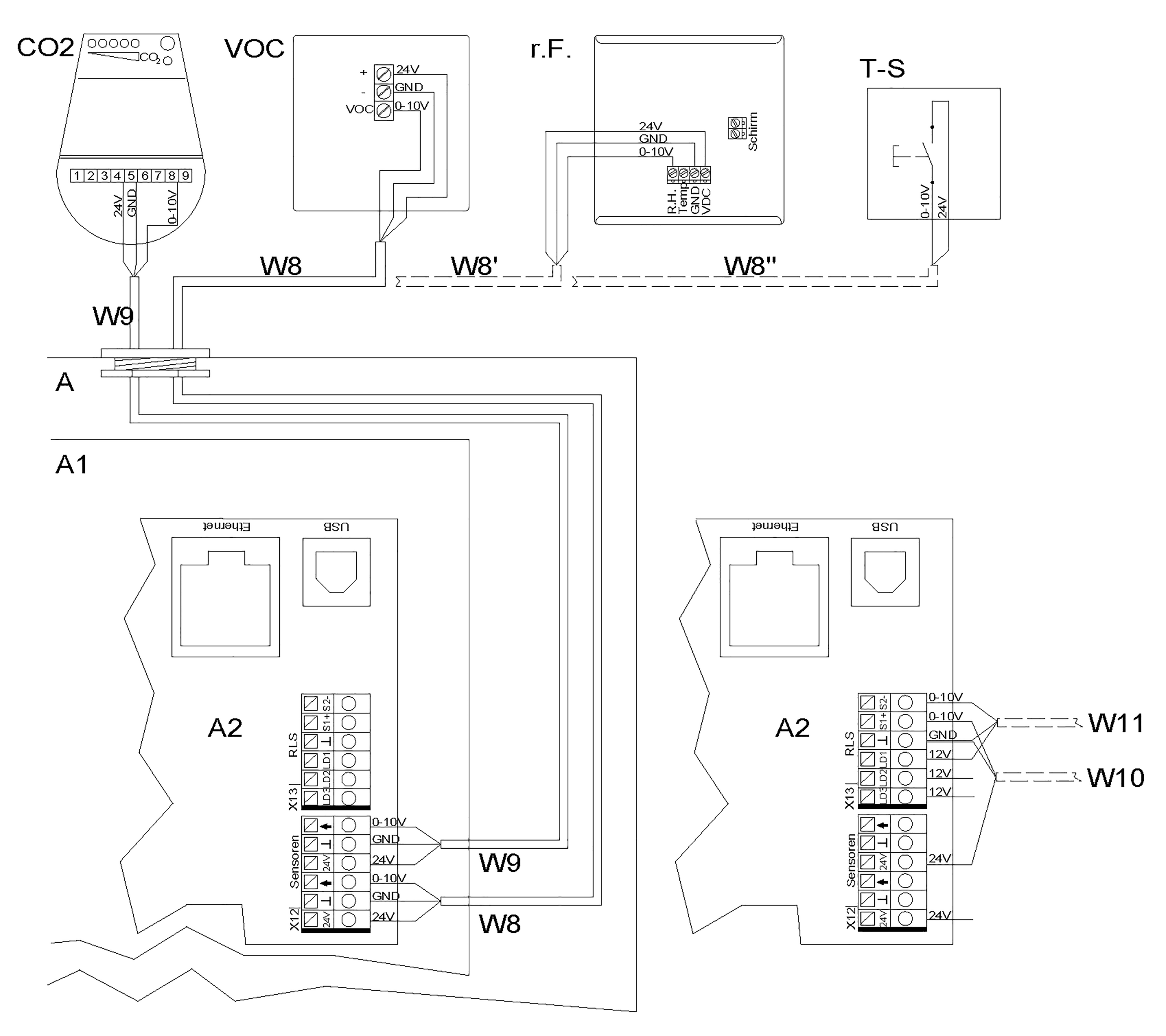

External sensors wiring diagram
A | Ventilation unit |
A1 | Electronic slide-in module |
A2 | Controlled domestic ventilation control |
CO2 | CO2 sensor (accessories) |
VOC | Air quality controller (accessories) |
r.h. | Humidity sensor (accessories) |
T-S | Intermittent ventilation button / external potential-free contact |
W8 | Connection cable (provided by customer) for external VOC sensor, e.g. LIYY 3 x 0.5 mm² |
W8’ | Connection cable (provided by customer) for external r.h. sensor 1, e.g. LIYY 3 x 0.5 mm² |
W8’’ | Connection cable (provided by customer) external pushbutton / potential-free contact (function – intermittent ventilation/sensor type = digital), |
W9 | Connection cable (provided by customer) for external CO2 sensor 2, e.g. LIYY 3 x 0.5 mm² |
W10 | Connection cable (provided by customer) for external sensor 3, e.g. LIYY 3 x 0.5 mm² |
W11 | Connection cable (provided by customer) for external sensor 4, e.g. LIYY 3 x 0.5 mm² |
The control’s sensor inputs can be freely parametrised. The inputs are not defined for a particular sensor type.
