Spare parts for WS 120 Trio
Important information when ordering spare parts:
- Article number
- Unit type
- Ventilation unit serial number
For inquiries, contact
Maico Elektroapparate-Fabrik GmbH
Steinbeisstraße 20
78056 Villingen-Schwenningen,
Deutschland
Tel. +49 7720 694 445
Fax +49 7720 694 175
E-mail: ersatzteilservice@maico.de
When replacing the main board (on the electronics slide-in module), the unit serial number must be assigned to the circuit board. The assignment is only possible with the commissioning software.
For download and video of the commissioning software → Chapter 1.
Spare parts
Item | Designation | Article no. |
1 | GD WS 120 Trio housing cover | E093.1680.0000 |
2 | FA WS 120 Trio filter cover | E192.0843.0000 |
3 | TS WS 120 Trio temperature sensor | E157.1244.0000 |
4 | ETWT WS 120 Trio enthalpy heat exchanger | E192.0689.0100 |
5 | Trio VOC I, internal VOC sensor (optional) | 0157.1483 |
6 | Trio CO2 I, internal CO2 sensor (optional) | 0157.1332 |
7 | V WS 120 Trio fan | E156.0127.0200 |
8 | KVS 7 WS 120 Trio cable feedthrough | E192.0586.0000 |
9 | VK USB WS 120 Trio sealing cap | E175.0297.0000 |
10 | PL WS 120 Trio circuit board (on electronics slide-in module) | E093.1681.0000 |
11 | VHR WS 120 Trio preheating register | E157.1323.0000 |
12 | SE HAT WS 120 Trio combi sensor temperature | E093.1270.0100 |
WS 120 Trio Front

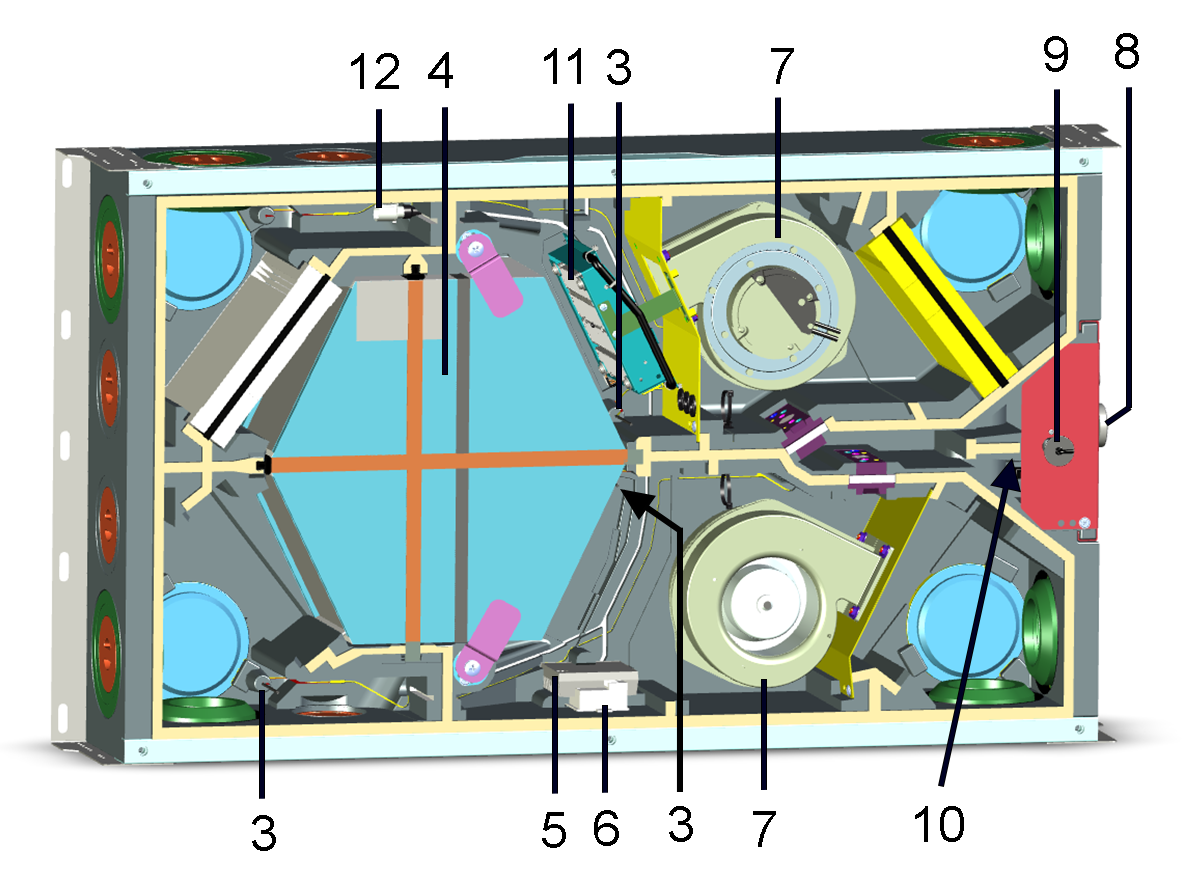

WS 120 Trio LRV

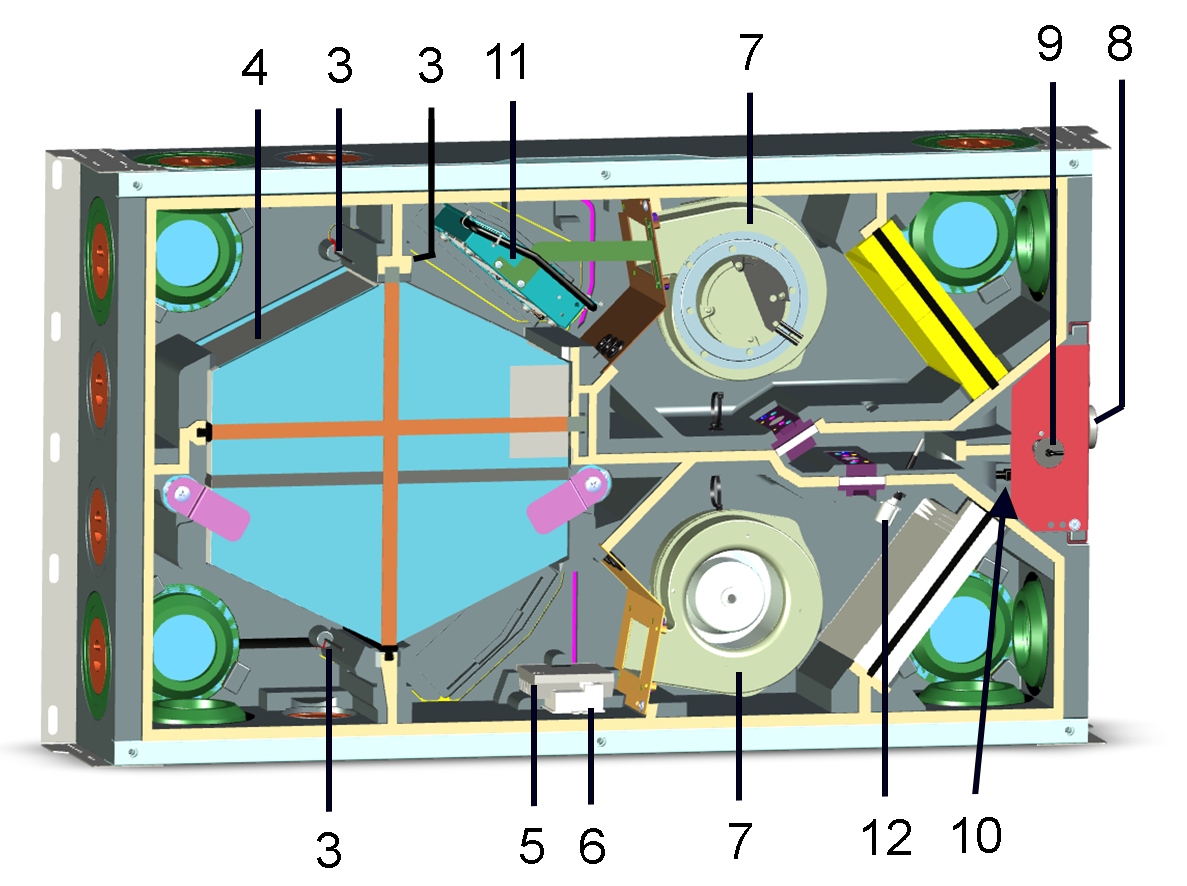

WS 120 Trio LLV

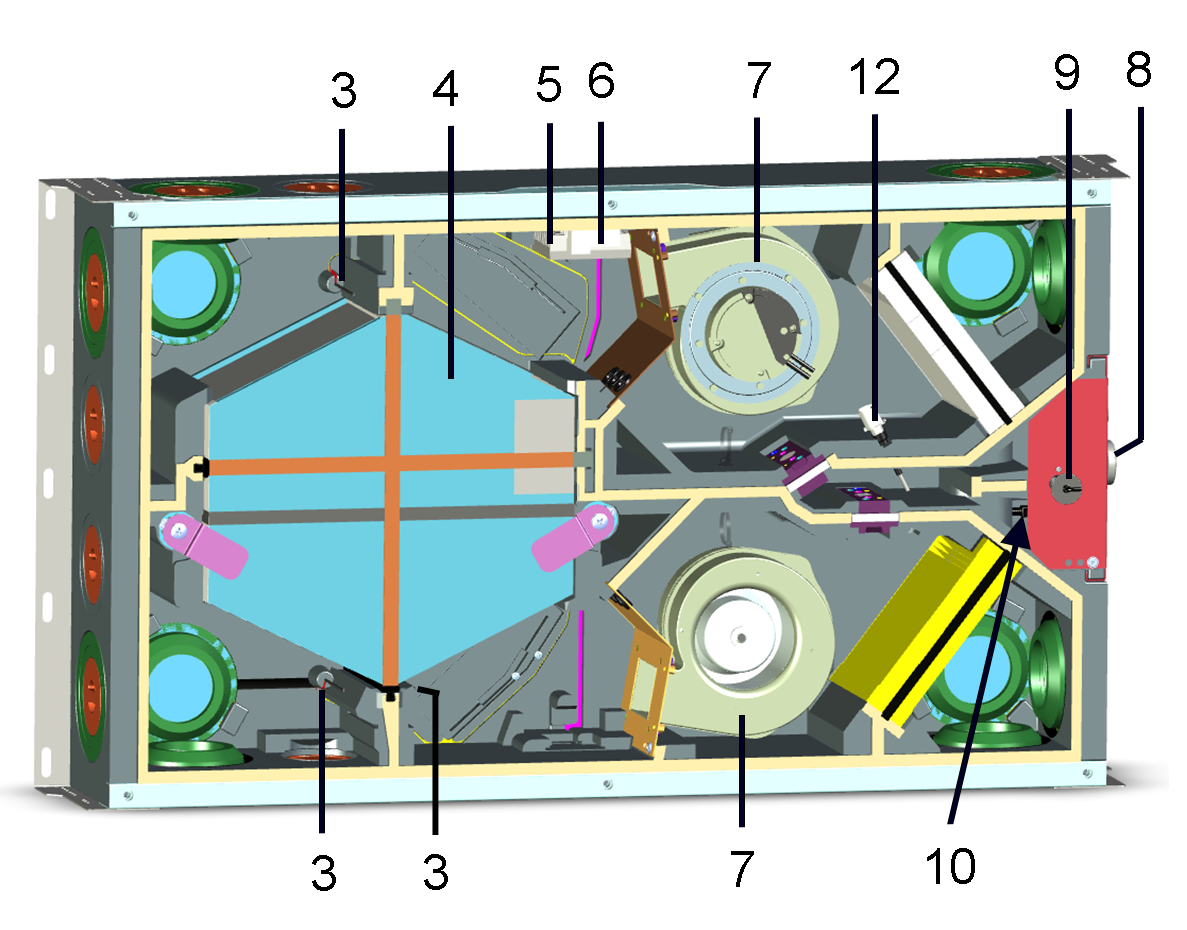

WS 120 Trio QRV

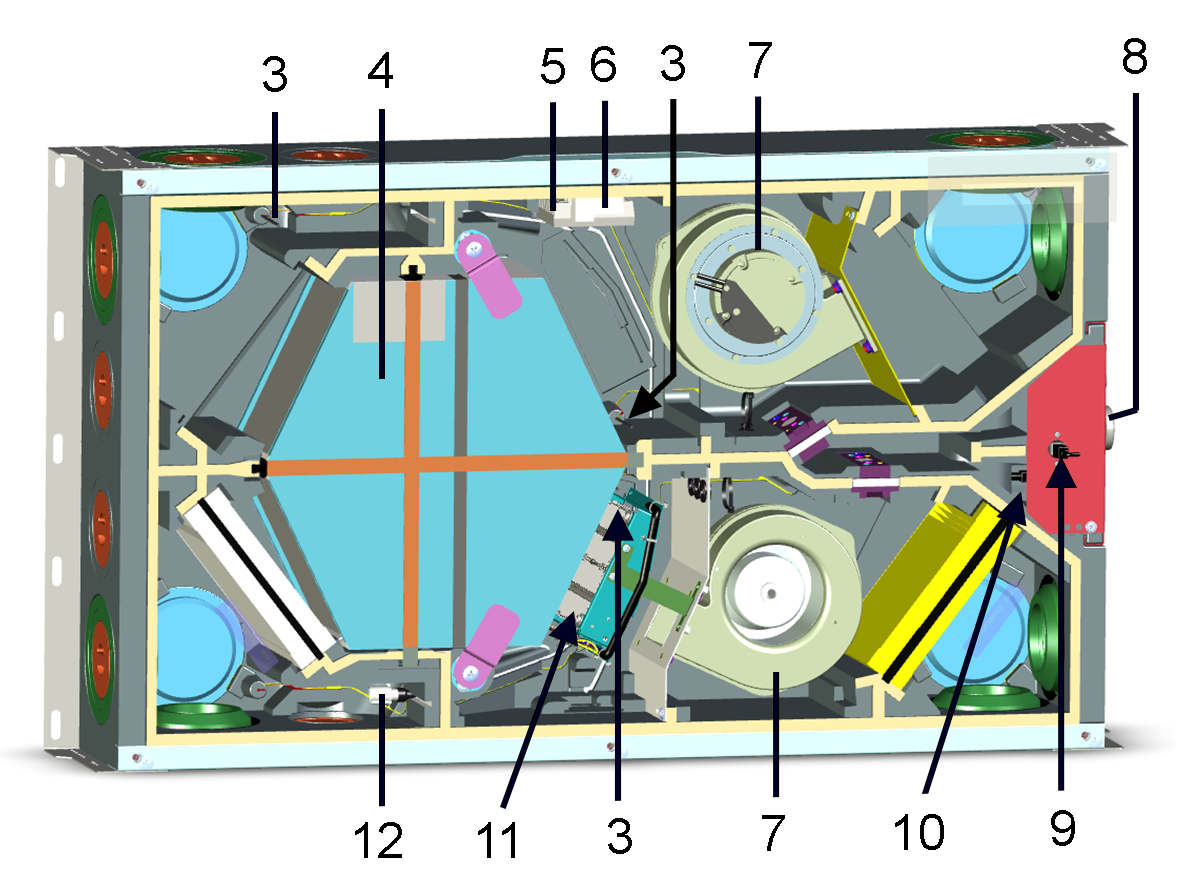

WS 120 Trio QLV
