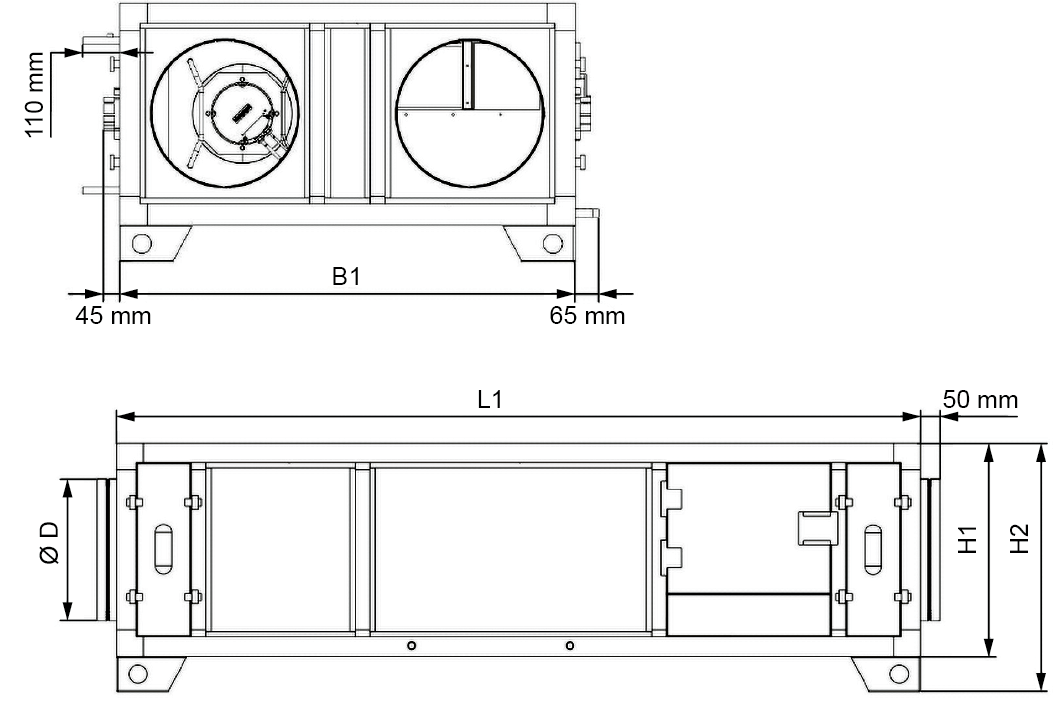

Tableaux de dimensions – Appareils horizontaux [H]
|
|
L1 |
B1 |
H1 |
H2 |
Raccordement de gaine rectangulaire |
Poids |
|
RLT 1200 MV4512H |
2190 mm |
1230 mm |
600 mm |
700 mm |
DN 315 |
289 kg |
|
RLT 1600 MV4516H |
2250 mm |
1230 mm |
600 mm |
700 mm |
DN 400 |
299 kg |
|
RLT 2300 MV4523H |
2395 mm |
1430 mm |
730 mm |
830 mm |
DN 450 |
377 kg |
|
RLT 4000 MV4540H |
2980 mm |
1630 mm |
1050 mm |
1150 mm |
680 x 940 mm |
607 kg |
|
RLT 5500 MV4555H |
3240 mm |
1750 mm |
1334 mm |
1434 mm |
730 x 1225 mm |
1047 kg |
