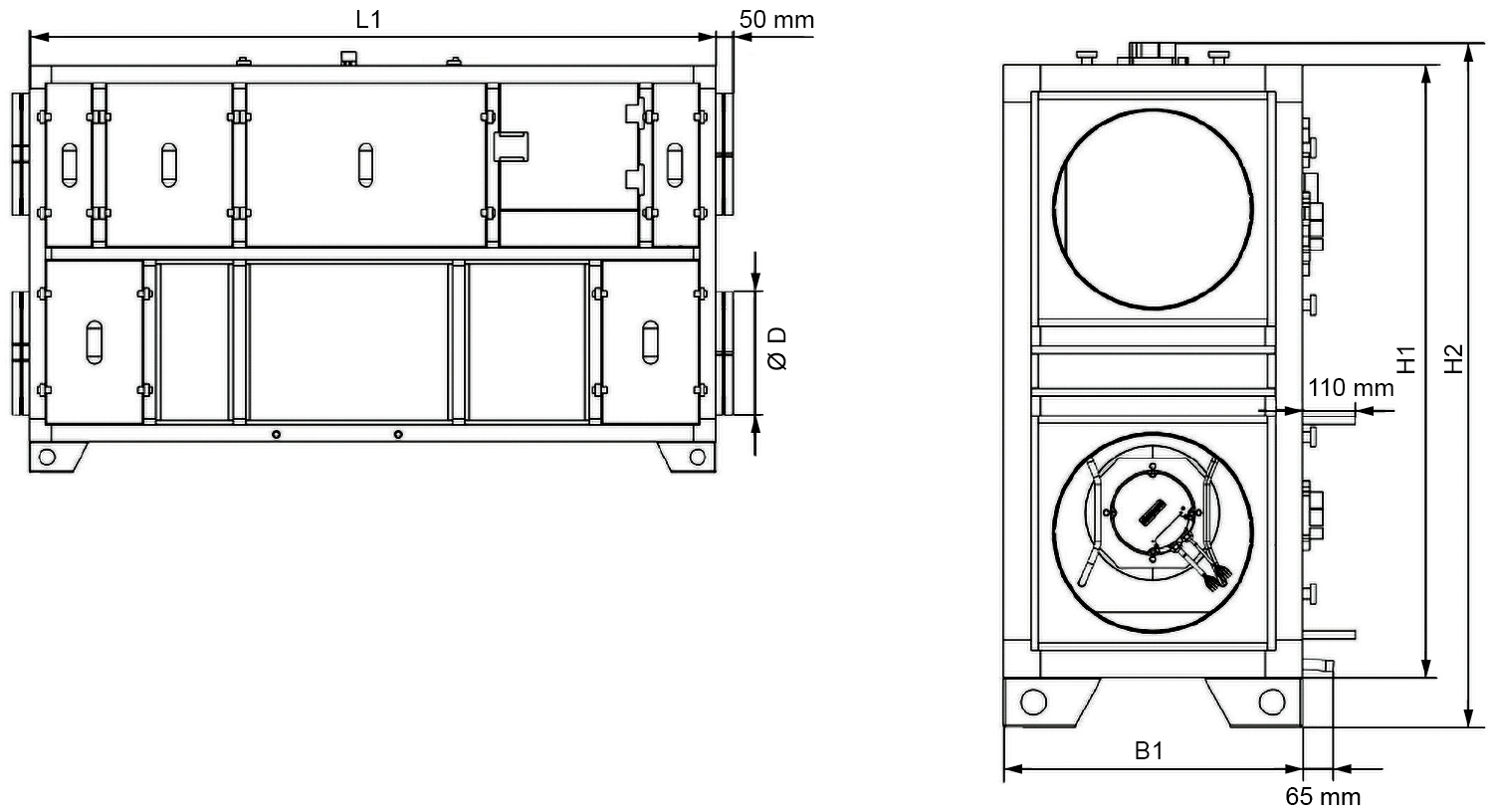

Tableaux de dimensions – Appareils verticaux [V]
|
|
L1 |
B1 |
H1 |
H2 |
Raccordement de gaine rectangulaire |
Poids |
|
RLT 1200 MV4512V |
2190 mm |
600 mm |
1230 mm |
1373 mm |
DN 315 |
301 kg |
|
RLT 1600 MV4516V |
2250 mm |
600 mm |
1230 mm |
1373 mm |
DN 400 |
311 kg |
|
RLT 2300 MV4523V |
2395 mm |
730 mm |
1430 mm |
1373 mm |
DN 450 |
393 kg |
|
RLT 4000 MV4540V |
2980 mm |
1050 mm |
1630 mm |
1773 mm |
940 x 670 mm |
632 kg |
|
RLT 5500 MV4555V |
3240 mm |
1334 mm |
1750 mm |
1873 mm |
1124 x 730 mm |
1089 kg |
