Final assembly kit

PP 45 O

Article number: 0095.0240
Manufacturer: MAICO
Final installation kit for PushPull 45 K single-room ventilation unit with heat recovery, comprising fan,... more information

Product data sheet
PP 45 O IM0017236.PNG Final installation kit for PushPull 45 K single-room ventilation unit with heat recovery, comprising fan, ceramic heat exchanger, innner cover with manual shutter and 1 x ISO Coarse 30 % (G2) filter and 1 x ISO Coarse 45 % (G3) filter, version: with manual shutter, accessories required: shell sleeve, external cover or soffit element and RLS 45 K or RLS 45 O room air control, optional accessories: wall block, sensors, power unit and EnOcean extension module
PP 45 O IM0020196.PNG Final installation kit for PushPull 45 K single-room ventilation unit with heat recovery, comprising fan, ceramic heat exchanger, innner cover with manual shutter and 1 x ISO Coarse 30 % (G2) filter and 1 x ISO Coarse 45 % (G3) filter, version: with manual shutter, accessories required: shell sleeve, external cover or soffit element and RLS 45 K or RLS 45 O room air control, optional accessories: wall block, sensors, power unit and EnOcean extension module
PP 45 O IM0007254.PNG Final installation kit for PushPull 45 K single-room ventilation unit with heat recovery, comprising fan, ceramic heat exchanger, innner cover with manual shutter and 1 x ISO Coarse 30 % (G2) filter and 1 x ISO Coarse 45 % (G3) filter, version: with manual shutter, accessories required: shell sleeve, external cover or soffit element and RLS 45 K or RLS 45 O room air control, optional accessories: wall block, sensors, power unit and EnOcean extension module
Back
  • On the notes
PP 45 K
PP 45 O
PP 45 RC

Characteristic curve

Dimensioned drawing

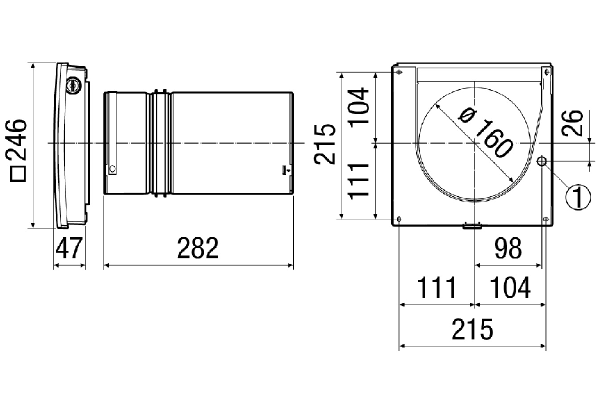

PP 45 O - Dimensioned drawing [mm]

  1. Cable feedthrough

Technical data

PP 45 O - Technical data

Article PP 45 O
Model Object version
Air flow volume 15 m³/h / 20 m³/h / 30 m³/h / 36 m³/h / 42 m³/h
SEC average -40,06 kWh/(m²*a)
Energy efficiency class A+
Rated voltage 12 V DC
SPI value in accordance with DIN EN 13141-8 0,11 Wh/m³
Maximum power consumption 1,2 W / 1,7 W / 2,1 W / 2,8 W / 3,5 W
Degree of protection IP 00
DIBT approval yes
Installation position horizontal
System type Decentralised
Material Synthetic material
Housing material Synthetic material
Heat exchanger material Ceramic
Colour Traffic white, similar to RAL 9016
Weight 3,08 kg
Weight including packaging 3,83 kg
Type of filter Outside and exhaust air filter
Filter class ISO Coarse 30 % (G2) / ISO Coarse 45 % (G3)
Connection diameter 160 mm
Width 246 mm
Height 246 mm
Depth 282 mm
Width with packaging 265 mm
Height with packaging 247 mm
Depth with packaging 300 mm
Wall has to be broken through 162 to 182 mm
Minimum wall thickness 265 mm (if the slide-in module is flush with the wall sleeve)
Degree of heat provision with reference volumetric flow according to DIN EN 13141-8 84,3 %
Required room air control RLS 45 K / RLS 45 O
Sound pressure level 21 dB(A) / 25 dB(A) / 31 dB(A) / 35 dB(A) / 38 dB(A) / Distance 1 m, free-field conditions
Rated max. element normal difference in noise level Dn,w 51 dB / measured with PP 45 LE and shutter closed; 51 dB measured with PP45 AE, 2x PP45 SE, shutter closed; 46 dB measured with PP45 LE, PP45 LEW90, shutter open
Approval number Z-51.3-416
Packing unit 1 piece
Range K
GTIN (EAN) 4012799952404
Article number 0095.0240

Product description

Productdescription

PP 45 O

short description

Final installation kit for PushPull 45 K single-room ventilation unit with heat recovery, comprising fan, ceramic heat exchanger, innner cover with manual shutter and 1 x ISO Coarse 30 % (G2) filter and 1 x ISO Coarse 45 % (G3) filter, version: with manual shutter, accessories required: shell sleeve, external cover or soffit element and RLS 45 K or RLS 45 O room air control, optional accessories: wall block, sensors, power unit and EnOcean extension module

Product description

Model

  • The units can be used to set up a complete ventilation system according to DIN 1946-6 including exhaust air units via a central control (RLS 45 K).
  • With manual shutter.
  • Clear commissioning software, when using RLS 45 K control, facilitates the commissioning. Settings can be saved and transferred to other controls.

Optional accessories

  • PP 45 MB wall block
  • PP 45 LT power unit
  • PP 45 EO EnOcean extension module
  • PP 45 ACT EnOcean actuator
  • PP 45 HYI and PP 45 HY humidity sensor
  • PP 45 CO2 CO2 sensor
  • PP 45 VOC sensor
  • Air filter, PP 45 G2, PP 45 G3 and PP 45 G2P replacement

Approvals and certificates

  • DIBt approval Z-51.3-416.
  • Test report in accordance with EN 13141-8.
  • Entry in TZWL bulletin.

Heat exchanger

  • Thanks to the high-performance heat exchanger and high-efficiency EC fan, the units achieve a degree of heat provision of 84.3 % at reference volumetric flow according to EN 13141-8.

Installation instructions

  • Mounting involves 2 steps:
    • Installation of the PP 45 RHK (DN 160) or PP 45 RHL (DN 160) shell sleeve and an external cover in a DN 160 core drill hole with an inclination of 1-2 %.
    • We recommend drilling a DN 182 core hole and using the polystyrene shims provided to align the inclination of the sleeve.
    • The shell sleeve is protected from contamination by plaster protective covers.
    • Then the final assembly kit is integrated.
    • No ducts have to be laid and the system does not have to be adjusted.

Electrical connection

  • When delivered, the unit is assembled and ready for service.
  • The electrical connection is made using a plug connection.
  • Connection to RLS 45 K or RLS 45 O room air control using pluggable control cables.
  • The 12 VDC power cable of the RLS 45 K / RLS 45 O room air control to the unit is also the control cable.

Condensation drain

  • The condensate is removed via an integrated condensation drip edge in the external cover.

Special features

  • The PP 45 K/O/RC unit series is the quietest unit series on the market and impresses with its sound pressure level values (per ventilation level and a distance of 1 m): 21 dB(A) / 25 dB(A) / 31 dB(A) / 35 dB(A) / 38 dB(A).
  • The energy efficiency of two units + control system impresses with an SPI value of max. 0.12 Wh/m³.
  • Due to the very quiet and energy-saving motors, a very good sensor-guided operation, the devices achieve the energy efficiency class of A+.
  • The duct mounting can be removed, without tools, for cleaning purposes and filter replacement. The two filters can also be changed without tools.
  • The heat exchanger can also be removed for cleaning purposes with the aid of a tool.
  • The units can be operated in 5 different ventilation levels 15/20/30/36/42 m³/h and in 3 operating programs – continuous ventilation with heat recovery, cross-ventilation and sensor-guided automatic operation.
  • Flow-optimised external covers in the accessories range keep the exhaust air away from the external façade.

Features

  • Final installation kits for PushPull 45 single-room ventilation unit with fan, ceramic heat exchanger, internal cover and two integrated filters (ISO Coarse 30 % (G2) and ISO Coarse 45 % (G3)) such that the air is filtered in both directions.
  • To achieve efficient ventilation, we would recommend operating the units in pairs.
  • In certain system combinations, an odd number of units is also possible.

Required accessories

  • PP 45 RHK or PP 45 RHL shell sleeve
  • PP 45 AK, PP 45 AE, PP 45 AW, PP 45 AS, PP 45 AKR oder PP 45 AKB external cover for external wall mounting or PP 45 LE soffit element for soffit channel mounting.
  • RLS 45 K or RLS 45 O room air control system for the PP 45 K and PP 45 O final installation kits and DS 45 RC radio switch for the PP 45 RC radio unit.
  • Up to a maximum of 6 units can be controlled at the same time through an RLS 45 K or RLS 45 O room air control.
  • If using the DS 45 RC radio switch, there is no limit on the number of units provided that they are within range of the radio switches.

Table of contents

Wiring diagram

PP 45 O - Wiring diagram

RLS 45 O - PushPull 45 object room air control

PP 45 O - PushPull 45 object ventilation unit

Fan 1.1 - fan unit 1, unit pair 1

Fan 2.1 - fan unit 2, unit pair 1

Fan 1.2 - fan unit 1, unit pair 2

Fan 2.2 - fan unit 2, unit pair 2

Fan 1.3 - fan unit 1, unit pair 3

Fan 2.3 - fan unit 2, unit pair 3

UP-L -Recessed-mounted distributor connection for fan units, connection of all fan units in star shape to distributor

W-F1 - Fan 1 control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. length to distributor 4m.

W-F2 - Fan 2 control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. length to distributor 4m.

W1.X - Fan unit control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. cable length from UP-L distributor to PP 45 ventilation unit = 25m.

W2.X - Fan unit control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. cable length from UP-L distributor to PP 45 ventilation unit = 25m.

W3 - Bus (RS-485) connection cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. cable length to the sensors, RLS, LT and EnOcean module approx. 100m. Alternatively, this connection can also be used as a ModBus RTU interface.
