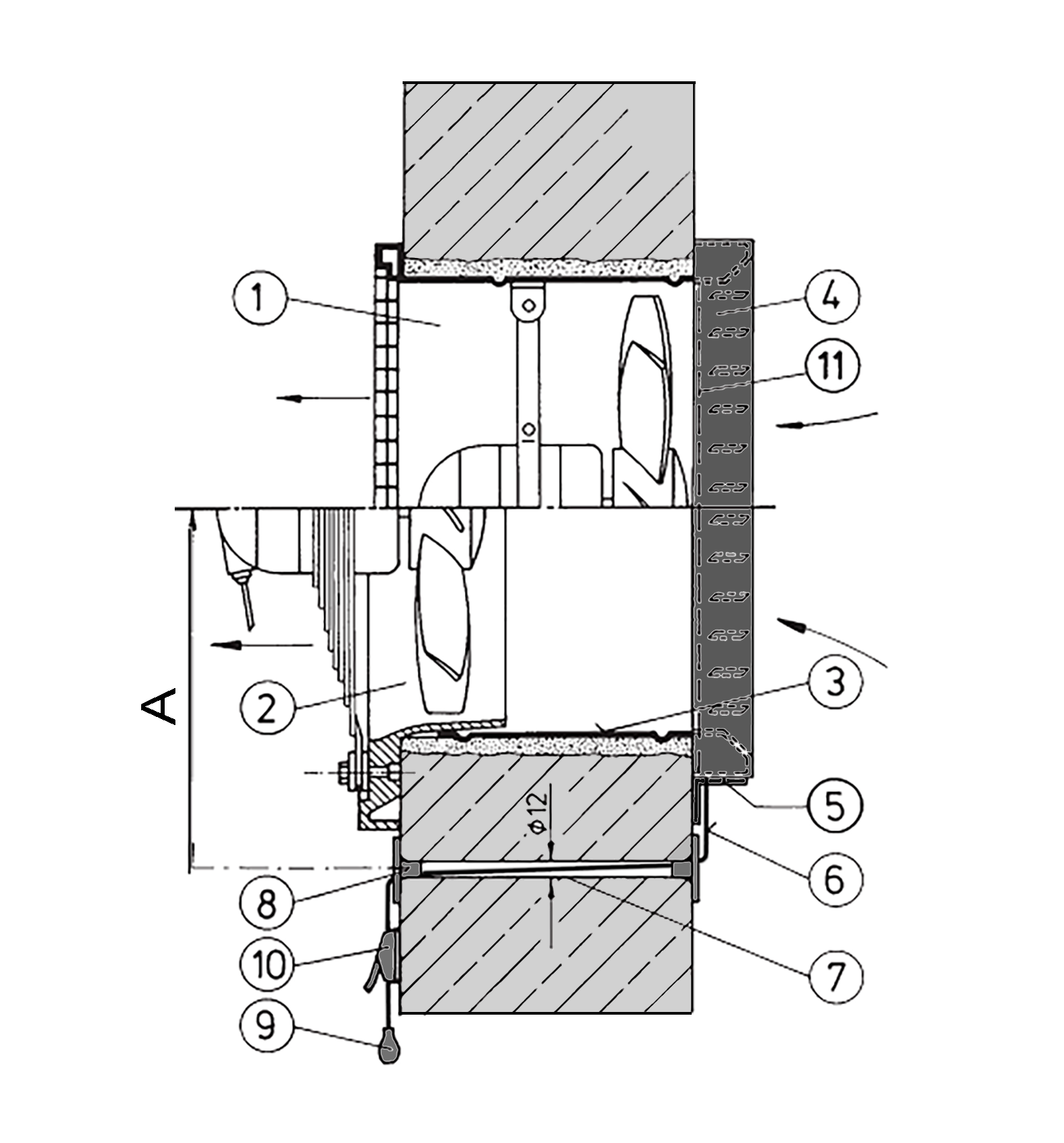

Unit overview

1

Fan EZF / DZF

2

Fan EZQ / DZQ

3

Extension sleeve VH

4

Shutter RS 20… RS 60

5

Fixing bracket RS 35… RS 60

6

Pull cord

7

Duct (provided by customer)

8

Deflection sleeve for wall inside and outside

9

Pull knob

10

Cord clamp

11

Protective grille in accordance with DIN EN ISO 13857
