Axial wall fan

DZS 30/6 B Ex t

Article number: 0094.0205
Manufacturer: MAICO
Axial wall-mounted fan with steel wall ring, DN300, three-phase AC, explosion-proof, medium: dust

Product data sheet
DZS 30/6 B Ex t IM0008702.PNG Axial wall-mounted fan with steel wall ring, DN300, three-phase AC, explosion-proof, medium: dust
DZS 30/6 B Ex t IM0019950.PNG Axial wall-mounted fan with steel wall ring, DN300, three-phase AC, explosion-proof, medium: dust
DZS 30/6 B Ex t IM0017898.PNG Axial wall-mounted fan with steel wall ring, DN300, three-phase AC, explosion-proof, medium: dust
Back
  • On the notes
DZQ 30/6 B Ex t
DZS 30/6 B Ex t
DZQ 30/4 B Ex t
DZS 30/4 B Ex t
DZQ 30/2 B Ex t
DZS 30/2 B Ex t

Characteristic curve

DZS 30/6 B Ex t - Characteristic curve

Dimensioned drawing

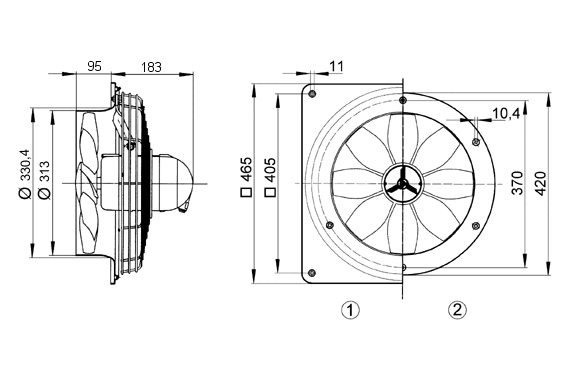

DZS 30/6 B Ex t - Dimensioned drawing [mm]

  1. Steel wall plate = EZQ/DZQ model
  2. Steel wall ring = EZS/DZS model

Technical data

DZS 30/6 B Ex t - Technical data

Article DZS 30/6 B Ex t
Model Steel wall ring
Air flow volume 1.100 m³/h
Rotating speed 985 1/min
Speed controllable ✔
Reversing capacity ✔
Type of voltage Three-phase AC
Rated voltage 400 V
Frequency 50 Hz
Nominal output 25 W
cosφ 0,27
Inom 0,12 A
Imax at UNominal 0,13 A
Degree of protection IP 64
Insulation class F
Type of installation Surface-mounted
Material Sheet steel, galvanised
Colour galvanised
Weight 7,9 kg
Weight including packaging 8,3 kg
Nominal size 300 mm
Width 465 mm
Height 465 mm
Depth 278 mm
Width with packaging 480 mm
Height with packaging 480 mm
Depth with packaging 320 mm
EX designation in accordance with the ATEX Directive Ex II 2 D
EX designation in accordance with standard Ex tb IIIB T135°C Db IP64 X / Ex h IIIB T135°C Db X
Ta ambient temperature -20 °C ≤ Ta ≤ +40 °C
IA/IN 3,4
Time tA 1390 sek
Operating mode S1
PTC DIN 44082 M 80
EC type examination certificate TÜV-A 19 ATEX0102 X, IECEx EPS 19.0018X
Temperature class T135°C
Temperature class of insulating materials Th. Cl. 155 (F)
Packing unit 1 piece
Range C
GTIN (EAN) 4012799942054
Article number 0094.0205



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA7, high (dB(A))

–

–

–

–

–

–

–

–

60

LWA7= housing and free inlet sound power level in dB.

Product description

Productdescription

DZS 30/6 B Ex t

short description

Axial wall-mounted fan with steel wall ring, DN300, three-phase AC, explosion-proof, medium: dust

Product description

Product model

  • Three-phase AC motor
  • Ex II 2D Ex tb IIIB T135°C/T200°C Db IP64 X / Ex II 2D Ex h IIIB T135°C/T200°C Db X.
  • For usage temperatures of -20°C ≤ Ta ≤ +40°C.
  • Can be switched to ventilation or air extraction.

Special features

  • Axial wall fan, explosion-proof, medium: dust.
  • Explosion protection and approvals in accordance with ATEX and IECEx.
  • Qualified for all dusts of the Ex-group IIIA and IIIB.
  • MAICO Ex fans fulfil the safety requirements of European Directive 2014/34/EU for units and protective systems in potentially explosive atmospheres.
  • For zones 21 and 22.
  • Types of ignition protection: “t” - protection through housing and “c”- constructional safety.
  • IP 64 degree of protection.
  • Protective grille on the intake side, protection against accidental contact in accordance with DIN EN ISO 13857.
  • Can be fitted in any position.

Model series

  • EZQ / DZQ .. Ex t with square wall plate.
  • EZS / DZS .. Ex t with steel wall ring.

Impeller

  • Axial impeller made of conductive plastic.
  • Balance quality of the motor/impeller combination G 6.3 according to category BV-3 in accordance with ISO 14694.

Air flow direction

  • The air flow direction is marked.
  • Standard exhaust air mode, air flow direction with air drawn across motor.

Three-phase AC motor

  • Robust three-phase AC motor with ball bearings, maintenance-free.
  • Reversible.
  • Reversing mode: The volumetric flow is reduced by approx. 35 % with abnormal air flow direction.
  • S1 operating mode (continuous operation).
  • Speed control permitted with TR... transformer. Exception: DZ.. 35/2 B Ex...
  • The temperature in the fan motor is monitored by PTC thermistors. The PTC thermistors must be connected to a triggering system (safety device according to Directive 2014/34/EU), that separates the fan permanently from the power if the temperature gets too hot.
  • The MAICO PTC thermistor triggering device MVS 6 or TMS is recommended as the triggering system.

Electrical connection

  • EZ .. Ex ..: Connection cable, approx. 0.5 m long.
  • DZ .. Ex ..: Connection cable, approx. 1.7 m long.
  • Separate terminal box, explosion-proof, with cable screw connection.

DZQ/DZS Ex .. required safety technology.

  • A PTC thermistor triggering device is needed to fuse the DZQ/DZS-Ex units.
  • Maico provides the MVS 6 PTC thermistor triggering device and TMS for this purpose.
  • MVS 6 thermistor triggering device.
    • Independent complete system.
    • For monitoring the maximum motor temperature.
    • Type-examination tested according to Directive 2014/34/EU (ATEX).
    • Installation exclusively in non-explosive areas.
  • TMS thermistor machine protection relay.
    • For monitoring the maximum motor temperature.
    • Suitable for installation in control cabinets.
    • Type-examination tested according to Directive 2014/34/EU (ATEX).
    • Installation exclusively in non-explosive areas.

Special versions

  • Special voltages are available as special versions on request and at extra cost.
  • Information on operation at temperatures occasionally below -20°C available upon request.
  • Feasibility must be checked in each case.

Table of contents

Wiring diagram

DZS 30/6 B Ex t - Wiring diagram
