Axial wall fan
DZS 50/126 B
No longer available for deliveryManufacturer: MAICO
Axial wall fan with steel wall ring, DN 500, three-phase AC, pole-changeable
Application examples: Production facility, Workshop, Garage, Building container, Storage facility
Product data sheet

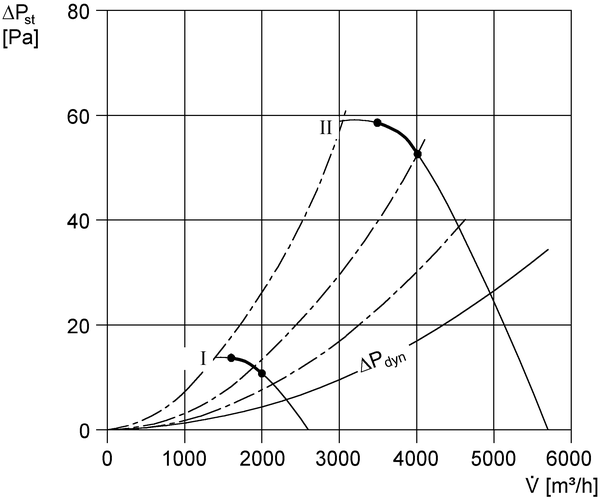

Characteristic curve
Dimensioned drawing
DZS 50/126 B - Dimensioned drawing [mm]
- Steel wall plate = EZQ/DZQ model
- Steel wall ring = EZS/DZS model
Technical data
DZS 50/126 B - Technical data
Accessories
DZS 50/126 B - Accessories
General accessories
Product description
Productdescription
DZS 50/126 B
short description
Axial wall fan with steel wall ring, DN 500, three-phase AC, pole-changeableProduct description
Brief description
- For surface mounting.
- Protective grille on the intake side, protection against accidental contact in accordance with DIN EN ISO 13857.
- 8-blade impellers made of glass fibre reinforced polyamide
- Thermal overload protection as a standard feature.
- Fans meet the requirements of the European Ecodesign Directive (EC) No.327/2011 Directive 2009/125/EC.
- Vibration-free running due to dynamically balanced impeller and motor (shaft-rotor), according to quality class 6.3, DIN ISO 1940, part 1.
- High efficiency on the ventilation side, low operating noise.
- Increased durability due to high-quality materials such as quiet ball bearings.
- Fans are maintenance-free.
- Installation for ventilation and air extraction possible in any position.
Air flow direction
- The air flow direction is marked.
- Standard exhaust air mode, air flow direction with air drawn across motor.
Motor
- Asynchronous motor.
- Speed controllable. Exception: types DZQ 40/2 B and DZS 40/2 B.
- Reversible. Exception: Fans with shaded-pole motors (...-E).
- Not suitable for ventilating steam-saturated air.
Three-phase AC motor
- DZQ/DZS type series.
- Asynchronous motor.
- Not suitable for ventilating steam-saturated air.
- Rated voltage 400 V, 50 Hz.
- IP 55 degree of protection. Exception for type DZQ ... D IP 54.
- Speed-controllable. Exception for type DZQ 40/2 B and DZS 40/2 B.
- Units can be switched in steps with an optional 5-step transformer.
- Reversible.
- Reversing mode: The volumetric flow is reduced by approx. 35 % with abnormal air flow direction.
- Thermal overload protection as a standard feature. Exception for type DZQ/DZS 25/4 D and pole-changeable axial duct fans, available on request.
- Potential-free terminal connections, which must be connected, e.g., to an MV 25-1 motor protection switch or the control circuit of a contactor.
- Pole-changeable fans: Ensure overload protection is guaranteed by a motor protection switch provided by the customer.
- Pole-changeable motors with speed ratios of 8/4 or 4/2 have a Dahlander pole-changing circuit.
Electrical connection
- On terminal block in end cover of the motor.
Safety information
- The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857, e.g., with Maico SG protective grille.
Special versions
- The following special versions are available on request, at an extra cost:
- Special voltages and frequencies.
- Single-phase motors with thermal contacts or PTC thermistor, potential-free terminal connection.
- Condensation drainage holes.
- Fans with enhanced anti-corrosion protection.
- Impellers made of aluminium.
- Information on operation at temperatures occasionally below -20°C available upon request.
- If operating with frequency converters, the factory must be consulted.
- Feasibility must be checked in each case.

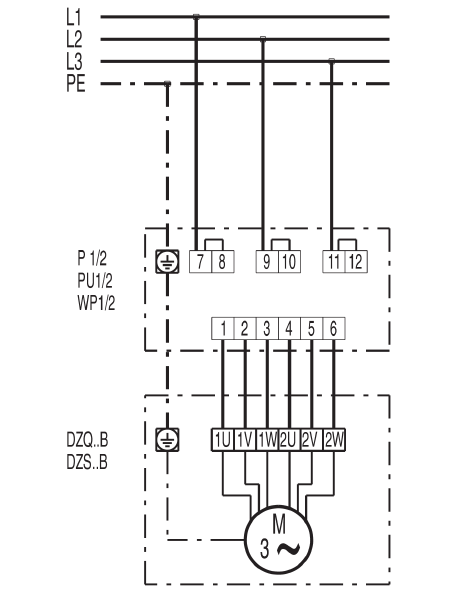

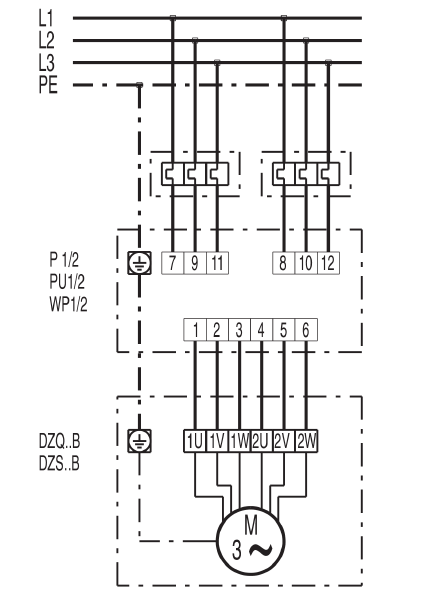

Wiring diagram
DZS 50/126 B - Wiring diagram
