Axial wall fan
DZQ 71/8 A
No longer available for delivery<data> <p class="FT">Manufacturer:</p> </data> MAICO
Axial wall fan with square wall plate, DN 710, three-phase AC
<data> <p class="FT">Application examples</p> </data> : Production site, Industrial building, Storage facility, Laboratory, Workshop
Product data sheet

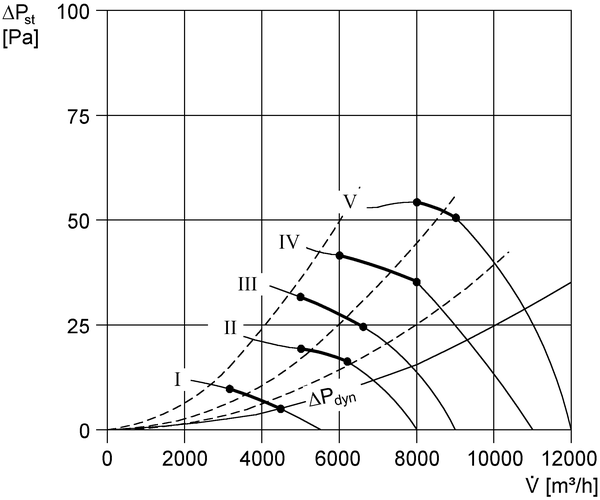

<data> <p class="FT">Characteristic curve</p> </data>
<data> <p class="FT">Dimensioned drawing</p> </data>
DZQ 71/8 A - Dimensioned drawing [mm]
A: 260 mm
B: 762 mm
C: 14 mm
D: 775 mm
E: 711 mm
F: 150 mm
G: 260 mm
B: 762 mm
C: 14 mm
D: 775 mm
E: 711 mm
F: 150 mm
G: 260 mm
DZQ 71/8 A - Dimensioned drawing [mm]
A: 260 mm
B: 762 mm
C: 14 mm
D: 775 mm
E: 711 mm
F: 150 mm
G: 260 mm
B: 762 mm
C: 14 mm
D: 775 mm
E: 711 mm
F: 150 mm
G: 260 mm
<data> <p class="FT">Technical data</p> </data>
DZQ 71/8 A - <data> <p class="FT">Technical data</p> </data>
<data> <p class="FT">Accessories</p> </data>
DZQ 71/8 A - <data> <p class="FT">Accessories</p> </data>
General accessories
| <data> <p class="FT">Product type</p> </data> | <data> <p class="FT">Name</p> </data> | <data> <p class="FT">Art. No.</p> </data> | <data> <p class="FT">Price*</p> <p class="FT">(EUR)</p> </data> | <data> <p class="FT">Action</p> </data> |
|---|---|---|---|---|
| Shutter | ARP 71 | 0151.0082 | <data> <p class="FT">on request</p> </data> | |
| Main switch, service switch | HS 3 | 0157.0736 | <data> <p class="FT">on request</p> </data> | |
| Rotary switch | DS 10 | 0157.0410 | <data> <p class="FT">on request</p> </data> | |
| Contactor | US 16 T | 0157.0769 | <data> <p class="FT">on request</p> </data> | |
| 5-step switch for TRE...S -2/ TR...S-2 5-step transformers | DSS 20 | 0157.0750 | <data> <p class="FT">on request</p> </data> | |
| Thermostat | THR 10-1 | 0157.0191 | <data> <p class="FT">on request</p> </data> | |
| Thermostat | TH 10 | 0157.0764 | <data> <p class="FT">on request</p> </data> | |
| Thermostat | TH 16 | 0157.0748 | <data> <p class="FT">on request</p> </data> | |
| Air flow monitor | LW 9 | 0157.0779 | <data> <p class="FT">on request</p> </data> | |
| Air quality controller | EAQ 10/1 Discontinued product | 0157.0777 | <data> <p class="FT">on request</p> </data> | |
| Thermostat | THR 10 No longer available for delivery | 0157.0774 | <data> <p class="FT">on request</p> </data> | |
| TR 2,5 No longer available for delivery | 0157.0381 | <data> <p class="FT">on request</p> </data> | ||
| 5-step transformer | TRV 2,5 No longer available for delivery | 0157.0717 | <data> <p class="FT">on request</p> </data> | |
| 5-step transformer, control cabinet | TR 2,5 S No longer available for delivery | 0157.0742 | <data> <p class="FT">on request</p> </data> | |
| Hygrostat | HY 5 No longer available for delivery | 0157.0123 | <data> <p class="FT">on request</p> </data> | |
| Hygrostat | HY 10 AP No longer available for delivery | 0157.0358 | <data> <p class="FT">on request</p> </data> | |
| Hygrostat | HY 10 UP No longer available for delivery | 0157.0357 | <data> <p class="FT">on request</p> </data> | |
| Motor protection switch | MV 25 No longer available for delivery | 0157.0712 | <data> <p class="FT">on request</p> </data> |
<data> <p class="FT">Product description</p> </data>
<data> <p class="FT">Product</p> <p class="FT">description</p> </data>
DZQ 71/8 A
<data> <p class="FT">short description</p> </data>
Axial wall fan with square wall plate, DN 710, three-phase ACProduct description
Features
- For air extraction.
- 9-blade impellers made of plastic. Dynamically balanced at two levels, in accordance with performance level 6.3, DIN ISO 1940.
- Protective grille on the intake side, yellow chromated, protection against accidental contact in accordance with DIN EN 294.
Air flow direction
For air extraction (clockwise rotation) only. Ventilation (anticlockwise operation) on request. See diagram.
- Air flow direction: with air drawn across the motor
- Rotational direction
- With air drawn across the motor.
Motor
- Asynchronous motor.
- For operation with frequency converter, see General Technical Information.
- Not suitable for ventilating steam-saturated air.
- Thermal overload protection as standard feature.
- Potential-free terminal connections, which must be connected to an MV 25 protective motor switch or the control circuit of a contactor.
Electrical connection
- To terminal block under the motor cover.
Safety instructions
- The fan can be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN 294 for fans with a free inlet.
Special versions
- The following special versions are available at extra cost on request:
- Special voltages and frequencies.
- Condensation drainage holes.
- Fans with enhanced anti-corrosion protection.
- Feasibility must be checked in each case.
<data> <p class="FT">Wiring diagram</p> </data>
DZQ 71/8 A - <data> <p class="FT">Wiring diagram</p> </data>
