Compact box

ECR 25-2 EC

Article number: 0080.0777
Manufacturer: MAICO
Compact supply air unit with integrated electric air heater, EC motor, filter and controller, DN 250
Application examples: Workplace, Doctor's practice, Day room, Fitness room, Restaurant
Product data sheet
ECR 25-2 EC IM0018067.PNG Compact supply air unit with integrated electric air heater, EC motor, filter and controller, DN 250

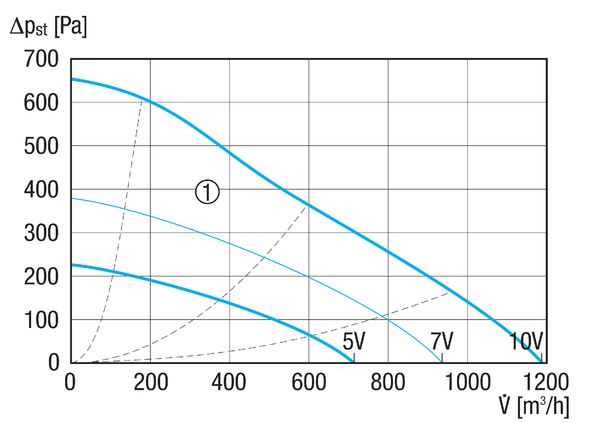

Characteristic curve

ECR 25-2 EC - Characteristic curve

  1. Auxiliary characteristics curves for control voltage 5 V, 7 V and 10 V

Dimensioned drawing

ECR 25-2 EC - Dimensioned drawing [mm]

Technical data

ECR 25-2 EC - Technical data

Article ECR 25-2 EC
Air flow volume 1.190 m³/h
Rotating speed 2.820 1/min
Speed controllable
Rated voltage 400 V
Frequency 50 Hz
Nominal output 9.200 W
Imax 14,5 A
Degree of protection IP 54
Degree of protection for motor IP 54
Insulation class F
Pole-changeable
Installation site Wall / ceiling
Installation position vertical / horizontal
Material Sheet steel, galvanised
Colour Silver
Weight 37,8 kg
Weight including packaging 38,2 kg
Filter class ISO ePM10 ≥ 50 % (M5)
Nominal size 250 mm
Width 538 mm
Height 406 mm
Depth 760 mm
Width with packaging 543 mm
Height with packaging 411 mm
Depth with packaging 810 mm
Airstream temperature at IMax 40 °C
Heater power rating 9.000 W
Packing unit 1 piece
Range E
GTIN (EAN) 4012799807773
Article number 0080.0777



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, S1 (dB)

39

55

57

48

48

52

51

45

61

LWA2, S2 (dB)

38

54

56

48

47

51

50

44

60

LWA2, S3 (dB)

35

48

53

44

44

48

49

43

57

LWA2, S4 (dB)

33

43

49

45

41

45

40

27

53

LWA2, S5 (dB)

35

44

51

48

43

47

42

31

55

LWA5, S1 (dB)

44

68

72

65

65

61

57

50

75

LWA5, S2 (dB)

43

67

71

64

64

60

57

49

74

LWA5, S3 (dB)

38

62

68

62

62

58

54

46

71

LWA5, S4 (dB)

36

55

64

64

63

60

55

46

69

LWA5, S5 (dB)

37

57

67

66

66

63

59

51

72

LWA6, S1 (dB)

42

62

67

62

64

66

60

54

72

LWA6, S2 (dB)

41

61

66

61

63

66

60

53

71

LWA6, S3 (dB)

38

57

64

59

61

64

58

50

69

LWA6, S4 (dB)

34

51

63

61

62

66

60

51

70

LWA6, S5 (dB)

38

53

67

63

65

69

64

55

73

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Accessories

ECR 25-2 EC - Accessories

Specific accessories

General accessories

Product description

Productdescription

ECR 25-2 EC

short description

Compact supply air unit with integrated electric air heater, EC motor, filter and controller, DN 250

Product description

Features

  • Compact supply air unit with filter, electric air heater and control.
  • stepless fan control: Constant volumetric flow/ constant pressure/ constant speed/ temperature/ CO2 controlled.
  • Operating mode and setpoint temperature can be selected directly on the control panel. Timer with time programme and filter monitoring integrated in the control panel.
  • The control is designed in such a way that an exhaust air fan (optional) can also be integrated. Thus, a complete ventilation system with supply and exhaust air can be installed with the simplest of means.
  • Error monitoring.
  • Possibility of connecting temperature sensors and/or air quality sensors.
  • Modbus interface for connection to building control system.
  • Extended menu structure with several levels and authorization concept.
  • Material: Sheet steel, galvanised.
  • With sound-absorbing rock wool, laminated with silk glass, and double-walled housing for minimum noise level and the best thermal insulation.
  • Air filter replacement in seconds without tools.
  • Impeller with blades curved to the rear for optimised efficiency.
  • Removable cover with clip-locks.
  • Inlet and outlet side connection socket for direct installation in ventilation ducts.
  • Time-saving mounting thanks to mounting tracks.
  • With automatic fan overrun to protect against overheating.
  • Can be switched on/off using external potential-free contact.
  • IP 33 degree of protection. Exception: ECR 25-2 EC and ECR 31-2 EC IP 54.

Electric heating register

  • Existing housing unit, provided with protective grilles on both sides
  • Housing unit can be pulled out of the housing by loosening 4 fixing screws.
  • Mounted in the housing downstream of the fan, as seen in the air flow direction.
  • Closed tubular radiator made of stainless steel.
  • Temperature sensor arranged downstream of the heat register in the flow direction with radiation protection plate.
  • 3-step power control of the electric heating register.
  • Safety temperature limiters switch off the electric heating register at a temperature of 75°C in the event of a fault. After the safety temperature limiters have been triggered, they must be reset manually.

Control panel

  • Separate control panel, incl. control cable, is included in the scope of delivery.
  • Operating mode and setpoint temperature can be selected directly on the control panel.
  • Timer with time programme and filter monitoring integrated in the control panel.

Fan

  • Motor/impeller combination.
  • EC motor.
  • Impeller mounted perpendicular to the air direction.
  • Impeller with backward curved blades.

Motor

  • EC motor with 3 freely adjustable speed levels from 0-100 %.
  • Speed-controllable.

Installation information

  • Four clip-locks for fastening the housing cover.

Table of contents

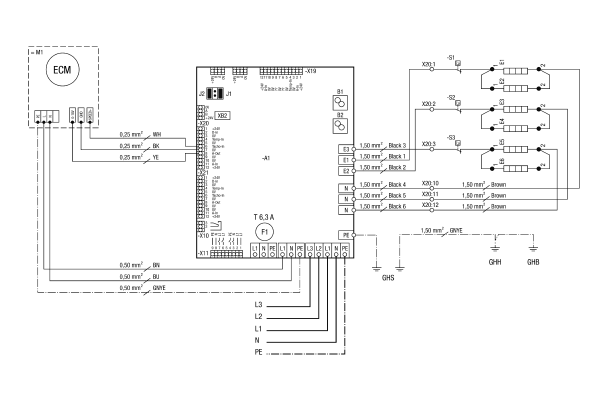

Wiring diagram

ECR 25-2 EC - Wiring diagram

M1 supply air fan

J1 Termination BDT

J2 Termination Modbus

B1 Filter monitoring of supply air

B2 Volumetric flow of supply air

GHS housing Switch box

GHH housing Heating

GHB housing Box

Power supply / 400V / 3- / N / 50Hz

Fuse, external 16A



Predecessor - successor

ECR 25-2 EC - Predecessor

Product type Name Art. No. Action
Compact box ECR 25 EC No longer available for delivery 0080.0577
