Diagonal fan

EDR 25

Article number: 0080.0656
Manufacturer: MAICO
Diagonal fan for duct installation, DN 250
Application examples: Machine extraction unit, Workplace air extraction system, Production site, Storage facility, Laboratory
Product data sheet
EDR 25 IM0011737.PNG Diagonal fan for duct installation, DN 250
Back
  • On the notes
EDR 25
EDR 31
EDR 35
EDR 40
EDR 45
EDR 50
EDR 56
EDR 63
EDR 71

Characteristic curve

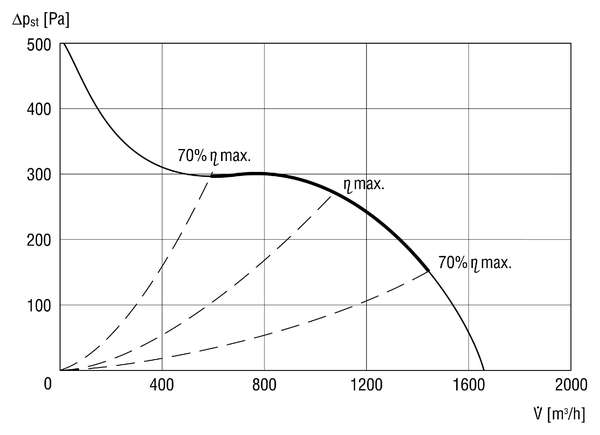

EDR 25 - Characteristic curve

Dimensioned drawing

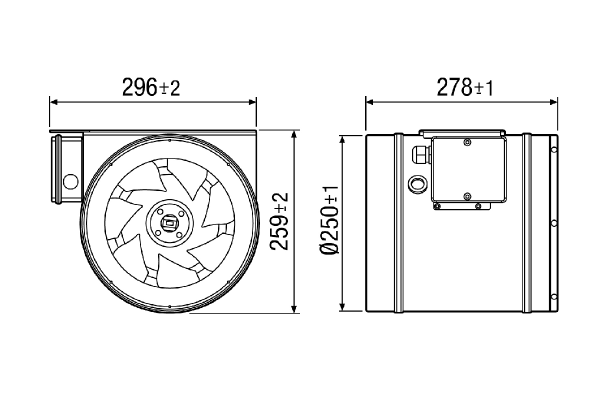

EDR 25 - Dimensioned drawing [mm]

Technical data

EDR 25 - Technical data

Article EDR 25
Air flow volume 1.700 m³/h
Air volumenom 1.119 m³/h / in opt. efficiency
Pressure pfs, nom 274 Pa / in opt. efficiency
Rotating speed nnom 2.824 1/min / in opt. efficiency
Rotating speed 2.890 1/min
Impeller type diagonal
Speed controllable ✔
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz
Nominal output 170 W / in opt. efficiency
Inom 0,8 A / in opt. efficiency
Imax 1 A
Degree of protection IP X4
Insulation class F
Mains cable 3 x 1,5 mm²
Installation position vertical / horizontal
Housing material Sheet steel, galvanised
Colour Silver grey
Weight 6,5 kg
Weight including packaging 6,95 kg
Nominal size 250 mm
Width 296 mm
Height 259 mm
Depth 278 mm
Width with packaging 310 mm
Height with packaging 270 mm
Depth with packaging 305 mm
Airstream temperature at IMax 55 °C
Ambient temperature 55 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799806561
Article number 0080.0656
Article EDR 25
Total efficiency η 44,9 %
Measurement category A
Efficiency category static
Efficiency level N 63,4
VSD necessary No
Year of manufacture see rating plate
Manufacturer’s name / official registration number / manufacturer's place of establishment Maico Elektroapparate-Fabrik GmbH / Freiburg registration court, HRB 601233 / Villingen-Schwenningen
Art. No. 0080.0656
PBEP / Air volumeBEP / Pfs, BEP 0,174 kW / 1.119 m³/h / 274 Pa
nBEP 2.824 1/min
Specific ratio ≈ 1
Information about dismantling and disposal see mounting instructions
Information about installation, operation and repairs see mounting instructions
Objects used to measure efficiency which are not described by the measurement category -
IBEP 0,8 A
Sound power levelLWA5 71 dB(A)



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, Level 2 (dB(A))

–

38

44

45

48

46

41

37

53

LWA2, Level 3 (dB(A))

–

37

46

43

47

46

42

37

52

LWA2, Level 4 (dB(A))

–

36

47

45

48

47

43

38

53

LWA2, Level 5 (dB(A))

–

38

46

46

49

49

46

40

55

LWA5, Level 2 (dB(A))

–

57

61

70

69

66

62

55

74

LWA5, Level 3 (dB(A))

–

38

54

62

66

66

64

54

71

LWA5, Level 4 (dB(A))

–

35

55

61

66

67

68

56

72

LWA5, Level 5 (dB(A))

–

39

59

65

68

69

71

60

75

LWA6, Level 2 (dB(A))

–

58

65

72

75

71

64

57

78

LWA6, Level 3 (dB(A))

–

41

64

68

71

69

64

54

75

LWA6, Level 4 (dB(A))

–

39

66

70

72

70

67

56

77

LWA6, Level 5 (dB(A))

–

41

69

72

74

73

70

59

79

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Measured at optimised efficiency

Product description

Productdescription

EDR 25

short description

Diagonal fan for duct installation, DN 250

Product description

Features

  • For direct installation in ducts.
  • Conveying medium to large air volumes against high resistance.
  • Compact dimensions, low weight and integrated mounting plate facilitate quick installation.
  • The high efficiency reduces operating costs: Purchase price amortises after just one year, depending on operating time.
  • Suction nozzle for low-turbulence air intake.
  • Diagonal impeller with downstream stator.
  • Profiled impeller and stator blades ensure optimum air flow.
  • With diffuser to increase the static pressure.
  • Gap sealing between suction and discharge chamber reduces overflow losses.
  • Meridian flow pattern prevents turbulence.
  • IP X4 degree of protection. Exception EDR 45 to EDR 56 IP 54.
  • Temperature class F.
  • Material: Sheet steel, galvanised.

AC motor

  • Electrical connection via external terminal box.
  • Speed control possible by means of transformers.
  • Thermal overload protection as a standard feature.
  • Depending on the version, the connections of the thermal contacts must be connected to an MVE 10-1 motor protection switch or the control circuit of a contactor.

Table of contents

Wiring diagram

EDR 25 - Wiring diagram

EDR 25, EDR 31, EDR 35 and EDR 40

TK - Thermal contact
