Sound-insulated ventilation box
EKR 20-2
Manufacturer: MAICO
Sound-insulated exhaust air box, DN 200, alternating current
Application examples: Extraction hood, Canteen kitchen, Workplace air extraction system, Machine extraction unit
Product data sheet

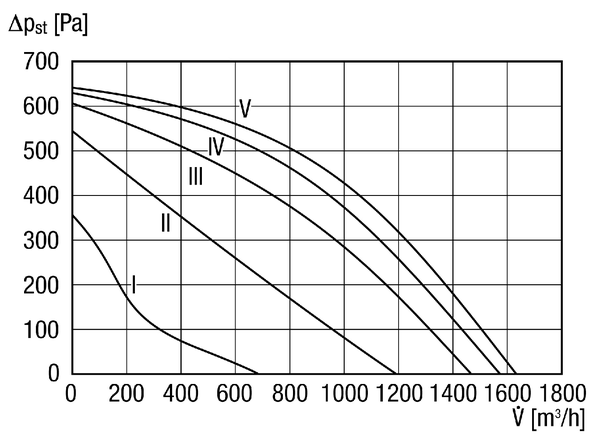

Characteristic curve

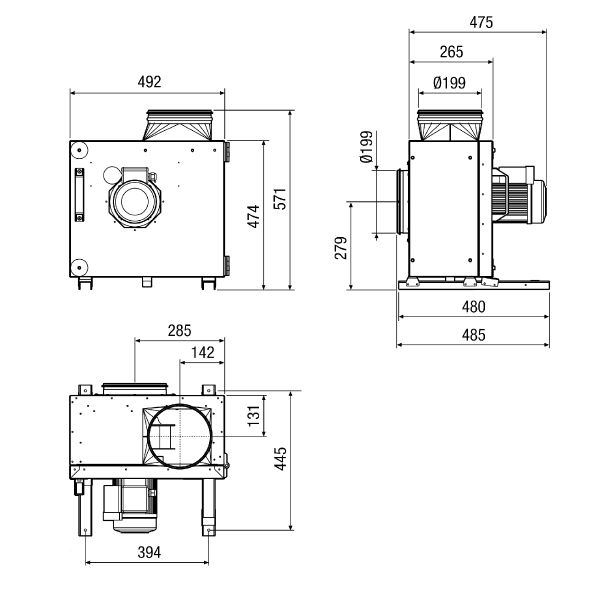

Dimensioned drawing
EKR 20-2 - Dimensioned drawing [mm]
Technical data
EKR 20-2 - Technical data
Accessories
EKR 20-2 - Accessories
Specific accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Fixing cuff | ELR 20 | 0092.0112 | on request | |
| Weather protection roof | WSD 20-40 | 0149.0083 | on request |
General accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Protective grille | SGR 20 | 0150.0126 | on request | |
| Tubular sound absorber | RSR 20 Remaining parts | 0092.0316 | on request | |
| Tubular sound absorber | RSR 20/50 Remaining parts | 0092.0326 | on request | |
| Tubular sound absorber | RSR 20-1 | 0092.0597 | on request | |
| Tubular sound absorber | RSR 20/50-1 | 0092.0604 | on request | |
| Air filter | TFE 20-4 | 0149.0078 | on request | |
| Air filter | TFE 20-7 | 0149.0053 | on request | |
| Motor protection switch | MVE 10-1 | 0157.1657 | on request | |
| 5-step transformer | TRE 3,3-2 | 0157.0159 | on request | |
| 5-step transformer, control cabinet | TRE 3,3 S-2 | 0157.0163 | on request | |
| 5-step switch for TRE...S -2/ TR...S-2 5-step transformers | ESS 20 | 0157.0749 | on request | |
| Motor protection switch | MVE 10 No longer available for delivery | 0157.0711 | on request | |
| Air filter | TFE 20-5 No longer available for delivery | 0149.0062 | on request |
Product description
Productdescription
EKR 20-2
short description
Sound-insulated exhaust air box, DN 200, alternating currentProduct description
Features
- The series was developed especially for the tough operating conditions of a kitchen exhaust air fan.
- Double-walled housing made of galvanised sheet steel, for high demands and especially low noise levels.
- Supply of medium to large air volumes at high resistances.
- Not sensitive to hot airstreams of up to 120° C.
- Inlet and outlet side connection sockets for direct installation in ventilation ducts, with double sealed lips.
- With mounting track and 4 vibration dampers.
- Fan unit can be swivelled out for cleaning and maintenance.
- Motor located outside of the air flow.
- With condensation drain if the exhaust socket points upwards.
- Strong centrifugal impellers with backward curved blades.
Motor
- Motor can be regulated by means of voltage reduction through transformers.
- Thermal contacts are routed to terminals.
- Full motor protection via external MAICO MVE 10 triggering device.
- Degree of protection IP X4 with closed housing cover and inlet and outlet side duct connection.
- Speed-controllable.
Mounting instructions
- Installation with upward, right-hand or left-hand exhaust sockets.
- If the unit is mounted with the exhaust socket pointing to the left or the right, the service door must be altered by the customer.
Electrical connection
- Externally fitted terminal box with cable screw-connection.
Safety instructions
- The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet or outlet. To do this, fit a protective grille.
Wiring diagram
EKR 20-2 - Wiring diagram
EKR.. -2 sound-insulated exhaust air box with MVE 10 motor protection switch and TRE ... 5-step transformer
Downloads / Videos
EKR 20-2 - Downloads / Videos
Predecessor - successor
EKR 20-2 - Predecessor
| Product type | Name | Art. No. | Action |
|---|---|---|---|
| Sound-insulated ventilation box | EKR 20 No longer available for delivery | 0080.0919 |
