Centrifugal roof fan
ERD 25/4 B
No longer available for deliveryManufacturer: MAICO
No longer available for delivery
Centrifugal roof fan, vertical air outlet, DN 250, single-phase AC
Application examples: Production facility, Workplace, Commercial premises, Industrial building, Restaurant
Product data sheet

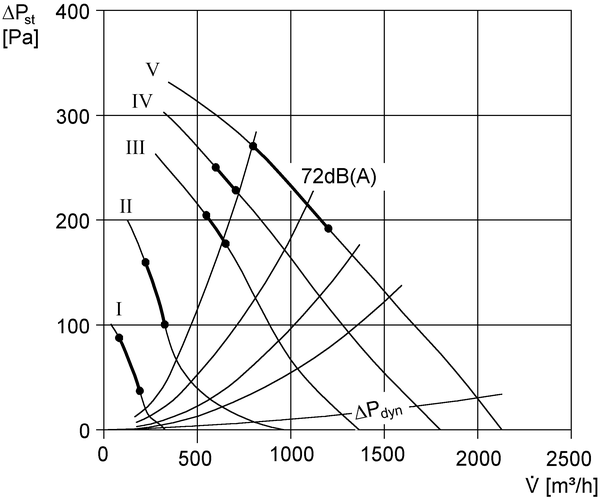

Characteristic curve
Dimensioned drawing
ERD 25/4 B - Dimensioned drawing [mm]
- Clear width
- External duct diameter
- Number of holes: 6
Technical data
ERD 25/4 B - Technical data
Accessories
ERD 25/4 B - Accessories
General accessories
Product description
Productdescription
ERD 25/4 B
short description
Centrifugal roof fan, vertical air outlet, DN 250, single-phase ACProduct description
Features
- Attractive housing made of galvanised sheet-steel.
- Cover easily detachable for cleaning purposes.
- Galvanized protective grille on the discharge side, protection against accidental contact in accordance with DIN EN ISO 13857.
- Sturdy eyebolts enable transport by crane.
- Impeller with blades curved to the rear, dynamically balanced at two levels, in accordance with performance level 6.3, DIN ISO 1940.
- Impeller made of glass-fibre filled polypropylene.
AC motor
- ERD model series.
- Rated voltage 230 V, 50 Hz.
- Thermal overload protection as standard feature.
- Capacitor motor with operating capacitor ready for connecting.
Electrical connection
- To terminal block in the service switch.
Safety instructions
- The fan can be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN 13857 for fans with a free inlet.
Special versions
- The following special versions are available at extra cost on request:
- Special voltages and frequencies.
- Single-phase motors with thermal contacts or PTC thermistor, with potential-free terminal connections.
- Fans with enhanced anti-corrosion protection.
- Information on operation at temperatures occasionally below -20°C available upon request.
- If operating with frequency converters, the factory must be consulted.
- Feasibility must be checked in each case.
