Centrifugal roof fan

DRD 35/6 B

No longer available for delivery
Article number: 0087.0107
Manufacturer: MAICO
Centrifugal roof fan, vertical air outlet, DN 355, three-phase AC
Application examples: Production facility, Workplace, Commercial premises, Industrial building, Restaurant
Product data sheet
DRD 35/6 B IM0009963.PNG Centrifugal roof fan, vertical air outlet, DN 355, three-phase AC
Back
  • On the notes
ERD 35/6 B
DRD 35/6 B
DRD 35/4 B
DRD 35/64 B

Characteristic curve

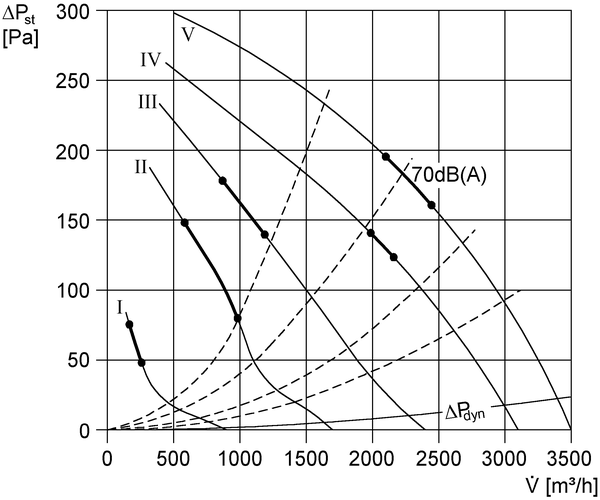

DRD 35/6 B - Characteristic curve

Dimensioned drawing

DRD 35/6 B - Dimensioned drawing [mm]

  1. Clear width
  2. External duct diameter
  3. Number of holes: 8

Technical data

DRD 35/6 B - Technical data

Article DRD 35/6 B
Air flow volume 3.500 m³/h
Rotating speed 930 1/min
Speed controllable ✔
Reversing capacity −
Type of voltage Three-phase AC
Rated voltage 400 V
Nominal output 345 W
Inom 0,8 A
Imax 1,1 A
Degree of protection IP 55
Insulation class F
Pole-changeable −
Mains cable 5 x 1,5 mm²
Installation site Roof
Installation position vertical
Material Sheet steel, galvanised
Weight 54
Weight including packaging 60 kg
Shutter integrated
Type of shutter Airstream-operated opening/closing
Nominal size 355 mm
Width with packaging 830 mm
Height with packaging 635 mm
Depth with packaging 835 mm
Airstream temperature at nominal current -20 °C up to 60 °C
Airstream temperature at IMax 60 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799871071
Article number 0087.0107



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, S1 (dB(A))

34

33

38

45

47

49

25

12

53

LWA5, S2 (dB(A))

45

45

56

59

51

58

43

25

63

LWA5, S3 (dB(A))

48

61

58

72

58

53

62

38

73

LWA5, S4 (dB(A))

50

66

64

66

60

58

66

46

72

LWA5, S5 (dB(A))

51

69

67

67

63

61

67

52

74

LWA8, S1 (dB(A))

33

38

46

47

50

51

27

59

55

LWA8, S2 (dB(A))

47

48

61

60

56

56

45

51

65

LWA8, S3 (dB(A))

50

62

59

71

65

59

62

55

73

LWA8, S4 (dB(A))

53

66

66

68

68

63

64

27

74

LWA8, S5 (dB(A))

54

70

68

71

71

67

67

17

77

LWA5= free inlet sound power level in dB.

LWA8= housing and free outlet sound power level in dB.
