Sound-insulated ventilation box

DSR 40-2 S

No longer available for delivery
Article number: 0080.0623
Manufacturer: MAICO
Sound-insulated ventilation box with swivelling fan, DN 400, three-phase AC
Application examples: Commercial premises, Showroom, Office, Foreman's office, Changing room
Product data sheet
DSR 40-2 S IM0009647.PNG Sound-insulated ventilation box with swivelling fan, DN 400, three-phase AC

Characteristic curve

DSR 40-2 S - Characteristic curve

Dimensioned drawing

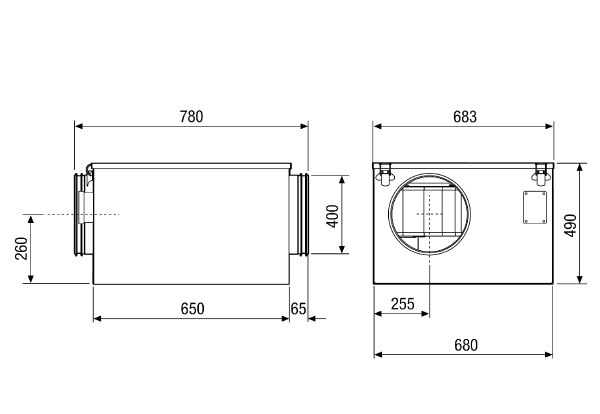

DSR 40-2 S - Dimensioned drawing [mm]

Technical data

DSR 40-2 S - Technical data

Article DSR 40-2 S
Air flow volume 3.120 m³/h
Rotating speed 1.355 1/min
Speed controllable
Type of voltage Three-phase AC
Rated voltage 400 V
Nominal output 510 W
Inom 1,18 A
Imax 1,3 A
Degree of protection IP X4
Mains cable 5 x 1,5 mm²
Housing material Sheet steel, galvanised
Weight 45,4 kg
Weight including packaging 48,5 kg
Swivelling fan
Nominal size 400 mm
Width with packaging 820 mm
Height with packaging 530 mm
Depth with packaging 695 mm
Airstream temperature at nominal current -20 °C
Airstream temperature at IMax 60 °C
Ambient temperature -20 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799990420
Article number 0080.0623



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, S5 (dB(A))

60

64

53

54

54

49

42

66

LWA6, S5 (dB(A))

64

70

70

69

66

59

53

76

LWA2, S5 (dB(A))

54

57

45

40

37

36

31

59

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Accessories

DSR 40-2 S - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Sound insulation set KSD-D 0092.0521 on request
  • On the notes

General accessories

Product description

Productdescription

DSR 40-2 S

short description

Sound-insulated ventilation box with swivelling fan, DN 400, three-phase AC

Product description

Features

  • Optimised efficiency, low maintenance costs.
  • Removable housing cover with clip-locks.
  • Inlet and outlet side connection couplings for direct installation in ventilation ducts.
  • With sound absorbing rock wool, laminated with silk glass, to meet the increased requirements of especially low noise levels.

Air flow direction

  • The airsteam direction is indicated by an arrow marked on the housing.

Motor

  • External rotor-capacitor motor.
  • Robust motor with ball bearings, maintenance-free.
  • The motor's standard rubber mounting prevents vibrations being transferred to the housing.
  • Temperature classes B or F.
  • IP X4 degree of protection with closed housing cover.

AC motor

  • Thermal overload protection as a standard feature.

Three-phase AC motor

  • Potential-free terminal connections, which must be connected to an MV 25 protective motor switch or the control circuit of a contactor.

Mounting instructions

  • Can be fitted in any position.

Electrical connection

  • Terminal box at front.

Safety instructions

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet or outlet. To do this, fit a protective grille.

Table of contents

Wiring diagram

DSR 40-2 S - Wiring diagram



Duct fan with DRH 25-9R, DRH 31-12R, DRH 35-12R and DRH 40-12R electric air heaters

S1 - system on

S - sensor

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

DRH...R electric air heater: DRH 25-9R, DRH 31-12R, DRH 35-12R, DRH 40-12R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL60P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P



Predecessor - successor

DSR 40-2 S - Predecessor

Product type Name Art. No. Action
Sound-insulated ventilation box DSR 40 S No longer available for delivery 0080.0233
