Brine pump controller

EW-S

No longer available for delivery
Article number: 0157.0203
Manufacturer: MAICO
Brine pump regulator for the brine geothermal heat exchanger, automatically regulates summer and winter... more information
Application examples: Single-family houses in combination with ventilation units with heat recovery, Low-energy and passive houses
Product data sheet

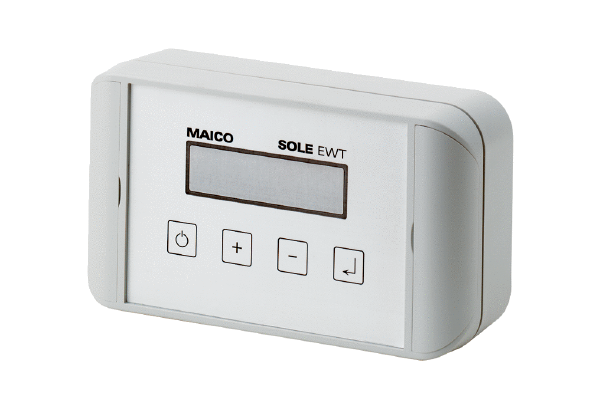

EW-S IM0009853.PNG Brine pump regulator for the brine geothermal heat exchanger, automatically regulates summer and winter operation, with 2 temperature sensors for outside air temperature before and after the brine-air heat exchanger, predefined factory settings and fault display.
Back
  • On the notes
EW-K 160
EW-K 200
EW-K 225
EW-S
EW-D
EW-Z
EW-G

Characteristic curve

Dimensioned drawing

Technical data

EW-S - Technical data

Article EW-S
Weight 0,4 kg
Weight including packaging 0,565 kg
Width 160 mm
Height 110 mm
Depth 60 mm
Width with packaging 230 mm
Height with packaging 130 mm
Depth with packaging 185 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799572039
Article number 0157.0203

Accessories of

EW-S - Accessories of

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Brine-air heat exchanger EW-K 225 No longer available for delivery 0192.0520 on request
  • On the notes

Product description

Productdescription

EW-S

short description

Brine pump regulator for the brine geothermal heat exchanger, automatically regulates summer and winter operation, with 2 temperature sensors for outside air temperature before and after the brine-air heat exchanger, predefined factory settings and fault display.

Product description

  • Automatically controls summer and winter operation.
  • No seasonal operation required.
  • With fault display.
  • Switches the pump on at regular intervals, to avoid sticking.
  • With predefined factory settings.
  • With 2 temperature sensors for outside air temperature before and after the water-air heat exchanger.

Table of contents

Wiring diagram

EW-S - Wiring diagram
