Axial duct fan
DZR 40/84 B
Manufacturer: MAICO
Axial duct fan, DN 400, three-phase AC, pole-changeable
Application examples: Machine extraction unit, Showroom, Foreman's office, Workshop, Production site
Product data sheet

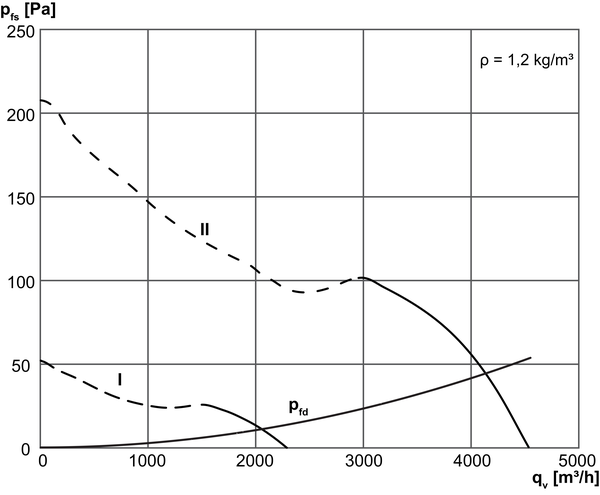

Characteristic curve
Dimensioned drawing
DZR 40/84 B - Dimensioned drawing [mm]
Number of flange holes: 12
Technical data
DZR 40/84 B - Technical data
Accessories
DZR 40/84 B - Accessories
General accessories
Product description
Productdescription
DZR 40/84 B
short description
Axial duct fan, DN 400, three-phase AC, pole-changeableProduct description
Three-phase AC model
- Axial duct fan, in three-phase AC version.
Brief description
- Duct sleeve made of galvanised sheet steel, with flanges on both sides.
- 8-blade impellers made of glass fibre reinforced polyamide
- Flange holes in accordance with DIN EN 12220:1998.
- DZR 56/6 B and DZR 56/4 B: Flange holes in accordance with DIN EN 12220: 1998.
- To avoid transmission of vibrations to the duct system: Use flexible couplings, feet and vibration dampers.
- Thermal overload protection as a standard feature.
- Fans meet the requirements of the European Ecodesign Directive (EC) No.327/2011 Directive 2009/125/EC.
- Vibration-free running due to dynamically balanced impeller and motor (shaft-rotor), according to quality class 6.3, DIN ISO 1940, part 1.
- High efficiency on the ventilation side, low operating noise.
- Increased durability due to high-quality materials such as quiet ball bearings.
- Fans are maintenance-free.
- Can be fitted in any position.
Air flow direction
- The air flow direction is marked.
- Standard exhaust air mode, air flow direction with air drawn across motor.
Three-phase AC motor
- DZR type series.
- Asynchronous motor.
- Not suitable for ventilating steam-saturated air.
- Rated voltage 400 V, 50 Hz.
- High degree of protection IP 55. Exception DZR... D IP 54.
- Speed-controllable. Exception for type DZR 40/2 B.
- Units can be switched in steps with an optional 5-step transformer.
- Reversible.
- Reversing mode: The volumetric flow is reduced by approx. 35 % with abnormal air flow direction.
- Thermal overload protection as a standard feature. Exception for type DZR 25/4 D and pole-changeable axial duct fans, available on request.
- Potential-free terminal connections, which must be connected, e.g., to an MV 25-1 motor protection switch or the control circuit of a contactor.
- Pole-changeable fans: Ensure overload protection is guaranteed by a motor protection switch provided by the customer.
Electrical connection
- Terminal box with cable sleeves fitted on the outside.
Safety information
- The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857, e.g., with Maico SG protective grille.
Special versions
- The following special versions are available on request, at an extra cost:
- Special voltages and frequencies.
- PTC thermistor, potential-free terminal connection.
- Condensation drainage holes.
- Fans with enhanced anti-corrosion protection.
- Impellers made of aluminium.
- Information on operation at temperatures occasionally below -20°C available upon request.
- If operating with frequency converters, the factory must be consulted.
- Feasibility must be checked in each case.
Wiring diagram
DZR 40/84 B - Wiring diagram
Downloads / Videos
DZR 40/84 B - Downloads / Videos
Predecessor - successor
DZR 40/84 B - Predecessor
| Product type | Name | Art. No. | Action |
|---|---|---|---|
| Axial duct fan | DZL 40/84 B No longer available for delivery | 0086.0097 |
