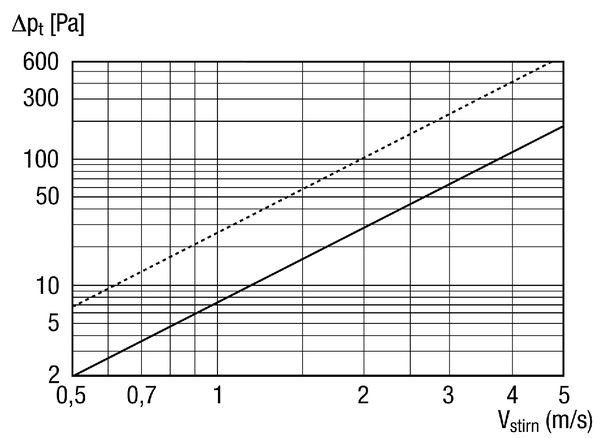

LZP-R 25 - Characteristic curve
Dashed line: Pressure loss, drawing in
Solid line: Pressure loss, pushing
External grille
LZP-R 25
No longer available for deliveryManufacturer: MAICO
Weather protection grille with reduced pressure loss, galvanised sheet steel, channel dimension 500 x 300 mm
Product data sheet
Characteristic curve
Dimensioned drawing
LZP-R 25 - Dimensioned drawing [mm]
A: 285 mm
B: 175 mm
C: 735 mm
D: 779 mm
E: 760 mm
F: 310 mm
G: 750 mm
H: 300 mm
I: 500 mm
J: 250 mm
B: 175 mm
C: 735 mm
D: 779 mm
E: 760 mm
F: 310 mm
G: 750 mm
H: 300 mm
I: 500 mm
J: 250 mm
Technical data
LZP-R 25 - Technical data
Accessories of
LZP-R 25 - Accessories of
is a general accessory of
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Channel fan | EPK, DPK channel fans, 500 × 300 | - | - | - |
Product description
Productdescription
LZP-R 25
short description
Weather protection grille with reduced pressure loss, galvanised sheet steel, channel dimension 500 x 300 mmProduct description
- Weather protection grille for ventilation and air extraction constructed to very high quality standard.
- With channel cross-section extension as standard to reduce pressure losses.
- With fixed rain-repellent weather protection lamella.
- With frame for mounting in masonry walls.
- With 20 mm flange frame and slots for direct connection with channel.
- Protective grille in accordance with DIN EN ISO 13857.
Wiring diagram
LZP-R 25 - Wiring diagram
