ECA 120 small room fans

Proven design and powerful

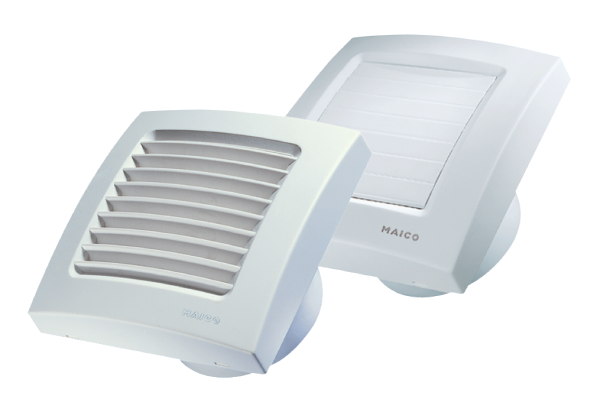

ECA 120 small room fans IM0013765.PNG Proven design and powerful
Back

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

ArticleECA 120ECA 120 VZECA 120 FECA 120 PECA 120 24 VECA 120 KECA 120 KVZECA 120 KFECA 120 KP
 Product detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct details
Notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • Into the basket
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • Into the basket
Article

ECA 120

With fixed internal grille

  • On the notes

ECA 120 VZ

With fixed internal grille and time delay switch

  • On the notes

ECA 120 F

With fixed internal grille and light control

  • On the notes

ECA 120 P

With fixed internal grille and pull-cord switch

  • On the notes

ECA 120 24 V

With fixed internal grille for safety extra low voltage

  • On the notes

ECA 120 K

With electrical internal shutter

  • On the notes

ECA 120 KVZ

With electrical internal shutter and time delay switch

  • On the notes

ECA 120 KF

With electrical internal shutter and light control

  • On the notes

ECA 120 KP

With electrical internal shutter and pull-cord switch

  • On the notes
ArticleECA 120ECA 120 VZECA 120 FECA 120 PECA 120 24 VECA 120 KECA 120 KVZECA 120 KFECA 120 KP
Product detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct details
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • Into the basket
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • Into the basket
Product type Small room fan Small room fan Small room fan Small room fan Small room fan Small room fan Small room fan Small room fan Small room fan
Article number: 0084.0006 0084.0007 0084.0008 0084.0034 0084.0019 0084.0009 0084.0010 0084.0011 0084.0035
Model

Standard model

Time delay switch

Light control

Pull-cord switch

Safety extra-low voltage (SELV)

Standard model

Time delay switch

Light control

Pull-cord switch

Air flow volume

170 m³/h

170 m³/h

170 m³/h

170 m³/h

170 m³/h

180 m³/h

180 m³/h

180 m³/h

180 m³/h

Rotating speed

2.600 1/min

2.600 1/min

2.600 1/min

2.600 1/min

2.600 1/min

2.600 1/min

2.600 1/min

2.600 1/min

2.600 1/min

Speed controllable

✔

-

-

-

-

✔

-

-

-

Reversing capacity

-

-

-

-

-

-

-

-

-

Type of voltage

Alternating current

Alternating current

Alternating current

Alternating current

Alternating current

Alternating current

Alternating current

Alternating current

Alternating current

Rated voltage

230 V

230 V

230 V

230 V

24 V

230 V

230 V

230 V

230 V

Frequency

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

Power consumption

19 W

19 W

19 W

19 W

19 W

19 W

19 W

19 W

19 W

Imax

0,14 A

0,14 A

0,14 A

0,14 A

1,2 A

0,14 A

0,14 A

0,14 A

0,14 A

Degree of protection

IP 45

IP 45

IP 45

IP 23

IP 45

IP 34

IP 34

IP 34

IP 23

Mains cable

3 x 1,5 mm²

5 x 1,5 mm²

3 x 1,5 mm²

3 x 1,5 mm²

3 x 1,5 mm²

3 x 1,5 mm²

5 x 1,5 mm²

3 x 1,5 mm²

3 x 1,5 mm²

Installation site

Wall

Wall

Wall

Wall

Wall

Wall

Wall

Wall

Wall

Type of installation

Surface-mounted

Surface-mounted

Surface-mounted

Surface-mounted

Surface-mounted

Surface-mounted

Surface-mounted

Surface-mounted

Surface-mounted

Installation position

any

any

any

any

any

any

any

any

any

Material

Synthetic material

Synthetic material

Synthetic material

Synthetic material

Synthetic material

Synthetic material

Synthetic material

Synthetic material

Synthetic material

Colour

Traffic white, similar to RAL 9016

Traffic white, similar to RAL 9016

Traffic white, similar to RAL 9016

Traffic white, similar to RAL 9016

Traffic white, similar to RAL 9016

Traffic white, similar to RAL 9016

Traffic white, similar to RAL 9016

Traffic white, similar to RAL 9016

Traffic white, similar to RAL 9016

Weight

0,9 kg

0,9 kg

0,9 kg

0,9 kg

0,9 kg

0,9 kg

0,9 kg

0,9 kg

0,9 kg

Weight including packaging

1,05 kg

1,06 kg

1,07 kg

1,06 kg

1,06 kg

1,08 kg

1,06 kg

1,06 kg

1,06 kg

Nominal size

120 mm

120 mm

120 mm

120 mm

120 mm

120 mm

120 mm

120 mm

120 mm

Width

171 mm

171 mm

171 mm

171 mm

171 mm

171 mm

171 mm

171 mm

171 mm

Height

171 mm

171 mm

171 mm

171 mm

171 mm

171 mm

171 mm

171 mm

171 mm

Depth

114 mm

114 mm

114 mm

114 mm

114 mm

114 mm

114 mm

114 mm

114 mm

Width with packaging

180 mm

180 mm

180 mm

180 mm

180 mm

180 mm

180 mm

180 mm

180 mm

Height with packaging

180 mm

180 mm

180 mm

180 mm

180 mm

180 mm

180 mm

180 mm

180 mm

Depth with packaging

140 mm

140 mm

140 mm

140 mm

140 mm

140 mm

140 mm

140 mm

140 mm

Airstream temperature at IMax

40 °C

40 °C

40 °C

40 °C

40 °C

40 °C

40 °C

40 °C

40 °C

Sound pressure level

42 dB(A) / Distance 3 m, Free-field conditions

42 dB(A) / Distance 3 m, Free-field conditions

42 dB(A) / Distance 3 m, Free-field conditions

42 dB(A) / Distance 3 m, Free-field conditions

42 dB(A) / Distance 3 m, Free-field conditions

36 dB(A) / Distance 3 m, Free-field conditions

36 dB(A) / Distance 3 m, Free-field conditions

36 dB(A) / Distance 3 m, Free-field conditions

36 dB(A) / Distance 3 m, Free-field conditions

Packing unit

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece

Range

A

A

A

A

A

A

A

A

A

GTIN (EAN)

4012799840060

4012799840077

4012799840084

4012799840343

4012799840190

4012799840091

4012799840107

4012799840114

4012799840350

Overrun time

not specified

6 min

6 min

not specified

not specified

not specified

6 min

6 min

not specified

Start delay

not specified

50 s

50 s

not specified

not specified

not specified

50 s

50 s

not specified

Type of shutter

not specified

not specified

not specified

not specified

not specified

electrical

electrical

electrical

electrical

* Blue markings show the differences between the products.
