Radio receiver

XE 1

No longer available for delivery
Article number: 0157.0343
Manufacturer: MAICO
Radio receiver for the wireless switching of a load, recessed mounted 230 VAC/50 Hz, max. 2 A

Product data sheet

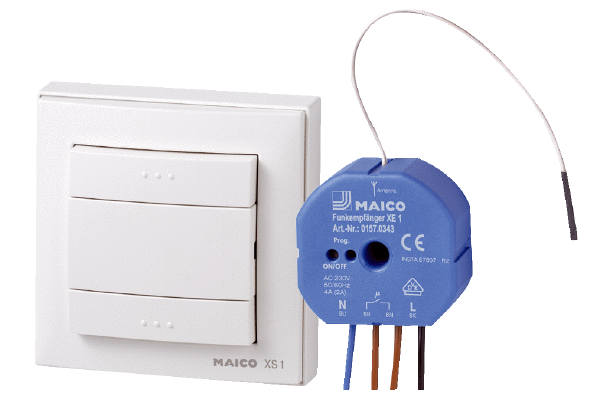

XE 1 IM0009759.PNG Radio receiver for the wireless switching of a load, recessed mounted 230 VAC/50 Hz, max. 2 A

Characteristic curve

Dimensioned drawing

Technical data

XE 1 - Technical data

Article XE 1
Type of voltage Alternating current
Rated voltage 230 V
Maximum load (inductive load) 2 A
Maximum load (ohmic load) 4 A
Degree of protection IP 20
Type of installation Recessed-mounted
Colour Blue
Weight 0,05 kg
Weight including packaging 0,08 kg
Width 52 mm
Height 52 mm
Depth 21 mm
Width with packaging 80 mm
Height with packaging 80 mm
Depth with packaging 45 mm
Ambient temperature 55 °C
Radio frequency 433 MHz
Number of radio channels 1 Channel
Programmable transmitter/switch 14
Packing unit 1 piece
Range C
GTIN (EAN) 4012799573432
Article number 0157.0343

Accessories / Accessories of

XE 1 - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Radio switch XS 1 No longer available for delivery 0157.0344 on request
  • On the notes

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Small room fan ECA 100 No longer available for delivery 0084.0000 on request
  • On the notes
Small room fan ECA 100 VZ No longer available for delivery 0084.0001 on request
  • On the notes
Small room fan ECA 100 VZC No longer available for delivery 0084.0040 on request
  • On the notes
Small room fan ECA 100 F No longer available for delivery 0084.0002 on request
  • On the notes
Small room fan ECA 100 I No longer available for delivery 0084.0038 on request
  • On the notes
Small room fan ECA 100 24 V No longer available for delivery 0084.0018 on request
  • On the notes
Small room fan ECA 100 K No longer available for delivery 0084.0003 on request
  • On the notes
Small room fan ECA 100 KVZ No longer available for delivery 0084.0004 on request
  • On the notes
Small room fan ECA 100 KVZC No longer available for delivery 0084.0041 on request
  • On the notes
Small room fan ECA 100 KF No longer available for delivery 0084.0005 on request
  • On the notes
Small room fan ECA 100 KI No longer available for delivery 0084.0039 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Small room fan ECA piano small room fans - - -
Duct-mounted fan ECA 11 E / ECA 15 duct-mounted fans - - -
Axial wall-mounted fan EN / ENR axial built-in wall fans - - -
Surface-mounted fan ER-AP surface-mounted fan - - -
Surface-mounted fan, fire protection Surface-mounted fan, ER-APB fire protection - - -
Centralised ventilation unit WS 150 - - -
Aeronom room air system WS 170 - - -
Centralised ventilation unit WS 160 Flat - - -
Centralised ventilation unit WS 170 air@home - - -
Centralised ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Fan insert ER 60 E / ER 100 E fan inserts - - -
Duct-mounted fan ERV 120 - - -
Duct-mounted fan ERV 150 - - -
Fan insert ER 60 E / ER 100 E fan inserts - - -
Small room fan ECA 100 ipro 0084.0200 on request
  • On the notes
Small room fan ECA 100 ipro VZC 0084.0201 on request
  • On the notes
Small room fan ECA 100 ipro F 0084.0202 on request
  • On the notes
Small room fan ECA 100 ipro H 0084.0203 on request
  • On the notes
Small room fan ECA 100 ipro B 0084.0204 on request
  • On the notes
Small room fan ECA 100 ipro K 0084.0205 on request
  • On the notes
Small room fan ECA 100 ipro KVZC 0084.0206 on request
  • On the notes
Small room fan ECA 100 ipro KF 0084.0207 on request
  • On the notes
Small room fan ECA 100 ipro KH 0084.0208 on request
  • On the notes
Small room fan ECA 100 ipro KB 0084.0209 on request
  • On the notes
Small room fan ECA 150 ipro 0084.0085 on request
  • On the notes
Small room fan ECA 150 ipro VZC 0084.0086 on request
  • On the notes
Small room fan ECA 150 ipro H 0084.0089 on request
  • On the notes
Small room fan ECA 150 ipro B 0084.0090 on request
  • On the notes
Small room fan ECA 150 ipro K 0084.0091 on request
  • On the notes
Small room fan ECA 150 ipro KVZC 0084.0092 on request
  • On the notes
Small room fan ECA 150 ipro KH 0084.0095 on request
  • On the notes
Small room fan ECA 150 ipro KB 0084.0096 on request
  • On the notes
Small room fan ECA 120 0084.0006 on request
  • On the notes
Small room fan ECA 120 VZ 0084.0007 on request
  • On the notes
Small room fan ECA 120 F 0084.0008 on request
  • On the notes
Small room fan ECA 120 24 V 0084.0019 on request
  • On the notes
Small room fan ECA 120 K 0084.0009 on request
  • On the notes
Small room fan ECA 120 KVZ 0084.0010 on request
  • On the notes
Small room fan ECA 120 KF 0084.0011 on request
  • On the notes
Cover ER-A 0084.0361 on request
  • On the notes
Fan insert ER 60 0084.0100 on request
  • On the notes
Fan insert ER 60 VZ 0084.0101 on request
  • On the notes
Fan insert ER 60 VZ 15 0084.0108 on request
  • On the notes
Fan insert ER 60 VZC 0084.0106 on request
  • On the notes
Fan insert ER 60 F 0084.0102 on request
  • On the notes
Fan insert ER 60 G 0084.0103 on request
  • On the notes
Fan insert ER 60 GVZ 0084.0107 on request
  • On the notes
Fan insert ER 60 H 0084.0104 on request
  • On the notes
Fan insert ER 60 I 0084.0105 on request
  • On the notes
Fan insert ER 100 0084.0130 on request
  • On the notes
Fan insert ER 100 VZ 0084.0131 on request
  • On the notes
Fan insert ER 100 VZ 15 0084.0140 on request
  • On the notes
Fan insert ER 100 VZC 0084.0136 on request
  • On the notes
Fan insert ER 100 F 0084.0132 on request
  • On the notes
Fan insert ER 100 G 0084.0133 on request
  • On the notes
Fan insert ER 100 GVZ 0084.0139 on request
  • On the notes
Fan insert ER 100 H 0084.0134 on request
  • On the notes
Fan insert ER 100 I 0084.0135 on request
  • On the notes
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 310 R 0095.0260 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised ventilation unit WR 410 R 0095.0261 on request
  • On the notes
Axial window fan EVN 15 0080.0853 on request
  • On the notes
Axial window fan EVN 22 0080.0855 on request
  • On the notes
Axial window fan EVN 22 R 0080.0857 on request
  • On the notes
Axial window fan EV 31 0080.0820 on request
  • On the notes
Axial window fan EVR 31 0080.0821 on request
  • On the notes
Small room fan ECA 150 P No longer available for delivery 0084.0066 on request
  • On the notes
Small room fan ECA 150 No longer available for delivery 0084.0012 on request
  • On the notes
Small room fan ECA 150/4 No longer available for delivery 0084.0036 on request
  • On the notes
Small room fan ECA 150 VZ No longer available for delivery 0084.0013 on request
  • On the notes
Small room fan ECA 150 F No longer available for delivery 0084.0014 on request
  • On the notes
Small room fan ECA 150 K No longer available for delivery 0084.0015 on request
  • On the notes
Small room fan ECA 150/4K No longer available for delivery 0084.0037 on request
  • On the notes
Small room fan ECA 150 KVZ No longer available for delivery 0084.0016 on request
  • On the notes
Small room fan ECA 150 KF No longer available for delivery 0084.0017 on request
  • On the notes
Fan insert ER 60 GVZC EC No longer available for delivery 0084.0116 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WR 600 No longer available for delivery 0095.0080 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes
Centralised ventilation unit WRG 400 EC No longer available for delivery 0082.0063 on request
  • On the notes

Product description

Productdescription

XE 1

short description

Radio receiver for the wireless switching of a load, recessed mounted 230 VAC/50 Hz, max. 2 A

Product description

  • Radio receiver for a wireless connection from the switch to the fan.
  • Installation in standard recessed-mounting box or distribution box.
  • Radio system consists of XS 1 radio switch and at least one XE 1 radio receiver.
  • An XS 1 can be assigned any number of XE 1.
