Small room fan

ECA 150 K

No longer available for delivery
Article number: 0084.0015
Manufacturer: MAICO
With electrical internal shutter
Application examples: Bathroom, WC, Storage room, Larder, Cellar
Product data sheet
ECA 150 K IM0008696.PNG With electrical internal shutter
ECA 150 K IM0008446.PNG With electrical internal shutter
Back
  • On the notes
ECA 150 P
ECA 150
ECA 150/4
ECA 150 VZ
ECA 150 F
ECA 150 K
ECA 150/4K
ECA 150 KVZ
ECA 150 KF
ECA 150 KP

Characteristic curve

ECA 150 K - Characteristic curve

U = 230 V

f = 50/60Hz

Dimensioned drawing

ECA 150 K - Dimensioned drawing [mm]

  1. Cable entry

Technical data

ECA 150 K - Technical data

Article ECA 150 K
Model Standard model
Air flow volume 300 m³/h
Rotating speed 2.700 1/min
Speed controllable ✔
Reversing capacity −
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz/60 Hz
Power consumption 25 W
Imax 0,12 A
Degree of protection IP 34
Mains cable 3 x 1,5 mm²
Installation site Wall
Type of installation Surface-mounted
Installation position any
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 1,3
Weight including packaging 1,515 kg
Nominal size 150 mm
Width with packaging 210 mm
Height with packaging 150 mm
Depth with packaging 210 mm
Sound pressure level 46 dB(A) / Distance 3 m, Free-field conditions
Packing unit 1 piece
Range A
GTIN (EAN) 4012799840152
Article number 0084.0015

Accessories / Spare parts

ECA 150 K - Accessories / Spare parts

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Spacing frame ECA15-EMA16 0092.0251 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Wall sleeve WH 150 0059.1050 on request
  • On the notes
Outside air opening ALD 10 0152.0054 on request
  • On the notes
Outside air opening ALD 125 Discontinued product 0152.0067 on request
  • On the notes
Outside air opening ALD 125 VA Discontinued product 0152.0068 on request
  • On the notes
Outside air opening ALD 160 Discontinued product 0152.0069 on request
  • On the notes
Outside air opening ALD 160 VA Discontinued product 0152.0070 on request
  • On the notes
Door ventilation grille MLK 30 white 0151.0123 on request
  • On the notes
Door ventilation grille MLK 45 white 0151.0126 on request
  • On the notes
Flexible aluminium duct AFR 150 0055.0093 on request
  • On the notes
Step switch FS 4 0016.0104 on request
  • On the notes
Time delay switch VZ 6 0157.0820 on request
  • On the notes
Time delay switch VZ 12 0157.0821 on request
  • On the notes
Time delay switch VZ 24 C 0157.0822 on request
  • On the notes
Interval switch VZI 10 0157.0823 on request
  • On the notes
Follow-up relay NRS 10 0157.0805 on request
  • On the notes
Radio switch XS 1 No longer available for delivery 0157.0344 on request
  • On the notes
Radio receiver XE 1 No longer available for delivery 0157.0343 on request
  • On the notes
Shutter AP 150 No longer available for delivery 0059.0952 on request
  • On the notes
External grille SG 15 No longer available for delivery 0059.0904 on request
  • On the notes
Outside air opening ALD 10 T No longer available for delivery 0152.0055 on request
  • On the notes
Outside air opening ALD 12 S No longer available for delivery 0152.0052 on request
  • On the notes
Outside air opening ALD 12 SVA No longer available for delivery 0152.0053 on request
  • On the notes
Outside air opening ZE 45 F white No longer available for delivery 0152.0044 on request
  • On the notes
Speed controller ST 1 No longer available for delivery 0157.0810 on request
  • On the notes
Speed controller STU 1 No longer available for delivery 0157.0814 on request
  • On the notes
Speed controller, distribution board STS 2,5 No longer available for delivery 0157.0255 on request
  • On the notes
Automatic timer ZA 4 No longer available for delivery 0157.0426 on request
  • On the notes
Hygrostat HY 5 No longer available for delivery 0157.0123 on request
  • On the notes
Hygrostat HY 5 I No longer available for delivery 0157.0125 on request
  • On the notes
Hygrostat HY 10 AP No longer available for delivery 0157.0358 on request
  • On the notes
Hygrostat HY 10 UP No longer available for delivery 0157.0357 on request
  • On the notes
Door contact switch TS 8 No longer available for delivery 0157.0120 on request
  • On the notes

Spare parts

Product type Name Art. No. Price*(EUR) Action
Circuit board PL ECA 150 E101.1020.9001 on request
  • On the notes
Thermostatic bimetal strip TB ECA 150 K E180.0913.9400 on request
  • On the notes
Cover ABDK ECA 150 1 No longer available for delivery E059.1025.9000 on request
  • On the notes

Product description

Productdescription

ECA 150 K

short description

With electrical internal shutter

Product description

Standard model

  • With electrically operated internal shutter.
  • Speed controllable. Exception: ECA 150/4 K.
  • There can be a physically induced humming noise at lower speeds, through the use of phase angle technology.

Features

  • High air volume in spite of compact size.
  • Combines large air volumes with high pressure.
  • Thermal overload protection.
  • Housing made of impact resistant synthetic material.
  • Protection class II.
  • ECA 120: with VDE GS symbol, exception: ECA 120 24 V.
  • ECA 150: with VDE symbol.
  • With protective seals to stop condensation seepage with ceiling installations.
  • Optional speed control for standard ECA fan models. Exceptions: ECA 150/4 and ECA 150/4 K.
  • Colour: traffic white, similar to RAL 9016.

Motor

  • Robust motor with ball bearings, maintenance-free.
  • Suitable for continuous operation.

Mounting instructions

  • Easy and quick cover dismantling.
  • The fan can be fastened quickly in the duct by the two spring-clamps.

Electrical connection

  • Electrical connection can be either surface- or recessed-mounted.

Safety instructions

  • ECA 100 Can be used in protection area 2 in accordance with DIN VDE 0100-701.
  • For details, please refer to the planning instructions.

Table of contents

Wiring diagram

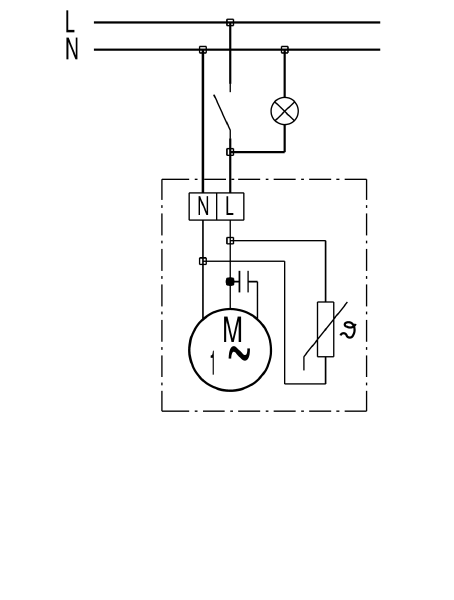

ECA 150 K - Wiring diagram
