Hygrostat

HY 5

No longer available for delivery
Article number: 0157.0123
Manufacturer: MAICO
Hygrostat for controlling ventilation systems depending on the relative air humidity, control unit on the... more information

Product data sheet

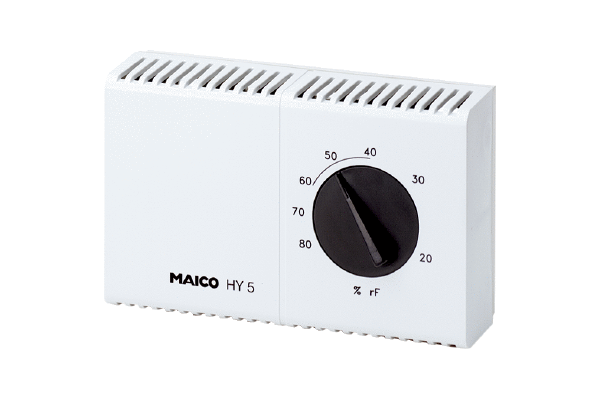

HY 5 IM0009801.PNG Hygrostat for controlling ventilation systems depending on the relative air humidity, control unit on the outside
Back
  • On the notes
HY 5
HY 5 I
HY 10 AP
HY 10 UP

Characteristic curve

Dimensioned drawing

Technical data

HY 5 - Technical data

Article HY 5
Frequency 50 Hz/60 Hz
Colour Pure white, similar to RAL 9010
Weight 0,1 kg
Weight including packaging 0,233 kg
Width 132 mm
Height 82 mm
Depth 40 mm
Width with packaging 137 mm
Height with packaging 55 mm
Depth with packaging 90 mm
Operating element outside
Packing unit 1 piece
Range C
GTIN (EAN) 4012799571230
Article number 0157.0123

Accessories of

HY 5 - Accessories of

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Aeronom room air system WRG 300 - - -

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Axial wall fan DZQ axial wall fans - - -
Axial wall-mounted fan EZF, DZF built-in wall fans - - -
Axial duct fan EZR, DZR duct fans - - -
Centrifugal roof fan ERD, DRD centrifugal roof fans - - -
Axial wall fan DN 350 - - -
Axial wall fan DN 400 - - -
Axial wall fan DN 500 - - -
Axial wall fan DN 600 - - -
Axial duct fan EZR, DZR duct fans - - -
Axial roof fan DZD - DN 600 - - -
Axial wall fan DZQ 30/64 B No longer available for delivery 0083.0146 on request
  • On the notes
Axial wall fan DZS 30/64 B No longer available for delivery 0094.0043 on request
  • On the notes
Axial wall fan DZS 30/84 B No longer available for delivery 0094.0042 on request
  • On the notes
Small room fan ECA 100 No longer available for delivery 0084.0000 on request
  • On the notes
Small room fan ECA 100 24 V No longer available for delivery 0084.0018 on request
  • On the notes
Small room fan ECA 100 K No longer available for delivery 0084.0003 on request
  • On the notes
Small room fan ECA 150 No longer available for delivery 0084.0012 on request
  • On the notes
Small room fan ECA 150/4 No longer available for delivery 0084.0036 on request
  • On the notes
Small room fan ECA 150 K No longer available for delivery 0084.0015 on request
  • On the notes
Small room fan ECA 150/4K No longer available for delivery 0084.0037 on request
  • On the notes
Centralised ventilation unit WS 170 KBR No longer available for delivery 0095.0085 on request
  • On the notes
Centralised ventilation unit WS 170 KBL No longer available for delivery 0095.0086 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes
Centralised ventilation unit WRG 400 EC No longer available for delivery 0082.0063 on request
  • On the notes

Product description

Productdescription

HY 5

short description

Hygrostat for controlling ventilation systems depending on the relative air humidity, control unit on the outside

Product description

  • Hygrostat for controlling fans depending on the relative air humidity.
  • Maximum current with inductive load: 5.0 A for dehumidifying, 2.2 A for humidifying.
  • Application areas: Laundries and other humid areas.
  • Continuous setting range: 20% to 80% relative humidity.
  • Switching hysteresis: approx. 8 % relative humidity.
  • It is possible to operate the fan with increasing or decreasing humidity selected (changeover contact).

Table of contents

Wiring diagram

HY 5 - Wiring diagram

HY 5, HY 5 I

Terminal 1 = dehumidifying

Terminal 3 = humidifying



Predecessor - successor

HY 5 - Successor

Product type Name Art. No. Action
Hygrostat HY 230 0157.0126
  • On the notes
