RSOF

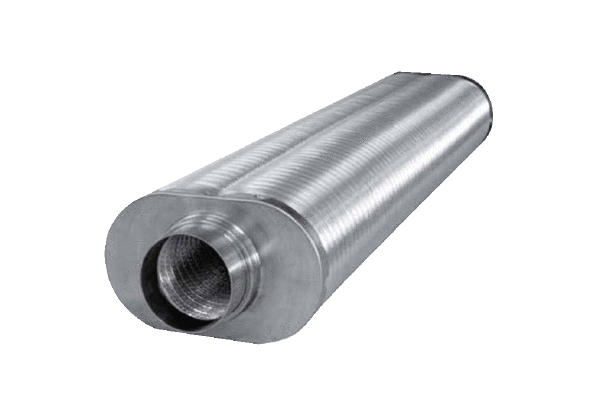

Flat oval duct sound absorbers with 50 mm sound absorbing cover

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

Article	RSOF 10/50	RSOF 12/50	RSOF 16/50	RSOF 10/100	RSOF 12/100	RSOF 16/100
	Product details	Product details	Product details	Product details	Product details	Product details
Notes

Article

RSOF 10/50

Flat flexible telephony sound absorber in oval version with 50 mm sound absorbing cover (flat side), length: 500 mm, height: 150 mm, DN 100

RSOF 12/50

Flat flexible telephony sound absorber in oval version with 50 mm sound absorbing cover (flat side), length: 500 mm, height: 175 mm, DN 125

RSOF 16/50

Flat flexible telephony sound absorber in oval version with 50 mm sound absorbing cover (flat side), length: 500 mm, height: 210 mm, DN 160

RSOF 10/100

Flat flexible telephony sound absorber in oval version with 50 mm sound absorbing cover (flat side), length: 1,000 mm, height: 150 mm, DN 100

RSOF 12/100

Flat flexible telephony sound absorber in oval version with 50 mm sound absorbing cover (flat side), length: 1,000 mm, height: 175 mm, DN 125

RSOF 16/100

Flat flexible telephony sound absorber in oval version with 50 mm sound absorbing cover (flat side), length: 1,000 mm, height: 210 mm, DN 160

Article	RSOF 10/50	RSOF 12/50	RSOF 16/50	RSOF 10/100	RSOF 12/100	RSOF 16/100
	Product details	Product details	Product details	Product details	Product details	Product details

Product type	Flat oval duct sound absorber	Flat oval duct sound absorber	Flat oval duct sound absorber	Flat oval duct sound absorber	Flat oval duct sound absorber	Flat oval duct sound absorber
Article number:	0092.0530	0092.0531	0092.0532	0092.0533	0092.0534	0092.0535
Model	50 mm sound absorbing cover	50 mm sound absorbing cover	50 mm sound absorbing cover	50 mm sound absorbing cover	50 mm sound absorbing cover	50 mm sound absorbing cover
Material	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium
Weight	0,94 kg	1,09 kg	1,38 kg	1,54 kg	1,8 kg	2,13 kg
Weight including packaging	1,37 kg	1,65 kg	1,93 kg	2,03 kg	2,45 kg	2,78 kg
Nominal size	100 mm	125 mm	160 mm	100 mm	125 mm	160 mm
Length	500 mm	500 mm	500 mm	1.000 mm	1.000 mm	1.000 mm
Width	240 mm	265 mm	285 mm	240 mm	265 mm	285 mm
Height	150 mm	175 mm	210 mm	150 mm	175 mm	210 mm
Depth	500 mm	500 mm	500 mm	1.000 mm	1.000 mm	1.000 mm
Width with packaging	270 mm	275 mm	275 mm	225 mm	228 mm	274 mm
Height with packaging	270 mm	275 mm	275 mm	225 mm	228 mm	274 mm
Depth with packaging	820 mm	810 mm	805 mm	1.190 mm	1.120 mm	1.180 mm
Ambient temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Insertion loss at 63 Hz	2 dB	1 dB	1 dB	9 dB	6 dB	5 dB
Insertion loss at 125 Hz	4 dB	3 dB	6 dB	7 dB	6 dB	6 dB
Insertion loss at 250 Hz	11 dB	9 dB	7 dB	19 dB	13 dB	10 dB
Insertion loss at 500 Hz	17 dB	17 dB	13 dB	24 dB	20 dB	19 dB
Insertion loss at 1 kHz	32 dB	27 dB	22 dB	42 dB	36 dB	33 dB
Insertion loss at 2 kHz	41 dB	31 dB	22 dB	56 dB	52 dB	37 dB
Insertion loss at 4 kHz	21 dB	15 dB	13 dB	34 dB	24 dB	17 dB
Insertion loss at 8 kHz	17 dB	17 dB	13 dB	31 dB	24 dB	18 dB
Packing unit	1 piece	1 piece	1 piece	1 piece	1 piece	1 piece
Range	K	K	K	K	K	K
GTIN (EAN)	4012799925309	4012799925316	4012799925323	4012799925330	4012799925347	4012799925354

* Blue markings show the differences between the products.
