WRG EC

Controlled domestic ventilation systems with heat recovery

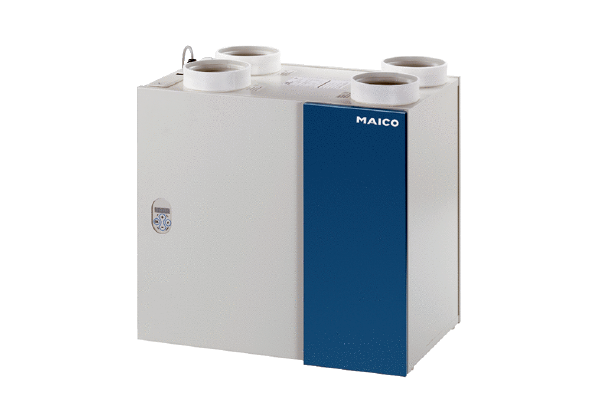

WRG EC IM0014361.PNG Controlled domestic ventilation systems with heat recovery

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

ArticleWRG 400 ECWRG 300 ECWRG 180 ECWRG 300 ECWRG 400 EC
Product detailsProduct detailsProduct detailsProduct detailsProduct details
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
Product type Aeronom room air system Aeronom room air system Centralised ventilation unit Centralised ventilation unit Centralised ventilation unit
Article number: 0082.0061 0082.0060 0082.0059 0082.0062 0082.0063
Air flow volume

60 m³/h / 400 m³/h

60 m³/h / 250 m³/h

70 m³/h - 165 m³/h

70 m³/h - 300 m³/h

70 m³/h - 400 m³/h

Rotating speed

2.070 1/min

2.070 1/min

not specified

not specified

not specified

Speed controllable

-

-

-

-

-

Type of voltage

Alternating current

Alternating current

Alternating current

Alternating current

Alternating current

Rated voltage

230 V

230 V

230 V

230 V

230 V

Frequency

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

50 Hz/60 Hz

Maximum power consumption

300 W

174 W

not specified

not specified

not specified

Imax

1 A

1 A

0,8 A

1,06 A

2,1 A

Degree of protection

IP 31

IP 31

IP 31

IP 31

IP 31

Installation site

Cellar / Storage tank / Jamb wall / Utility room / Heating room

Cellar / Storage tank / Jamb wall / Utility room / Heating room

Cellar / Storage tank / Jamb wall / Utility room / Heating room

Cellar / Storage tank / Jamb wall / Utility room / Heating room

Cellar / Storage tank / Jamb wall / Utility room / Heating room

Housing material

Sheet steel, galvanised

Sheet steel, powder coated

Sheet steel, powder coated

not specified

Sheet steel, powder coated

Colour

Pearl white, similar to RAL 1013

Pearl white, similar to RAL 1013

Pearl white, similar to RAL 1013

Pearl white, similar to RAL 1013

Pearl white, similar to RAL 1013

Weight

32

31

27,7 kg

31,5 kg

33 kg

Weight including packaging

28,97 kg

35 kg

29 kg

34 kg

35,5 kg

Filter class

G4

G4

G4

G4

G4

Connection diameter

180 mm

160 mm

125 mm

160 mm

180 mm

Width with packaging

730 mm

760 mm

730 mm

760 mm

760 mm

Height with packaging

360 mm

590 mm

360 mm

740 mm

740 mm

Depth with packaging

590 mm

750 mm

590 mm

595 mm

595 mm

Airstream temperature at IMax

50 °C

50 °C

50 °C

50 °C

50 °C

Degree of heat provision

90 %

90 %

90 %

90 %

90 %

Heat exchanger construction type

Condensation rotor

Condensation rotor

Cross-counterflow

Cross-counterflow

Cross-counterflow

Packing unit

1 piece

1 piece

1 piece

1 piece

1 piece

Range

K

K

K

K

K

GTIN (EAN)

4012799820611

4012799820604

4012799820598

4012799820628

4012799820635

Number of ventilation levels

not specified

not specified

3

3

3

Volumetric flow constant

not specified

not specified

yes

yes

yes

Power consumption

not specified

not specified

37 W - 77 W / At 100 Pa counter pressure

40 W - 160 W / At 100 Pa counter pressure

40 W - 270 W / At 100 Pa counter pressure

DIBT approval

not specified

not specified

No

No

No

PHI certification

not specified

not specified

yes

No

No

Heat exchanger material

not specified

not specified

PETG plastic

PETG plastic

PETG plastic

Connection diameter of condensation drain

not specified

not specified

3/4" inside thread

1/2" inside thread

1/2" inside thread

Width

not specified

not specified

560 mm

675 mm

675 mm

Height

not specified

not specified

600 mm

602 mm

602 mm

Depth

not specified

not specified

315 mm

420 mm

430 mm

Bypass

not specified

not specified

No

No

No

Frost protection

not specified

not specified

External

External

External

Antifreeze circuit

not specified

not specified

yes

yes

yes

Summer circuit

not specified

not specified

No

No

No

Filter monitoring

not specified

not specified

time controlled with RLS 2 F

time controlled with RLS 2 F

time controlled with RLS 2 F

Humidity control

not specified

not specified

optional with HY 5, HY 5 I, HY 10 AP, HY 10 UP

optional with HY 5, HY 5 I, HY 10 AP, HY 10 UP

optional with HY 5, HY 5 I, HY 10 AP, HY 10 UP

CO2 regulation (optional)

not specified

not specified

-

-

-

Air quality control (optional)

not specified

not specified

-

-

-

KNX connection (optional)

not specified

not specified

yes

yes

yes

Control unit included in scope of delivery.

not specified

not specified

No

No

No

Control unit (optional)

not specified

not specified

RLS 2 F, RLS 3

RLS 2 F, RLS 3

RLS 2 F, RLS 3

Wireless switch on/off (optional)

not specified

not specified

XE 1, XS 1

XE 1, XS 1

XE 1, XS 1

Housing emission sound pressure level

not specified

not specified

37 dB(A) / Spacing 1m, sound absorption 10 m²

45 dB(A) / Spacing 1m, sound absorption 10 m²

53 dB(A) / Spacing 1m, sound absorption 10 m²

* Blue markings show the differences between the products.
