Small room fan
AKE 150
Manufacturer: MAICO
On request
Automatic cellar dehumidification, DN 150, air volume 250 m³/h
Application examples: Cellar and/or cellar room, Utility room, Drying room, Utility room
Product data sheet

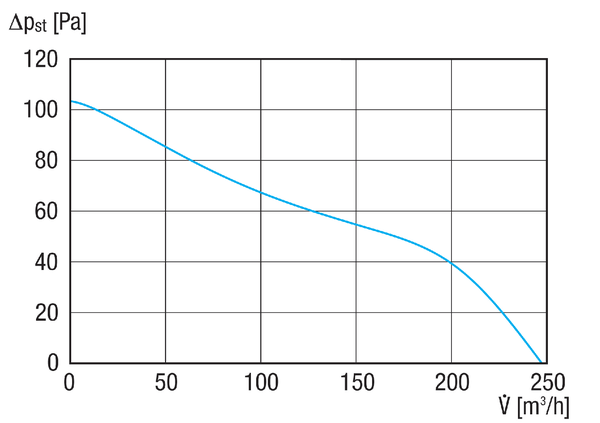

Characteristic curve
Dimensioned drawing
AKE 150 - Dimensioned drawing [mm]
- Cable entry for recessed-mounted connection
- Cable bushing for surface-mounted connection

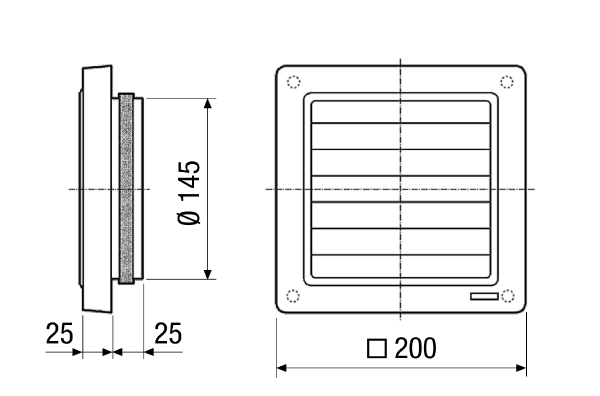

AKE 150 - Dimensioned drawing [mm]
External shutter (included in the scope of delivery)
Technical data
AKE 150 - Technical data
Accessories / Spare parts
AKE 150 - Accessories / Spare parts
Specific accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Small room fan | ECA 150 ipro | 0084.0085 | on request | |
| Duct-mounted fan | ECA 15/2 E Remaining parts | 0080.0990 | on request | |
| Duct-mounted fan | ECA 15/4 E | 0080.0991 | on request | |
| Duct-mounted fan | ERV 150 | 0080.0986 | on request | |
| Duct-mounted fan | ERV 150 TC | 0080.0987 | on request | |
| Sensor cable for AKE 100/150 | cable 6 m | 0157.0588 | on request |
General accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Roof outlet | DF | - | - | - |
| Roofing tile | DP | - | - | - |
| Mounting clamp | BS | - | - | - |
| Rain protection grille | RG | - | - | - |
| Roofing tile | DP | - | - | - |
| Shutter | AP 150/1 | 0059.0996 | on request | |
| External grille | SG 150/1 | 0059.0997 | on request | |
| Wall sleeve | WH 150 | 0059.1050 | on request | |
| Internal shutter, electric | AE 15/1 | 0151.0401 | on request | |
| External grille | SG 15 No longer available for delivery | 0059.0904 | on request |
Spare parts
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Cover | ABD ECA 150 ipro 3 | E059.1502.9201 | on request | |
| Electronics cover | ABDE ECA 150 ipro 2 | E059.1510.9001 | on request |
Product description
Productdescription
AKE 150
short description
Automatic cellar dehumidification, DN 150, air volume 250 m³/hProduct description
Model
- Application area up to approx. 70 m² per fan.
- Versatile expandability of the system: Connection of a supply air fan (e.g. ECA 15/4 E) is possible to increase the air exchange.
Features
- Fully automatic, intelligent cellar dehumidification for the highest demands.
- Constant comparison of the absolute humidity in the indoor and outdoor areas: Fan ventilates automatically if the absolute humidity in the room is greater than outside.
- No maintenance and manual control required: Install once and the system works automatically.
- Other fans without their own dew point control can be connected directly to the AKE, up to a max. of 600 mA, and benefit from the intelligence.
- Fans > 600 mA can be connected with an additional relay or contactor and thus also dehumidify larger or several rooms via the AKE.
- Design cover conceals the inlet.
- Barrier-free product as the fan switches itself on and off automatically without additional switches.
- Fan monitors the room humidity.
- Frost protection function: Switch off the system at inside temperatures below 5 °C.
- Dry protection function: Switching off the system at a relative humidity of less than 30 %
- Additional manual operation for 20 min. can be switched on and off by push button.
- Additional installation of switch for unit not needed.
- Additional manual operation with switch possible.
- Status and function displayed using LEDs.
- Scope of delivery:
- Fan
- External shutter
- Sensors
- 1m connection cable
- Colour: traffic white, similar to RAL 9016.
- Housing made of impact-resistant plastic.
- Thermal overload protection.
- Protection class II.
Frost protection
- To prevent the room from cooling down, the AKE has a frost protection function. This means that the fan automatically switches off at inside temperatures of less than 5 °C.
Protection against insufficient humidity
- To prevent the room from drying out, the AKE has a dry protection function. This means that the fan automatically switches off at a relative room humidity of less than 30 %.
Motor
- Energy-saving robust motor with ball bearings, maintenance-free.
- Suitable for continuous operation.
Installation information
- Simple installation:
- AKE 100: Core drill hole 105 mm / 120 mm when installing with WH 100 wall sleeve accessory.
- AKE 150: Core drill hole 155 mm / 170 mm when installing with WH 150 wall sleeve.
- Wall and ceiling installation is possible
Electrical connection
- Electrical connection can be either surface- or recessed-mounted.
- Surface installation for AKE 100 with ECA-DR spacing frame accessory.
Wiring diagram
AKE 150 - Wiring diagram
Ab - Fuse protection provided by customer
mE - Manual switching-on option
S - Controller
AL - Exhaust air
ZL - Supply air option
