Air filter, replacement

ALDF 125/160 G3

Article number: 0093.0080
Manufacturer: MAICO
Replacement air filter for ALD 125, ALD 125 VA, ALD 160 and ALD 160 VA outside air openings, filter class ISO... more information

Product data sheet

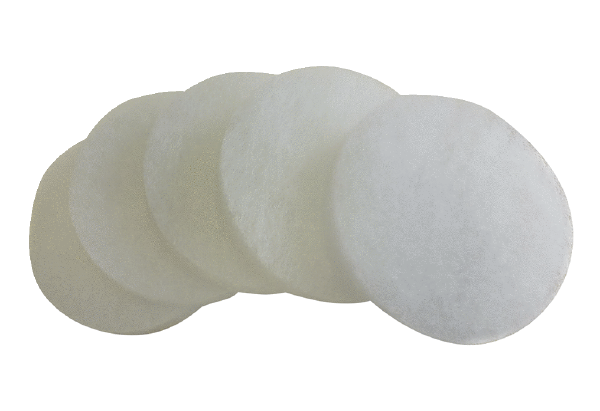

ALDF 125/160 G3 IM0016397.PNG Replacement air filter for ALD 125, ALD 125 VA, ALD 160 and ALD 160 VA outside air openings, filter class ISO Coarse 45 % (G3), 5 items
Back
ALDF 10
ALDF 10 T
ALDF 12 G2
ALDF 12 G3
ALDF 125/160 G2
ALDF 125/160 G3
ZEF 45 F

Characteristic curve

Dimensioned drawing

Technical data

ALDF 125/160 G3 - Technical data

Article ALDF 125/160 G3
Installation position vertical / horizontal
Weight 0,01 kg
Weight including packaging 0,01 kg
Type of filter Dust filter
Filter class ISO Coarse 45 % (G3)
Width 95 mm
Height 95 mm
Depth 12 mm
Width with packaging 190 mm
Height with packaging 250 mm
Depth with packaging 25 mm
Ambient temperature 60 °C
Packing unit 5 pieces
Suitable for products ALD 125 / ALD 125 VA, ALD 160 / ALD 160 VA
Range B
GTIN (EAN) 4012799930808
Article number 0093.0080

Accessories of

ALDF 125/160 G3 - Accessories of

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Outside air opening ALD 125 Discontinued product 0152.0067 on request
  • On the notes
Outside air opening ALD 125 VA Discontinued product 0152.0068 on request
  • On the notes
Outside air opening ALD 160 Discontinued product 0152.0069 on request
  • On the notes
Outside air opening ALD 160 VA Discontinued product 0152.0070 on request
  • On the notes
Exhaust and supply air valve AZV 100 0152.0087 on request
  • On the notes

Product description

Productdescription

ALDF 125/160 G3

short description

Replacement air filter for ALD 125, ALD 125 VA, ALD 160 and ALD 160 VA outside air openings, filter class ISO Coarse 45 % (G3), 5 items

Product description

  • ALDF 125/160: Replacement filter for outside air opening ALD 125, ALD 125 VA, ALD 160 and ALD 160 VA.
