CO2 sensor

SKD

Article number: 0157.0345
Manufacturer: MAICO
Sensor for measuring the carbon dioxide concentration in the air, CO2 measurement range from 500 - 2,000 ppm,... more information
Application examples: Restaurant, Day room, Waiting room, Lecture room, Single-family houses in combination with ventilation units with heat recovery
Product data sheet

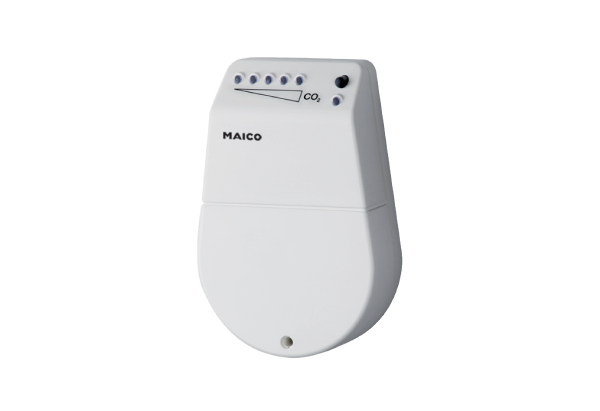

SKD IM0009795.PNG Sensor for measuring the carbon dioxide concentration in the air, CO2 measurement range from 500 - 2,000 ppm, 0 - 10 V output
Back
  • On the notes
Trio CO2 E
Trio CO2 E
Trio CO2 I
CO2 I WS 120 Trio
SKD

Characteristic curve

Dimensioned drawing

Technical data

SKD - Technical data

Article SKD
Rated voltage 14 V - 48 V DC / 16 V - 36 V AC
Inom 0,02 A
Imax 0,1 A
Degree of protection IP 20
Installation site Wall
Type of installation Surface-mounted
Installation position any
Housing material Synthetic material
Colour Pure white, similar to RAL 9010
Weight 0,1 kg
Weight including packaging 0,13 kg
Width 79 mm
Height 120 mm
Depth 30 mm
Width with packaging 100 mm
Height with packaging 135 mm
Depth with packaging 40 mm
Ambient temperature 10 °C up to 40 °C
CO2measuring range 500 ppm - 2.000 ppm
Packing unit 1 piece
Range C
GTIN (EAN) 4012799573456
Article number 0157.0345

Accessories of

SKD - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Aeronom room air system WS 170 - - -
Centralised ventilation unit WS 160 Flat - - -
Centralised ventilation unit WS 170 air@home - - -
Centralised ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Centralised ventilation unit WS 120 Trio LL 0095.0655 on request
  • On the notes
Centralised ventilation unit WS 120 Trio LLV 0095.0656 on request
  • On the notes
Centralised ventilation unit WS 120 Trio LR 0095.0657 on request
  • On the notes
Centralised ventilation unit WS 120 Trio LRV 0095.0658 on request
  • On the notes
Centralised ventilation unit WS 120 Trio QL 0095.0659 on request
  • On the notes
Centralised ventilation unit WS 120 Trio QLV 0095.0660 on request
  • On the notes
Centralised ventilation unit WS 120 Trio QR 0095.0661 on request
  • On the notes
Centralised ventilation unit WS 120 Trio QRV 0095.0662 on request
  • On the notes
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 310 R 0095.0260 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised ventilation unit WR 410 R 0095.0261 on request
  • On the notes
Ventilation unit WS 75 Powerbox S 0095.0645 on request
  • On the notes
Ventilation unit WS 75 Powerbox H 0095.0646 on request
  • On the notes
Centrifugal duct fan ERR 10/1 0080.0270 on request
  • On the notes
Centrifugal duct fan ERR 10/1 S 0080.0271 on request
  • On the notes
Centrifugal duct fan ERR 12/1 0080.0272 on request
  • On the notes
Centrifugal duct fan ERR 16/1 0080.0273 on request
  • On the notes
Centrifugal duct fan ERR 16/1 S 0080.0274 on request
  • On the notes
Centrifugal duct fan ERR 20/1 0080.0275 on request
  • On the notes
Centrifugal duct fan ERR 25/1 0080.0277 on request
  • On the notes
Centrifugal duct fan ERR 31/1 0080.0278 on request
  • On the notes
Centrifugal duct fan ERR 10/1 EC Discontinued product 0073.0566 on request
  • On the notes
Centrifugal duct fan ERR 12/1 EC Discontinued product 0073.0567 on request
  • On the notes
Centrifugal duct fan ERR 15/1 EC Discontinued product 0073.0568 on request
  • On the notes
Centrifugal duct fan ERR 16/1 EC Discontinued product 0073.0569 on request
  • On the notes
Centrifugal duct fan ERR 20/1 EC Discontinued product 0073.0570 on request
  • On the notes
Centrifugal duct fan ERR 25/1 EC Discontinued product 0073.0571 on request
  • On the notes
Centrifugal duct fan ERR 31/1 EC 0073.0572 on request
  • On the notes
Centrifugal duct fan ERR 10/2 EC New development 0073.0583 on request
  • On the notes
Centrifugal duct fan ERR 12/2 EC New development 0073.0584 on request
  • On the notes
Centrifugal duct fan ERR 15/2 EC New development 0073.0585 on request
  • On the notes
Centrifugal duct fan ERR 16/2 EC New development 0073.0586 on request
  • On the notes
Centrifugal duct fan ERR 20/2 EC New development 0073.0587 on request
  • On the notes
Centrifugal duct fan ERR 25/2 EC New development 0073.0588 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WR 600 No longer available for delivery 0095.0080 on request
  • On the notes

Product description

Productdescription

SKD

short description

Sensor for measuring the carbon dioxide concentration in the air, CO2 measurement range from 500 - 2,000 ppm, 0 - 10 V output

Product description

  • CO2sensor for controlling fans depending on concentration of CO2concentration.
  • Visual sensor using infra-red absorption.
  • With 5 LEDs for indicating CO2concentration.
  • With 0 V to 10 V output for outputting CO2concentration.
  • With 0 V to 10 V output for outputting temperature.
  • Do not use for gas measurements of relevance to safety.
  • Accessories: Safety isolating transformer (230 V / 24 V) to be provided by customer.

Mounting instructions

  • Mount on inside wall at around eye height (for temperature measurement).
  • Avoid draughts or radiated lost heat.
  • Do not fit CO2 sensor on a soft base otherwise air will not be exchanged.
