Roof outlet

DF 160 S

Article number: 0092.0375
Manufacturer: MAICO
Roof outlet with roof cowl, colour: black, DN 160 connection

Product data sheet
DF 160 S IM0009925.PNG Roof outlet with roof cowl, colour: black, DN 160 connection

Characteristic curve

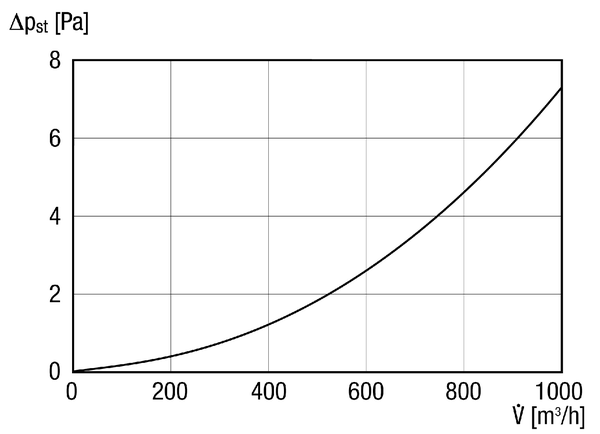

DF 160 S - Characteristic curve

Dimensioned drawing

DF 160 S - Dimensioned drawing [mm]

DF 160 S with DP 160 A

For flat roofs

DF 160 S - Dimensioned drawing [mm]

DF 160 S with DP 160 SB

For pitched roofs

Technical data

DF 160 S - Technical data

Article DF 160 S
Air direction Ventilation and air extraction
Material Synthetic material
Colour Black
Weight 2,1 kg
Weight including packaging 3,43 kg
Nominal size 160 mm
Width 340 mm
Height 1.135 mm
Depth 340 mm
Width with packaging 341 mm
Height with packaging 1.180 mm
Depth with packaging 341 mm
Packing unit 1 piece
Range B
GTIN (EAN) 4012799923756
Article number 0092.0375

Accessories / Accessories of

DF 160 S - Accessories / Accessories of

Specific accessories

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Roofing tile DP 160 SB 0092.0380 on request
  • On the notes
Roofing tile DP 160 A 0092.0383 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Small room fan Small room fans - - -
Small room fan ECA 100 small room fans - - -
Recessed-mounted housing ER-UP/G, -UPD, -UPB flush-mounted housing - - -
Fan insert ER 60 / ER 100 fan inserts - - -
Surface-mounted fan ER-AP surface-mounted fan - - -
Surface-mounted fan, fire protection Surface-mounted fan, ER-APB fire protection - - -
Fan insert ER 60/100 - - -
Fan insert Fan insert - - -
Fan insert ER 60 E / ER 100 E fan inserts - - -
Recessed-mounted housing ER-UP/GH flush-mounted housing - - -
Fan insert ER 60 E / ER 100 E fan inserts - - -
Small room fan ECA 100 ipro RC 0084.0210 on request
  • On the notes
Small room fan ECA 100 ipro RCH 0084.0211 on request
  • On the notes
Small room fan ECA 150 ipro RC 0084.0087 on request
  • On the notes
Small room fan ECA 150 ipro RCH 0084.0088 on request
  • On the notes
Small room fan ECA 150 ipro KRC 0084.0093 on request
  • On the notes
Small room fan ECA 150 ipro KRCH 0084.0094 on request
  • On the notes
Fan insert ER 100 RC 0084.0129 on request
  • On the notes
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 310 R 0095.0260 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised ventilation unit WR 410 R 0095.0261 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Aeronom room air system WS 600 No longer available for delivery 0095.0056 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Aeronom room air system WRG 300 DC No longer available for delivery 0082.0048 on request
  • On the notes
Aeronom room air system WRG 300 EC No longer available for delivery 0082.0060 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes

Product description

Productdescription

DF 160 S

short description

Roof outlet with roof cowl, colour: black, DN 160 connection

Product description

  • For the routing of supply air or exhaust air from fans or air extraction systems.
  • DP ... A: Suitable for flat roofs.
  • DP ... TB, DP ... SB, BS ..., RG ..., DF ...: Suitable for 25° to 45° pitched roofs.
  • Material: DF ... roof outlet in polypropylene. Roofing tiles for pitched roofs in polyethylene, exception DP 125 TB in lead. Roofing tiles for flat roofs in aluminium.
  • No static pressure loss.
  • With condensation drainage.
  • Reducers must be provided by the customer.
  • The DP roofing tile must be used.
  • We recommend using BS type mounting clamps for wind pressure resistant roof mounting.
  • For flat roof designs:
    • For a warm roof, order 2 roofing tiles DP ... A.
    • For a cold roof, order just 1 roofing tile DP ... A.
