Centrifugal duct fan

ERR 35/1

No longer available for delivery
Article number: 0080.0870
Manufacturer: MAICO
Centrifugal duct fan, DN 355, alternating current
Application examples: Machine extraction unit, Workplace air extraction system, Production site, Storage facility, Laboratory
Product data sheet
ERR 35/1 IM0009883.PNG Centrifugal duct fan, DN 355, alternating current

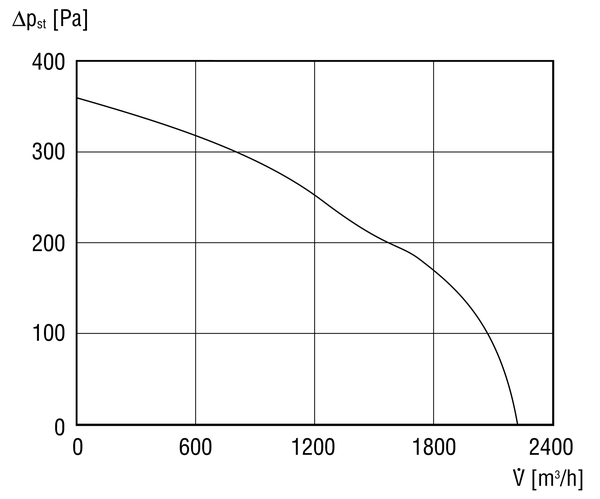

Characteristic curve

ERR 35/1 - Characteristic curve

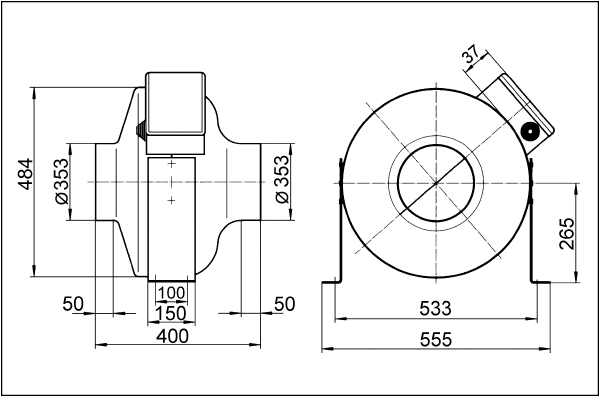

Dimensioned drawing

ERR 35/1 - Dimensioned drawing [mm]

Technical data

ERR 35/1 - Technical data

Article ERR 35/1
Air flow volume 2.200 m³/h
Rotating speed 1.330 1/min
Speed controllable
Type of voltage Alternating current
Rated voltage 230 V
Nominal output 248 W
Inom 1,1 A
Imax 1,12 A
Degree of protection IP X4
Housing material Sheet steel, powder coated
Weight 11,9 kg
Weight including packaging 13,5 kg
Nominal size 355 mm
Width with packaging 525 mm
Height with packaging 445 mm
Depth with packaging 520 mm
Airstream temperature at IMax -20 °C up to 40 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799808701
Article number 0080.0870



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, S1 (dB(A))

29

45

38

36

38

40

24

16

49

LWA2, Level 2 (dB(A))

34

50

45

45

46

50

46

26

56

LWA2, Level 3 (dB(A))

35

53

51

55

59

57

56

47

65

LWA2, Level 4 (dB(A))

35

49

52

58

61

61

58

54

68

LWA2, Level 5 (dB(A))

38

47

54

61

62

64

61

56

70

LWA5, S1 (dB(A))

27

40

43

45

68

55

41

29

69

LWA5, S2 (dB(A))

38

44

53

55

60

76

68

46

78

LWA5, S3 (dB(A))

42

48

62

67

69

68

77

64

80

LWA5, S4 (dB(A))

44

50

64

71

74

71

76

71

81

LWA5, S5 (dB(A))

48

52

65

72

76

73

77

75

83

LWA6, S1 (dB(A))

27

45

44

45

54

55

38

30

59

LWA6, S2 (dB(A))

31

46

56

54

58

68

64

44

71

LWA6, S3 (dB(A))

41

50

62

63

67

69

74

67

78

LWA6, S4 (dB(A))

46

53

65

67

73

73

74

73

81

LWA6, S5 (dB(A))

47

55

66

70

73

76

73

73

82

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Accessories

ERR 35/1 - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Fixing cuff ELR 35 No longer available for delivery 0092.0115 on request
  • On the notes
Mounting foot FUR 35/1 No longer available for delivery 0036.0090 on request
  • On the notes

General accessories

Product description

Productdescription

ERR 35/1

short description

Centrifugal duct fan, DN 355, alternating current

Product description

Special features

  • Efficient centrifugal duct fan made of powder-coated sheet steel.
  • Suitable for industrial and residential installations.
  • Centrifugal impeller with backwards curved blades.
  • Quiet and powerful.
  • Reduced space requirement due to compact dimensions.
  • For direct installation between ducts, for ventilation or air extraction, depending on the installation position.
  • Round connection sockets on inlet and outlet side adapted to standard ducts.
  • Mounting foot available as accessory.

Air flow direction

  • Airstream and rotational directions are indicated by arrows marked on the fan housing

Motor

  • Single-phase AC motor.
  • External rotor capacitor motor.
  • Operating capacitor in the terminal box is ready to be connected.
  • Speed-controllable.
  • Thermal overload protection (temperature sensor in motor winding) as a standard feature.
  • The overload protection automatically switches the fan off in the event of overheating.
  • Robust motor with ball bearings, maintenance-free.
  • IP X4 degree of protection when installed in ventilation ducts with at least 1 m of duct on the inlet and outlet sides.

Installation information

  • Can be fitted in any position.
  • Use optional ELR flexible cuffs to prevent transfer of vibrations to the duct system.

Electrical connection

  • Externally fitted terminal box with cable guide bushes.

Safety information

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet or outlet. To do this, fit an optional SGR protective grille.

Table of contents

Wiring diagram

ERR 35/1 - Wiring diagram

ERH... electric air heater with LW 9 air flow monitor and ST speed controller

K1 - heating release (US16T)

ERR .. / 1 - centrifugal fan

LW 9 - air flow monitor

ETL 16 P - electronic temperature controller

DTL 16 P - electronic temperature controller

FL 30P channel sensor

ST.. STU.., STS.. speed controller

ERH - electric air heater

F1 - temperature limiter

F2 - safety temperature limiter

N - night reduction

  1. Only with DTL 16 P


Centrifugal fan


Centrifugal fan with ST/STU/STS speed controller


Centrifugal fan with TRE 5-step transformer


Duct fan with ERH 16-2 R electric air heater

S1 - system on

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

ERH...R electrical air heater: ERH16-2R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL30P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P



Duct fan with electric air heater DRH 16-5R and DRH 20-6R

S1 - system on

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

DRH...R electric air heater: DRH16-2R or DRH20-6R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL30P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P



Duct fan with DRH 25-9R, DRH 31-12R, DRH 35-12R and DRH 40-12R electric air heaters

S1 - system on

S - sensor

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

DRH...R electric air heater: DRH 25-9R, DRH 31-12R, DRH 35-12R, DRH 40-12R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL60P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P
