Temperature control system
ETL 16 P
No longer available for deliveryManufacturer: MAICO
Electronic temperature controller for controlling electric air heaters, 230 VAC/50 Hz, max. 16 A
Product data sheet
Characteristic curve
Dimensioned drawing
Technical data
ETL 16 P - Technical data
Accessories / Accessories of
ETL 16 P - Accessories / Accessories of
Specific accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Channel sensor | FL 30 P | 0157.0780 | on request | |
| Room sensor | FR 30 P | 0157.0781 | on request |
is a special accessory of
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Electrical air heater | For ERH, DRH duct system | - | - | - |
is a general accessory of
Product description
Productdescription
short description
Electronic temperature controller for controlling electric air heaters, 230 VAC/50 Hz, max. 16 AProduct description
- Electronic temperature controller for controlling the ERH, DRH electrical air heaters.
- With integrated sensor for measuring the room temperature.
- Optional control of supply air temperature or room temperature.
- Triac regulator with pulse packet control.
- Pulse period: 60 s.
- Night reduction can be set from 0 K to 10 K below the setpoint temperature.
- DTL 16 P: With additional input for setting minimum or maximum supply air temperatures. Possible only in combination with FL 30 P channel sensor.
- Accessories: FL 30 P channel sensor for measuring the air temperature in ventilation channels; FR 30 P room sensor for measurements in enclosed areas.
Wiring diagram
ETL 16 P - Wiring diagram

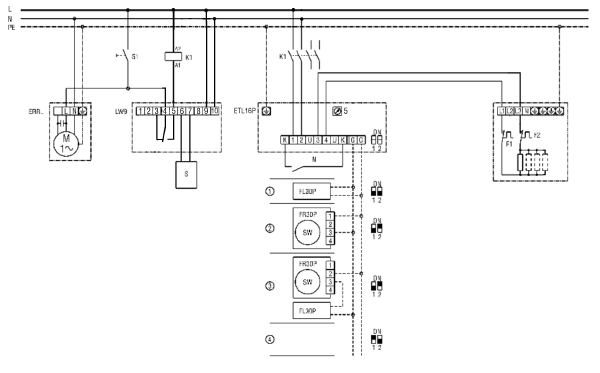

ETL 16 P temperature control system with ERH... electric air heater and LW 9 air flow monitor
1 - external channel sensor and internal setpoint generator in ETL 16 P
2 - external room sensor and external setpoint generator
3 - external channel sensor and external setpoint generator
4 - internal room sensor and internal setpoint generator in ETL 16 P
5 - 0...10 K setting for night reduction
S1 - system on
K1 - heating release (US16)
LW 9 - air flow monitor
FL 30 P - channel sensor
FR 30 P - room sensor
ERH.. - electric air heater
F1 - temperature limiter
F2 - safety temperature limiter
S - sensor
SW- setpoint
N - night reduction
ERH... electric air heater with LW 9 air flow monitor and ST speed controller
K1 - heating release (US16T)
ERR .. / 1 - centrifugal fan
LW 9 - air flow monitor
ETL 16 P - electronic temperature controller
DTL 16 P - electronic temperature controller
FL 30P channel sensor
ST.. STU.., STS.. speed controller
ERH - electric air heater
F1 - temperature limiter
F2 - safety temperature limiter
N - night reduction
- Only with DTL 16 P

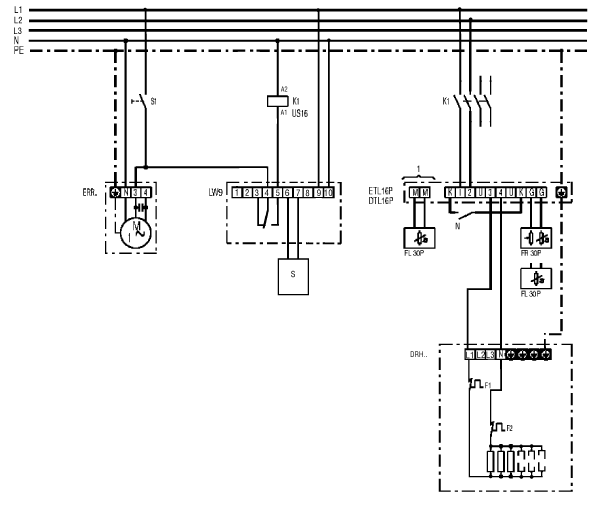

ETL 16 P temperature control system with DRH... electric air heater and LW 9 air flow monitor
1 - external channel sensor and internal setpoint generator in ETL 16 P
2 - external room sensor and external setpoint generator
3 - external channel sensor and external setpoint generator
4 - internal room sensor and internal setpoint generator in ETL 16 P
5 - 0...10K setting for night reduction
S1 - system on
K1 - heating release (US16)
LW 9 - air flow monitor
FL 30 P - channel sensor
FR 30 P - room sensor
DRH... - electric air heater
F1 - temperature limiter
F2 - safety temperature limiter
S - sensor
SW- setpoint
N - night reduction
