Internal grille

LGR 32/6

Article number: 0151.0354
Manufacturer: MAICO
Internal grille for ventilation and air extraction for installation in ducts, sheet steel, galvanised, max.... more information

Product data sheet
LGR 32/6 IM0009266.PNG Internal grille for ventilation and air extraction for installation in ducts, sheet steel, galvanised, max. 200 m³/h
Back
  • On the notes
LGR 32/6
LGR 42/6
LGR 52/6
LGR 62/6
LGR 82/6
LGR 32/12
LGR 42/12
LGR 52/12
LGR 62/12
LGR 82/12

Characteristic curve

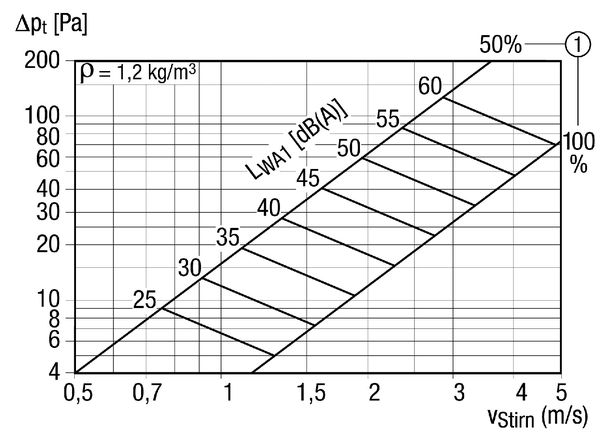

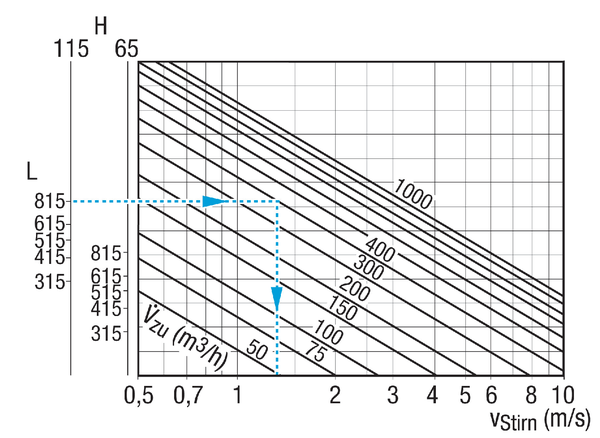

LGR 32/6 - Characteristic curve Exhaust air front side velocity

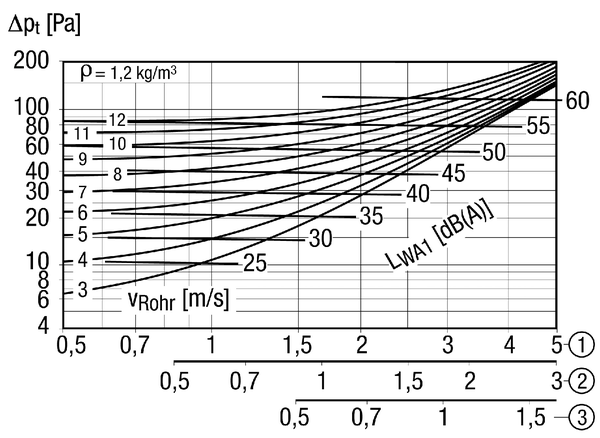

LGR 32/6 - Characteristic curve Exhaust air pressure losses

  1. Slot slide position OPEN in %

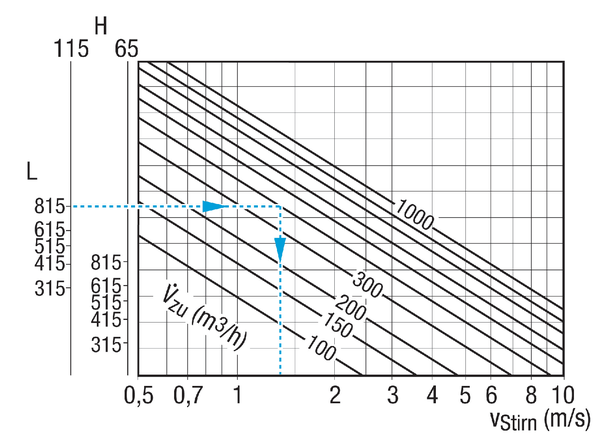

LGR 32/6 - Characteristic curve Supply air front side velocity

LGR 32/6 - Characteristic curve Supply air pressure losses

  1. Front side velocity with slot slide position 100 % open
  2. Front side velocity with slot slide position 50 % open
  3. Front side velocity with slot slide position 25 % open

Dimensioned drawing

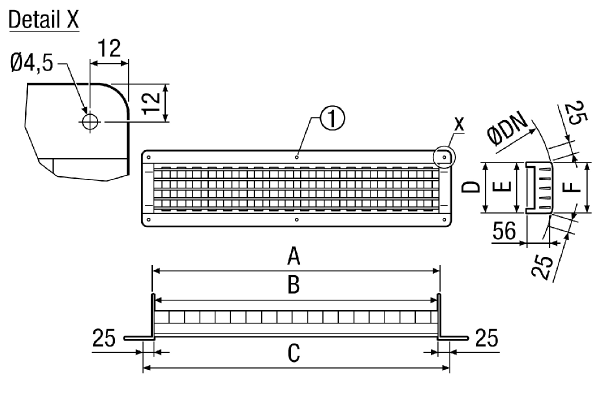

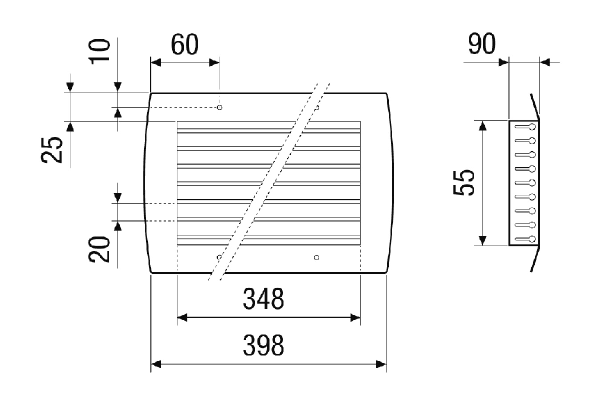

LGR 32/6 - Dimensioned drawing [mm]

  1. With LGR 82/6 and LGR 82/12 only
A: 315 mm
B: 312 mm
C: 358 mm
D: 65 mm
E: 60 mm
F: 58 mm

Technical data

LGR 32/6 - Technical data

Article LGR 32/6
Air direction Ventilation and air extraction
Practical air throughput at 75% opening of the slot slide 100 m³/h - 200 m³/h
Installation Inside
Installation site Duct
Material Sheet steel, galvanised
Weight 0,66 kg
Weight including packaging 0,78 kg
Suitable for nominal size 140 mm - 400 mm (ideal 250 mm)
Width 358 mm
Height 113 mm
Depth 56 mm
Width with packaging 392 mm
Height with packaging 125 mm
Depth with packaging 70 mm
Packing unit 1 piece
Range C
GTIN (EAN) 4012799513544
Article number 0151.0354

Accessories of

LGR 32/6 - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centrifugal duct fan ERR 16/1 0080.0273 on request
  • On the notes
Centrifugal duct fan ERR 16/1 S 0080.0274 on request
  • On the notes
Centrifugal duct fan ERR 20/1 0080.0275 on request
  • On the notes
Centrifugal duct fan ERR 25/1 0080.0277 on request
  • On the notes
Centrifugal duct fan ERR 31/1 0080.0278 on request
  • On the notes
Centrifugal duct fan ERR 20/1 EC Discontinued product 0073.0570 on request
  • On the notes
Centrifugal duct fan ERR 25/1 EC Discontinued product 0073.0571 on request
  • On the notes
Centrifugal duct fan ERR 31/1 EC 0073.0572 on request
  • On the notes
Centrifugal duct fan ERR 15/2 EC New development 0073.0585 on request
  • On the notes
Centrifugal duct fan ERR 16/2 EC New development 0073.0586 on request
  • On the notes
Centrifugal duct fan ERR 20/2 EC New development 0073.0587 on request
  • On the notes
Centrifugal duct fan ERR 25/2 EC New development 0073.0588 on request
  • On the notes

Product description

Productdescription

LGR 32/6

short description

Internal grille for ventilation and air extraction for installation in ducts, sheet steel, galvanised, max. 200 m³/h

Product description

  • Internal grille with front frame.
  • For installation in folded spiral-seams ducts.
  • With horizontal, rotatable air operated lamella with fitted bearings, located on the front side.
  • Air flow control by means of adjustable slot slides.
  • Ideally (DN 250 for 65 mm mounting height, DN 500 for 115 mm mounting height), the internal grille is fully on the duct.
  • With visible screw holes.
