Disk valve, metal

TFZ 12

Article number: 0151.0365
Manufacturer: MAICO
Disk valve for supply air, sheet steel, white, DN 125, for domestic ventilation max. 60 m³/h, EBR-D 12... more information

Product data sheet
TFZ 12 IM0011709.PNG Disk valve for supply air, sheet steel, white, DN 125, for domestic ventilation max. 60 m³/h, EBR-D 12 mounting frame required

Characteristic curve

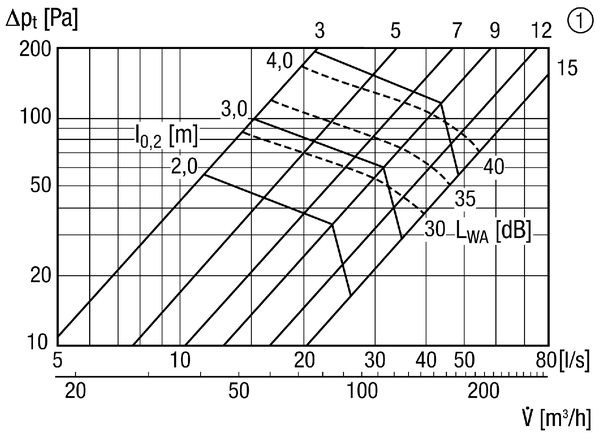

TFZ 12 - Characteristic curve Gap opening in mm

Dimensioned drawing

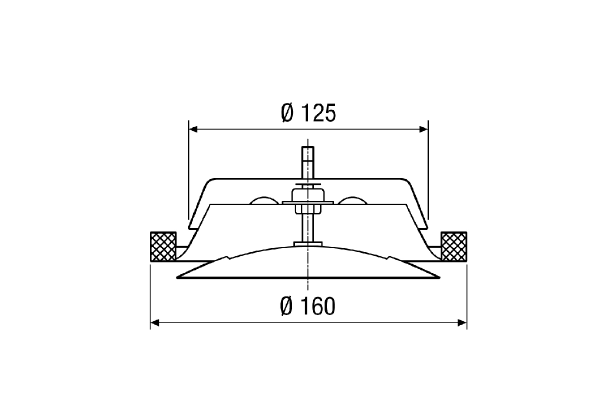

TFZ 12 - Dimensioned drawing [mm]

Technical data

TFZ 12 - Technical data

Article TFZ 12
Air direction Ventilation
Max. volumetric flow 60 m³/h
Material Sheet steel, galvanised
Colour Pure white, similar to RAL 9010, gloss 70
Weight 0,29 kg
Weight including packaging 0,3 kg
Suitable for nominal size 125 mm
Width 160 mm
Height 160 mm
Depth 163 mm
Width with packaging 163 mm
Height with packaging 68 mm
Depth with packaging 163 mm
Packing unit 1 piece
Range C
GTIN (EAN) 4012799513650
Article number 0151.0365

Accessories / Accessories of

TFZ 12 - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Mounting frame for TFA/TFZ EBR-D 12 0092.0494 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Aeronom room air system WS 170 - - -
Centralised ventilation unit WS 160 Flat - - -
Centralised ventilation unit WS 170 air@home - - -
Centralised ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Centralised ventilation unit Trio - - -
Centrifugal flat box EFR centrifugal flat box - - -
Sound-insulated ventilation box ESR EC sound-insulated ventilation box - - -
Centrifugal flat box EFR centrifugal flat box - - -
Sound-insulated ventilation box ESR-2 sound-insulated ventilation box - - -
Sound-insulated ventilation box ESR-2 sound-insulated ventilation box, other art. no. - - -
Sound-insulated ventilation box ESR-2 S, DSR-2 S sound-insulated ventilation box - - -
Sound-insulated ventilation box ESR -2 EC sound-insulated ventilation box - - -
Centralised ventilation unit WS 120 Trio LL 0095.0655 on request
  • On the notes
Centralised ventilation unit WS 120 Trio LLV 0095.0656 on request
  • On the notes
Centralised ventilation unit WS 120 Trio LR 0095.0657 on request
  • On the notes
Centralised ventilation unit WS 120 Trio LRV 0095.0658 on request
  • On the notes
Centralised ventilation unit WS 120 Trio QL 0095.0659 on request
  • On the notes
Centralised ventilation unit WS 120 Trio QLV 0095.0660 on request
  • On the notes
Centralised ventilation unit WS 120 Trio QR 0095.0661 on request
  • On the notes
Centralised ventilation unit WS 120 Trio QRV 0095.0662 on request
  • On the notes
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 310 R 0095.0260 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised ventilation unit WR 410 R 0095.0261 on request
  • On the notes
Ventilation unit WS 75 Powerbox S 0095.0645 on request
  • On the notes
Centralised ventilation unit WS 150 R No longer available for delivery 0095.0057 on request
  • On the notes
Centralised ventilation unit WS 150 L No longer available for delivery 0095.0058 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Aeronom room air system WS 600 No longer available for delivery 0095.0056 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WR 600 No longer available for delivery 0095.0080 on request
  • On the notes
Aeronom room air system WRG 400 EC No longer available for delivery 0082.0061 on request
  • On the notes
Aeronom room air system WRG 300 EC No longer available for delivery 0082.0060 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes
Centralised ventilation unit WRG 400 EC No longer available for delivery 0082.0063 on request
  • On the notes

Product description

Productdescription

TFZ 12

short description

Disk valve for supply air, sheet steel, white, DN 125, for domestic ventilation max. 60 m³/h, EBR-D 12 mounting frame required

Product description

  • Disk valve for ventilation.
  • Attractive, flat model.
  • Linear air flow control via rotatable valve disk.
  • With bayonet closure for mounting frame.
  • Accessories needed: Mounting frame with EBR-D / EBR sealing.
