Supply air valve

ZWVQ 10

Article number: 0152.0064
Manufacturer: MAICO
Supply air valve with blower and sound insulation effect, white powder-coated steel sheet, wall installation,... more information
Application examples: Living room, Office, Doctor's practice, Day room, New build
Product data sheet
ZWVQ 10 IM0012733.PNG Supply air valve with blower and sound insulation effect, white powder-coated steel sheet, wall installation, DN 100, for domestic ventilation max. 50 m³/h

Characteristic curve

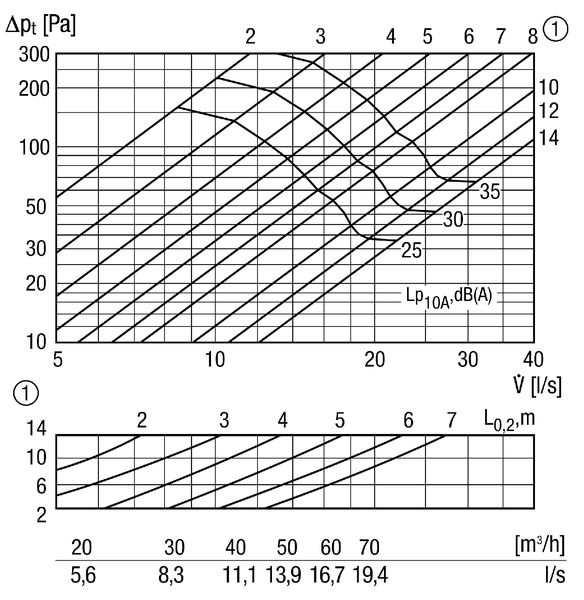

ZWVQ 10 - Characteristic curve ZWVQ 10 pressure losses

  1. Open rows of holes

Dimensioned drawing

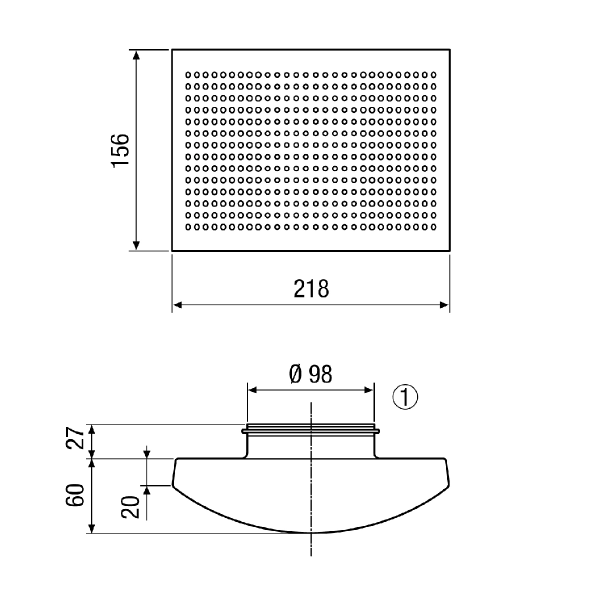

ZWVQ 10 - Dimensioned drawing [mm]

  1. Connection couplings with rubber seal

Technical data

ZWVQ 10 - Technical data

Article ZWVQ 10
Air direction Ventilation
Max. volumetric flow 50 m³/h
Installation Inside
Installation site Wall
Material Sheet steel, galvanised
Colour White powder-coated, similar to RAL 9010
Weight 0,67 kg
Weight including packaging 0,69 kg
Nominal size 100 mm
Width 218 mm
Height 156 mm
Depth 60 mm
Width with packaging 220 mm
Height with packaging 160 mm
Depth with packaging 90 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799520641
Article number 0152.0064
