Centralised exhaust air unit

ZEG EC

No longer available for delivery
Article number: 0086.0205
Manufacturer: MAICO
Centralised exhaust air unit without heat recovery, with EC technology and wireless remote control
Application examples: Low-energy house, Single-family house, Apartment, Living room, Redevelopment
Product data sheet

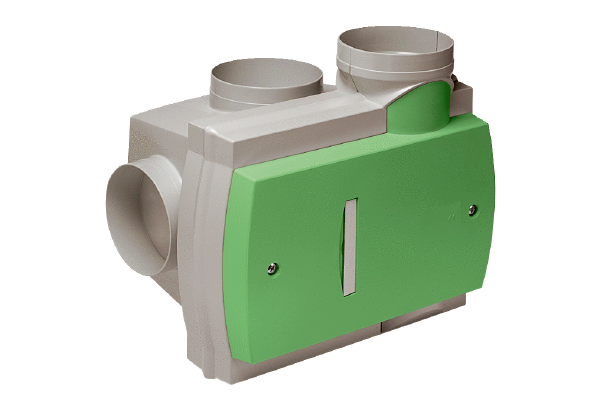

ZEG EC IM0011433.PNG Centralised exhaust air unit without heat recovery, with EC technology and wireless remote control

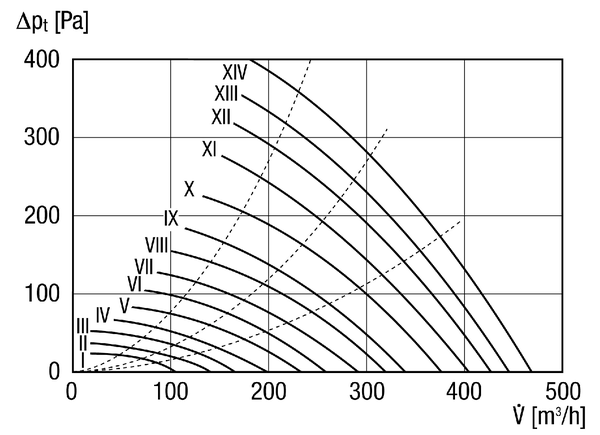

Characteristic curve

ZEG EC - Characteristic curve

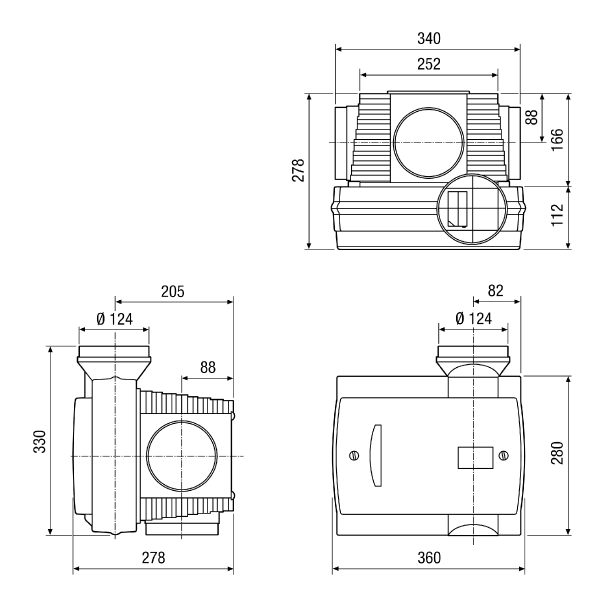

Dimensioned drawing

ZEG EC - Dimensioned drawing [mm]

Technical data

ZEG EC - Technical data

Article ZEG EC
Air flow volume 420 m³/h / System pressure at 100 Pa
Speed controllable
SEC average -19,6 kWh/(m²*a)
Energy efficiency class E
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz
Power consumption 6 W - 81 W
Imax 0,06 A - 0,6 A
Degree of protection IP 20
Installation site Cellar / Storage tank / Jamb wall / Utility room / Heating room
Installation position vertical / horizontal
System type Centralised
Material Synthetic material
Weight 3,3 kg
Weight including packaging 3,755 kg
Connection diameter 125 mm
Width with packaging 365 mm
Height with packaging 305 mm
Depth with packaging 355 mm
Sound pressure level 21 dB(A) / 52 dB(A) / Measured with 1m distance from the vent, according to the factory setting.
Packing unit 1 piece
Range K
GTIN (EAN) 4012799862055
Article number 0086.0205

Accessories

ZEG EC - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Room air control ZEG EC-FB No longer available for delivery 0157.0411 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Roof outlet DF - - -
Roofing tile DP - - -
Mounting clamp BS - - -
Rain protection grille RG - - -
MAICOTherm ventilation duct system, thermally insulated MAICOTherm MT thermally insulated ventilation duct system - - -
MAICOFlex ventilation duct system, round MAICOFlex MF flexible, round ventilation duct system - - -
MAICOFlex ventilation duct system, round MAICOFlex flexible, round ventilation duct system - - -
Roofing tile DP - - -
MAICO FFS ventilation duct system, flat MAICO FFS flexible flat ventilation duct system - - -
Stainless steel cowl LH-V2A 12 0151.0378 on request
  • On the notes
Stainless steel cowl LH-V2A 15 0151.0379 on request
  • On the notes
Outgoing air wall connection KW-FL 12E 0152.0075 on request
  • On the notes
Outgoing air wall connection KW-FL 12W 0152.0076 on request
  • On the notes
Outgoing air wall connection KW-FL 16E 0152.0079 on request
  • On the notes
Outgoing air wall connection KW-FL 16W 0152.0080 on request
  • On the notes
Outside air opening ALD 10 0152.0054 on request
  • On the notes
Outside air opening ALD 125 Discontinued product 0152.0067 on request
  • On the notes
Outside air opening ALD 125 VA Discontinued product 0152.0068 on request
  • On the notes
Outside air opening ALD 160 Discontinued product 0152.0069 on request
  • On the notes
Outside air opening ALD 160 VA Discontinued product 0152.0070 on request
  • On the notes
Internal grille ESG 10/2 0059.0947 on request
  • On the notes
Door ventilation grille MLK 30 white 0151.0123 on request
  • On the notes
Door ventilation grille MLK 45 white 0151.0126 on request
  • On the notes
Exhaust and supply air valve AZV 100 0152.0087 on request
  • On the notes
Disk valve, synthetic material TK 10 0151.0192 on request
  • On the notes
Disk valve, synthetic material TK 12 0151.0198 on request
  • On the notes
Disk valve, metal TM 10 0151.0194 on request
  • On the notes
Disk valve, metal TM 12 0151.0196 on request
  • On the notes
Disk valve, stainless steel TM-V2A 10 0151.0374 on request
  • On the notes
Disk valve, stainless steel TM-V2A 12 0151.0375 on request
  • On the notes
Disk valve, metal TFA 10 0151.0369 on request
  • On the notes
Disk valve, metal TFA 12 0151.0370 on request
  • On the notes
Mounting frame for TFA/TFZ EBR-D 10 0092.0493 on request
  • On the notes
Mounting frame for TFA/TFZ EBR-D 12 0092.0494 on request
  • On the notes
Grease filter element for exhaust air FFE 10 0092.0506 on request
  • On the notes
Flexible aluminium duct AFR 125 0055.0091 on request
  • On the notes
Tubular sound absorber RSR 12 Remaining parts 0092.0312 on request
  • On the notes
Tubular sound absorber RSR 12-1 0092.0593 on request
  • On the notes
Slide-in sound absorber SDE 8 0044.0213 on request
  • On the notes
Slide-in sound absorber SDE 10 0044.0214 on request
  • On the notes
Slide-in sound absorber SDE 12 0044.0215 on request
  • On the notes
Tubular sound absorber RSR 12/50 No longer available for delivery 0092.0322 on request
  • On the notes
Stainless steel cowl LH-V2A 16 No longer available for delivery 0151.0380 on request
  • On the notes
Folded spiral-seams duct WFR 125 No longer available for delivery 0055.0077 on request
  • On the notes
Internal grille, adjustable AZE 100 No longer available for delivery 0059.0959 on request
  • On the notes
Outside air opening ALD 10 T No longer available for delivery 0152.0055 on request
  • On the notes
Outside air opening ZE 45 F white No longer available for delivery 0152.0044 on request
  • On the notes

Product description

Productdescription

ZEG EC

short description

Centralised exhaust air unit without heat recovery, with EC technology and wireless remote control

Product description

Features

  • Central ventilation unit.
  • Easy-to-clean housing.
  • The unit is fitted with a quiet-running electric motor.
  • With 3 intake sockets and an outgoing air socket suitable for DN 125 ducts.
  • Motor and electronics are integrated.
  • 14 speed levels in total.
  • Preset to levels 1, 4 and 8 as standard ("Low", "Normal" and "High").
  • The preset speed levels can be easily changed.
  • With integrated humidity sensor.
  • ZEG EC-FB wireless remote control included in scope of delivery.

Controller

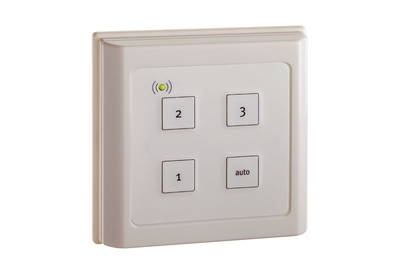

  • Wireless ZEG EC-FB remote control with humidity sensor activation (humidity sensor included in the ZEG-EC).
  • LED display on remote control with details of speed level 1, 2, 3 or automatic.
  • Automatic humidity-dependent control.
  • Settings:
    • 1. Low speed - standard position during the night
    • 2. Normal speed - standard position during the day
    • 3. High speed when cooking and showering
    • 4. Automatic - when in this position, the exhaust air unit runs at low speed until the measured relative air humidity rises significantly (can be set to 5 % or 10 %). The exhaust air unit then accelerates for 30 minutes or 1 hour (depending on setting) to "normal" speed and then returns to "low" speed.
  • If required, a second remote control can be connected.

Mounting instructions

  • The remote control can be installed in damp rooms - but not in the shower cubicle itself. The remote control must not be sprayed (relative humidity of less than 90 %).
  • The ZEG EC unit must be installed in a dry room - it must not come into contact with any spray (relative humidity of less than 90 %).

Electrical connection

  • Flexible connecting cable, 1.5 m long.

Table of contents

Wiring diagram

ZEG EC - Wiring diagram

GNYE = Yellow / green

BU = Blue

BN = Brown



Predecessor - successor

ZEG EC - Successor

Product type Name Art. No. Action
Centralised exhaust air unit ZEG2 EC 0086.0206
  • On the notes
