Slide-in sound absorber

SDE 12

Article number: 0044.0215
Manufacturer: Jeven
Slide-in sound absorber including all plugs, length: 50 mm, DN 125
Application examples: Single-family house, Multiple family unit, Office, Commercial premises, Waiting room
Product data sheet
SDE 12 IM0012378.PNG Slide-in sound absorber including all plugs, length: 50 mm, DN 125

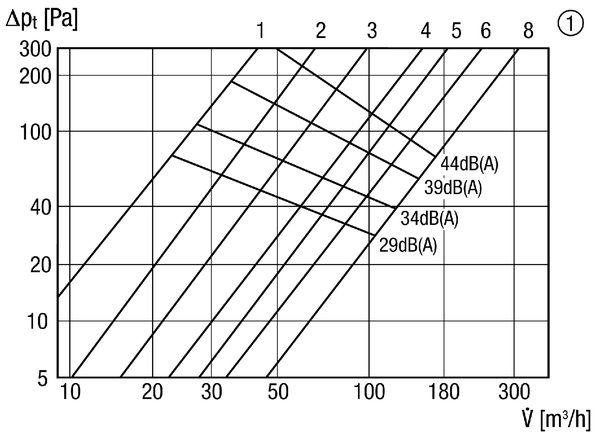

Characteristic curve

SDE 12 - Characteristic curve

  1. Number of openings

Dimensioned drawing

Technical data

SDE 12 - Technical data

Article SDE 12
Installation site Duct
Material PU foam
Weight 0,07 kg
Weight including packaging 0,1 kg
Nominal size 125 mm
Suitable for nominal size 125
External diameter 127 mm
Width 120 mm
Height 120 mm
Depth 50 mm
Width with packaging 120 mm
Height with packaging 120 mm
Depth with packaging 50 mm
Insertion loss at 63 Hz 5 dB / 2 dB / 1 dB
Insertion loss at 125 Hz 6 dB / 2 dB / 1,5 dB
Insertion loss at 250 Hz 5 dB / 2,5 dB / 1,5 dB
Insertion loss at 500 Hz 5 dB / 3 dB / 2,5 dB
Insertion loss at 1 kHz 12 dB / 8,5 dB / 6 dB
Insertion loss at 2 kHz 13 dB / 8 dB / 5 dB
Insertion loss at 4 kHz 19 dB / 14 dB / 11 dB
Insertion loss at 8 kHz 21 dB / 19 dB / 18 dB
Insertion loss note indications for 1, 3 and 5 openings
Packing unit 1 piece
Range C
GTIN (EAN) 4012799442158
Article number 0044.0215

Accessories of

SDE 12 - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Aeronom room air system WS 170 - - -
Centrifugal flat box EFR 12 0080.0572 on request
  • On the notes
Flexible aluminium duct AFR 125 0055.0091 on request
  • On the notes
Centralised ventilation unit WS 150 R No longer available for delivery 0095.0057 on request
  • On the notes
Centralised ventilation unit WS 150 L No longer available for delivery 0095.0058 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Aeronom room air system WS 600 No longer available for delivery 0095.0056 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WR 600 No longer available for delivery 0095.0080 on request
  • On the notes
Aeronom room air system WRG 400 EC No longer available for delivery 0082.0061 on request
  • On the notes
Aeronom room air system WRG 300 EC No longer available for delivery 0082.0060 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes
Centralised ventilation unit WRG 400 EC No longer available for delivery 0082.0063 on request
  • On the notes
Centrifugal flat box EFR 10 R No longer available for delivery 0080.0571 on request
  • On the notes
Centrifugal flat box EFR 12 R No longer available for delivery 0080.0573 on request
  • On the notes
Folded spiral-seams duct WFR 125 No longer available for delivery 0055.0077 on request
  • On the notes

Product description

Productdescription

SDE 12

short description

Slide-in sound absorber including all plugs, length: 50 mm, DN 125

Product description

  • Can be used as sound absorber or for pressure control in flexible and folded spiral-seams ducts.
  • Suitable for ventilation and air extraction.
  • Can be adjusted to the given circumstances by removing plugs.
  • Small hole intended for measuring the air volumes.
  • Low space requirement.
  • Simple to install.
  • Can be retro-fitted.
  • Fire- and mould-proof foam, compliant with emission class M1 requirements.
  • Easy to clean with a vacuum cleaner.
