Slide-in sound absorber

SDE 16

Article number: 0044.0216
Manufacturer: Jeven
Slide-in sound absorber including all plugs, length: 50 mm, DN 160
Application examples: Single-family house, Multiple family unit, Office, Commercial premises, Waiting room
Product data sheet
SDE 16 IM0012378.PNG Slide-in sound absorber including all plugs, length: 50 mm, DN 160
Back
  • On the notes
SDE 8
SDE 10
SDE 12
SDE 16

Characteristic curve

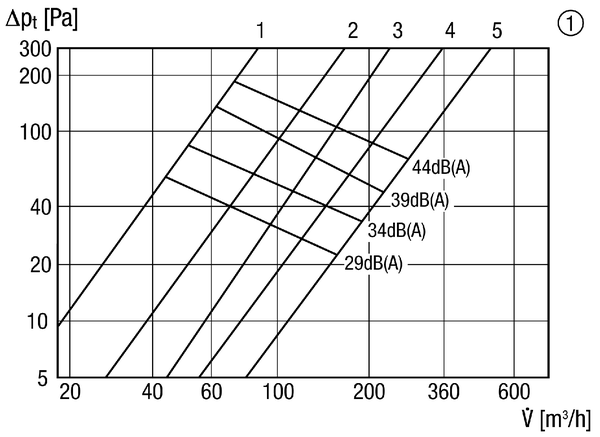

SDE 16 - Characteristic curve

  1. Number of openings

Dimensioned drawing

Technical data

SDE 16 - Technical data

Article SDE 16
Installation site Duct
Material PU foam
Weight 0,1 kg
Weight including packaging 0,13 kg
Nominal size 160 mm
Suitable for nominal size 160
External diameter 162 mm
Width 165 mm
Height 165 mm
Depth 50 mm
Width with packaging 165 mm
Height with packaging 165 mm
Depth with packaging 50 mm
Insertion loss at 63 Hz 6,5 dB / 3 dB / 1,5 dB
Insertion loss at 125 Hz 7 dB / 3,5 dB / 2,5 dB
Insertion loss at 250 Hz 4 dB / 2,5 dB / 1,5 dB
Insertion loss at 500 Hz 9,5 dB / 5,5 dB / 3,5 dB
Insertion loss at 1 kHz 13 dB / 8,5 dB / 6 dB
Insertion loss at 2 kHz 16 dB / 8,5 dB / 6 dB
Insertion loss at 4 kHz 18 dB / 15 dB / 12 dB
Insertion loss at 8 kHz 22 dB / 20 dB / 17 dB
Insertion loss note indications for 1, 3 and 5 openings
Packing unit 1 piece
Range C
GTIN (EAN) 4012799442165
Article number 0044.0216

Accessories of

SDE 16 - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Aeronom room air system WS 600 No longer available for delivery 0095.0056 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WR 600 No longer available for delivery 0095.0080 on request
  • On the notes
Aeronom room air system WRG 400 EC No longer available for delivery 0082.0061 on request
  • On the notes
Aeronom room air system WRG 300 EC No longer available for delivery 0082.0060 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes
Centralised ventilation unit WRG 400 EC No longer available for delivery 0082.0063 on request
  • On the notes
Folded spiral-seams duct WFR 160 No longer available for delivery 0055.0079 on request
  • On the notes

Product description

Productdescription

SDE 16

short description

Slide-in sound absorber including all plugs, length: 50 mm, DN 160

Product description

  • Can be used as sound absorber or for pressure control in flexible and folded spiral-seams ducts.
  • Suitable for ventilation and air extraction.
  • Can be adjusted to the given circumstances by removing plugs.
  • Small hole intended for measuring the air volumes.
  • Low space requirement.
  • Simple to install.
  • Can be retro-fitted.
  • Fire- and mould-proof foam, compliant with emission class M1 requirements.
  • Easy to clean with a vacuum cleaner.
