External cover

PPB 30 AK

Article number: 0093.1498
Manufacturer: MAICO
A plastic external cover, colour: traffic white, similar to RAL 9016, is needed as an accessory for the PPB 30... more information

Product data sheet

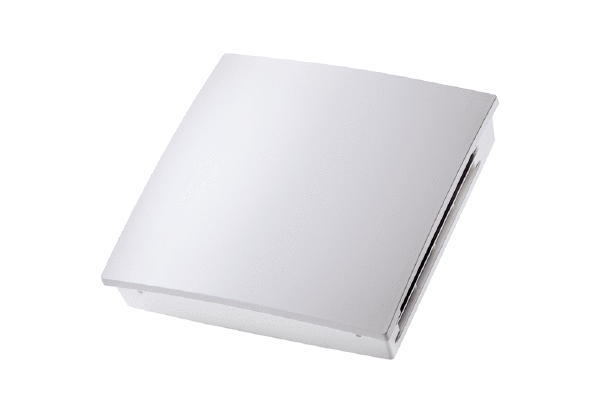

PPB 30 AK IM0018185.PNG A plastic external cover, colour: traffic white, similar to RAL 9016, is needed as an accessory for the PPB 30 K and PPB 30 O final assembly kits.
Back
  • On the notes
PPB 30 AK
PPB 30 AE
PPB 30 AW
PPB 30 AS

Characteristic curve

Dimensioned drawing

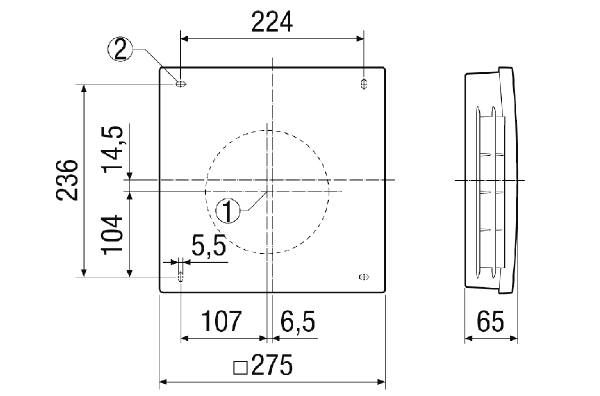

PPB 30 AK - Dimensioned drawing [mm]

  1. Wall sleeve centre
  2. Fixing holes

Technical data

PPB 30 AK - Technical data

Article PPB 30 AK
Installation site Outside wall
Installation position horizontal
Material Synthetic material
Housing material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 0,85 kg
Weight including packaging 1,06 kg
Width 275 mm
Height 275 mm
Depth 65 mm
Width with packaging 295 mm
Height with packaging 320 mm
Depth with packaging 87 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799991755
Article number 0093.1498

Accessories / Accessories of

PPB 30 AK - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Compensating frame PPB 30 ARW 0093.1525 on request
  • On the notes

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Final assembly kit PPB 30 K 0095.0246 on request
  • On the notes
Final assembly kit PPB 30 O 0095.0245 on request
  • On the notes
Final assembly kit PPB 30 RC 0095.0244 on request
  • On the notes

Product description

Productdescription

PPB 30 AK

short description

A plastic external cover, colour: traffic white, similar to RAL 9016, is needed as an accessory for the PPB 30 K and PPB 30 O final assembly kits.

Product description

  • Plastic external cover.
  • Colour: traffic white, similar to RAL 9016.
  • The grille lamellae are flow-optimised to minimise air disturbances and the exhaust air is kept away from the exterior wall. This greatly minimises discolouration and dirt deposits on the external façade.
  • An external cover is needed as an accessory for the PPB 30 K and PPB 30 O final installation kits.
