Final assembly kit

PPB 30 O

Article number: 0095.0245
Manufacturer: MAICO
Final installation kit for PushPull Balanced PPB 30 O single-room ventilation unit with heat recovery,... more information

Product data sheet
PPB 30 O IM0018181.PNG Final installation kit for PushPull Balanced PPB 30 O single-room ventilation unit with heat recovery, comprising 2 fans, 2 ceramic heat exchangers, internal cover with 2 x ISO Coarse 45 % (G3) filters, object version: without humidity sensor, accessories needed: shell sleeve, external cover and RLS 45 K or RLS 45 O room air control, optional accessories: extension kit, wall block, compensating frame and sensors

Characteristic curve

Dimensioned drawing

PPB 30 O - Dimensioned drawing [mm]

  1. Wall sleeve centre
  2. Fixing holes
  3. Cable entry

Technical data

PPB 30 O - Technical data

Article PPB 30 O
Model Object version
Air flow volume 5 m³/h / 12 m³/h / 18 m³/h / 22 m³/h / 26 m³/h
SEC average -33,46 kWh/(m²*a)
Energy efficiency class A
Rated voltage 12 V DC
SPI value in accordance with DIN EN 13141-8 0,19 Wh/m³
Maximum power consumption 1,7 W / 2,5 W / 3,4 W / 4,4 W / 5,3 W
Degree of protection IP X4
Installation position horizontal
System type Decentralised
Material Synthetic material
Housing material Synthetic material
Heat exchanger material Ceramic
Colour Traffic white, similar to RAL 9016
Weight 4,63 kg
Weight including packaging 5,7 kg
Type of filter Outside and exhaust air filter
Filter class ISO Coarse 45 % (G3)
Connection diameter 160 mm
Width 275 mm
Height 275 mm
Depth 410 mm
Width with packaging 305 mm
Height with packaging 325 mm
Depth with packaging 490 mm
Wall has to be broken through 162 to 182 mm
Minimum wall thickness 320 millimeters
Degree of heat provision with reference volumetric flow according to DIN EN 13141-8 73,3 %
Required room air control RLS 45 K or RLS 45 O
Sound pressure level 23 dB(A) / 35 dB(A) / 43 dB(A) / 48 dB(A) / 51 dB(A) / Distance 1 m, free-field conditions
Rated max. element normal difference in noise level Dn,w 37 dB
Packing unit 1 piece
Range K
GTIN (EAN) 4012799952459
Article number 0095.0245

Product description

Productdescription

PPB 30 O

short description

Final installation kit for PushPull Balanced PPB 30 O single-room ventilation unit with heat recovery, comprising 2 fans, 2 ceramic heat exchangers, internal cover with 2 x ISO Coarse 45 % (G3) filters, object version: without humidity sensor, accessories needed: shell sleeve, external cover and RLS 45 K or RLS 45 O room air control, optional accessories: extension kit, wall block, compensating frame and sensors

Product description

Approvals and certificates

  • Test report in accordance with EN 13141-8.
  • Entry in TZWL bulletin.

Heat exchanger

  • Thanks to the high-performance heat exchangers and high-efficiency EC fans, the units achieve a degree of heat provision of 73 % at reference volumetric flow according to EN 13141-8.

Installation instructions

  • Mounting involves 2 steps:
    • Installation of the PP 45 RHK (DN 160) or PP 45 RHL (DN 160) shell sleeve and an external cover in a DN 160 core drill hole with an inclination of 1-2 %.
    • We recommend drilling a DN 182 core hole and using the polystyrene shims provided to align the inclination of the sleeve.
    • The shell sleeve is protected from contamination by plaster protective covers.
    • Then the final assembly kit is integrated.
    • No ducts have to be laid and the system does not have to be adjusted.

Electrical connection

  • When delivered, the unit is assembled and ready for service.
  • The electrical connection is made using a plug connection.
  • Connection to RLS 45 K or RLS 45 O room air control using pluggable control cables.
  • The 12 VDC power cable of the RLS 45 K / RLS 45 O room air control to the unit is also the control cable.

Condensation drain

  • The condensate is removed via an integrated condensation drip edge in the external cover.

Special features

  • The PPB 30 O unit is a perfect alternative to ensure cost-effective air extraction in the bathroom with heat recovery. One low-cost solution for a bathroom could be a combination of 1 x PPB 30 O + 1 x RLS 45 O. (Notice: the room air control has the IP 00 degree of protection). An exhaust air mode of 45 m³/h (without heat recovery and without volumetric flow compensation) is also possible.
  • The PPB 30 O units are primarily designed for installation in the exhaust air rooms. The IP X4 degree of protection facilitates the choice of installation location in the bathroom.
  • The energy efficiency of the PPB 30 O is impressive with an SPI value of 0.19 Wh/m³.
  • Due to the energy-saving motors and a very good sensor-guided operation, the devices achieve energy efficiency class A.
  • The PPB 30 O unit can be operated in 5 ventilation levels 5/12/18/22/26 m³/h and 2 operating modes (continuous ventilation with heat recovery, cross-ventilation without heat recovery).
  • Flow-optimised external covers in the accessories range keep the exhaust air away from the external façade.

Features

  • Final installation kits for PushPull Balanced PPB 30 single-room ventilation unit with two fans, two ceramic heat exchangers, internal cover and two integrated ISO Coarse 45 %(G3) filters such that the air is filtered in both directions.

Required accessories

  • PP 45 RHK or PP 45 RHL shell sleeve
  • PPB 30 AK, PPB 30 AE, PPB 30 AW or PPB 30 AS external cover
  • RLS 45 K or RLS 45 O room air control. An RLS 45 K or RLS 45 O room air control can be used to construct a wired ventilation system comprising PPB 30 and PP 45 units. The maximum number of fans used is 6. Thus, different combinations are possible, e.g. 3 x PPB 30 O + 1 x RLS 45 K or 3 x PPB 30 O + 1 x RLS 45 O.

Optional accessories

  • PPB 30 VS extension kit
  • PP 45 MB wall block
  • PPB 30 ARE and PPB 30 ARW compensating frames
  • PPB 30 ARE BB and PPB 30 ARW BB fixing plates for compensating frame
  • PP 45 HYI and PP 45 HY humidity sensor
  • PP 45 CO2 CO2 sensor
  • PP 45 VOC sensor
  • Air filter, PPB 30 G3 replacement

Table of contents

Wiring diagram

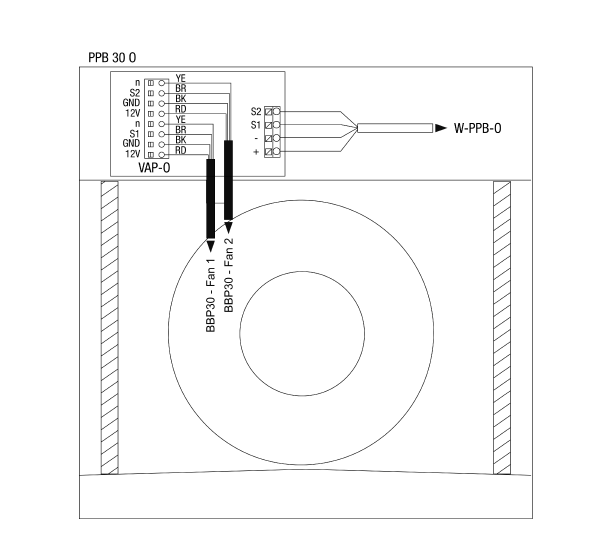

PPB 30 O - Wiring diagram

RLS 45 O - PushPull 45 object room air control

PPB 30 O - PushPull Balance 30 object ventilation unit

X 1.1 - RLS - Mains connection terminal

X 1.2 - RLS - Fan/bus connection terminal

UP-L - Recessed-mounted distributor connection for fan units, connection of all fan units in star shape to distributor

W-F1 - Fan 1 control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. length to distributor 4m.

W-F2 - Fan 2 control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. length to distributor 4m.

W1.X - Fan unit control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. cable length from UP-L distributor to PP 45 ventilation unit = 25 m.

W3 - Bus (RS-485) connection cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. cable length to the sensors, RLS, LTs approx. 100 m. Alternatively, this connection can also be used as a ModBus RTU interface.



PPB 30 O - PPB 30 object ventilation unit

VAP-O - Object fan connection board

PPB 30 - Fan 1 - Fan 1 connecting cable

PPB 30 - Fan 2 - Fan 2 connecting cable

W-PPB-O - PPB 30 O connecting cable to RLS 45 K / O, recommended control cable J-Y(ST)Y 2x2x0.8mm². Max. cable length to the PPB 30 O, 25 metres from the star point.
