Air quality controller

For controlling fans depending on the air quality

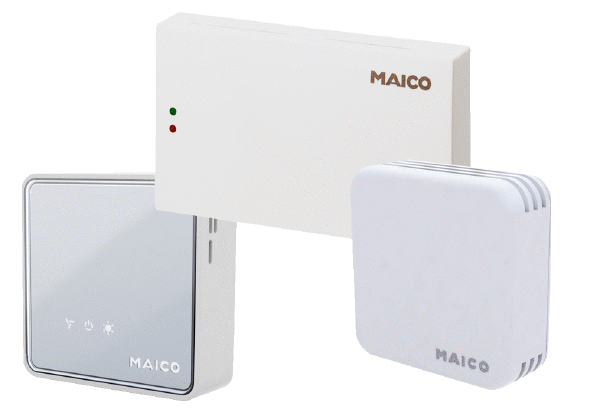

Air quality controller IM0017554.PNG For controlling fans depending on the air quality
Back

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

ArticleTrio VOC ETrio VOC IVOC I WS 120 TrioEAQ 10/1EAQ 10/3
 Product detailsProduct detailsProduct detailsProduct detailsProduct details
Notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
Article

Trio VOC E

External VOC sensor for decentralised and centralised Trio ventilation units

  • On the notes

Trio VOC I

Internal VOC sensor for decentralised and centralised Trio ventilation units

  • On the notes

VOC I WS 120 Trio

Internal VOC sensor for central ventilation units of the WS 120 Trio series

  • On the notes

EAQ 10/1

Sensor for measuring the air quality, 230 V

  • On the notes

EAQ 10/3

Sensor for measuring air quality and air humidity with a linear output signal of 0-10 V. For WS 170 KB.., WR 310/WR 410, WS 320 and WS 470 ventilation units. In addition, a potential-free switching contact can be used depending on VOC and humidity.

  • On the notes
ArticleTrio VOC ETrio VOC IVOC I WS 120 TrioEAQ 10/1EAQ 10/3
Product detailsProduct detailsProduct detailsProduct detailsProduct details
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
Product type Air quality controller Air quality controller Air quality controller Air quality controller Air quality controller
Article number: 0157.1510 0157.1483 0157.1664 0157.0777 0157.0829
Rated voltage

24 V AC / DC

24 V

24 V

230 V

12 V - 25 V AC or 12 V - 35 V DC

Electrical connection

Screw terminals

Screw terminals

Screw terminals

not specified

not specified

Sensor

External

internal

internal

not specified

not specified

Weight

0,07 kg

0,04 kg

0,04 kg

0,24 kg

0,08 kg

Weight including packaging

0,1 kg

0,05 kg

0,19 kg

0,32 kg

0,14 kg

Width

82 mm

82 mm

82 mm

126 mm

80 mm

Height

82 mm

54 mm

54 mm

74 mm

80 mm

Depth

25 mm

25 mm

25 mm

24 mm

25 mm

Width with packaging

85 mm

93 mm

155 mm

190 mm

190 mm

Height with packaging

85 mm

55 mm

75 mm

95 mm

120 mm

Depth with packaging

30 mm

30 mm

175 mm

80 mm

48 mm

Packing unit

1 piece

1 piece

1 piece

1 piece

1 piece

Range

K

K

K

C

K

GTIN (EAN)

4012799991380

4012799991175

4012799981008

4012799577775

4012799578291

Type of voltage

not specified

not specified

Direct current

Alternating current

Alternating current/direct current

Installation site

not specified

not specified

in unit

Wall

Wall

Housing material

not specified

not specified

Synthetic material

Synthetic material

Synthetic material

Colour

not specified

not specified

White

Pure white, similar to RAL 9010

Pure white, similar to RAL 9010

Maximum load

not specified

not specified

not specified

10 A

0,5 A

Degree of protection

not specified

not specified

not specified

IP 30

IP 30

Type of installation

not specified

not specified

not specified

Surface-mounted

Surface-mounted

Output signal

not specified

not specified

not specified

not specified

0 V - 10 V

Imax

not specified

not specified

not specified

not specified

14 mA / at 24 V, Imax Relay 0.5 A 36 VAC/VDC

Electrical plug-type connection

not specified

not specified

not specified

not specified

Plug with screw terminals for 0.25... 1.5 mm²

VOC switching point

not specified

not specified

not specified

not specified

1.300 ppm / CO2-Equivalent +/- 500 ppm can be set

Humidity switching point

not specified

not specified

not specified

not specified

50 % / relative humidity +/- 20 r.h. can be set

Relative humidity measurement range

not specified

not specified

not specified

not specified

5 % - 95 %

Ambient temperature

not specified

not specified

not specified

not specified

0 °C up to 50 °C

Sensor measurement range

not specified

not specified

not specified

not specified

450 ppm - 2.000 ppm - CO2 equivalent

* Blue markings show the differences between the products.
