Air quality controller

VOC I WS 120 Trio

New development
Article number: 0157.1664
Manufacturer: MAICO
Internal VOC sensor for central ventilation units of the WS 120 Trio series

Product data sheet

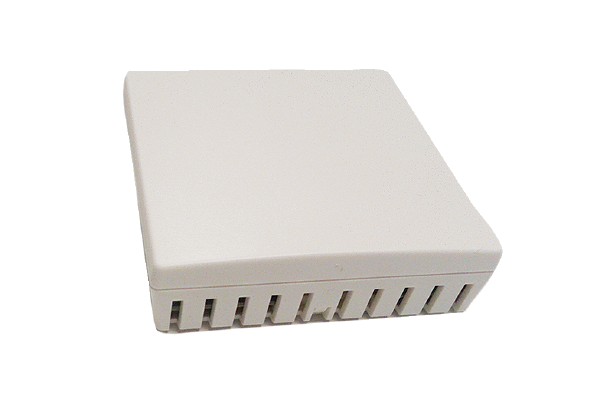

VOC I WS 120 Trio IM0021873.PNG Internal VOC sensor for central ventilation units of the WS 120 Trio series
Back
  • On the notes
Trio VOC E
Trio VOC I
VOC I WS 120 Trio
EAQ 10/1
EAQ 10/3

Characteristic curve

Dimensioned drawing

Technical data

VOC I WS 120 Trio - Technical data

Article VOC I WS 120 Trio
Type of voltage Direct current
Rated voltage 24 V
Electrical connection Screw terminals
Sensor internal
Installation site in unit
Housing material Synthetic material
Colour White
Weight 0,04 kg
Weight including packaging 0,19 kg
Width 82 mm
Height 54 mm
Depth 25 mm
Width with packaging 155 mm
Height with packaging 75 mm
Depth with packaging 175 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799981008
Article number 0157.1664

Product description

Productdescription

VOC I WS 120 Trio

short description

Internal VOC sensor for central ventilation units of the WS 120 Trio series

Product description

  • The VOC sensor controls the ventilation system on the basis of volatile organic compounds (VOCs) present.
  • The sensor’s measuring range is 0 – 100% (in relation to calibration gas).
  • Control range is set in the factory to 30-100%.
