AP

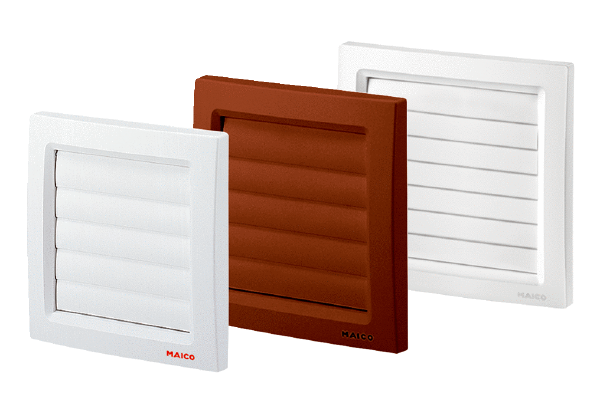

Airstream-operated shutters made of plastic for air extraction, DN 100 & 120 & 150

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

Article	AP 100	AP 100 B	AP 120	AP 150/1
	Product details	Product details	Product details	Product details
Notes

Article

AP 100

Airstream-operated shutter made of plastic for air extraction, DN 100, traffic white

AP 100 B

Airstream-operated shutter made of plastic for air extraction, DN 100, brown

AP 120

Airstream-operated shutter made of plastic for air extraction, DN 120

AP 150/1

Airstream-operated shutter made of plastic for air extraction, DN 150, white

Article	AP 100	AP 100 B	AP 120	AP 150/1
	Product details	Product details	Product details	Product details

Product type	Shutter	Shutter	Shutter	Shutter
Article number:	0059.1058	0059.0957	0059.0950	0059.0996
Air direction	Air extraction	Air extraction	Air extraction	Air extraction
Loss of pressure	10 Pa	10 Pa	10 Pa	10 Pa
Installation site	Wall	Wall	Wall	Wall
Material	Synthetic material, weather and UV resistant	Synthetic material, weather and UV resistant	Synthetic material, weather and UV resistant	Synthetic material, weather and UV resistant
Colour	Traffic white, similar to RAL 9016	chestnut brown, similar to RAL 8015	Traffic white, similar to RAL 9016	Traffic white, similar to RAL 9016
Weight	0,11 kg	0,11 kg	0,17 kg	0,4 kg
Weight including packaging	0,12 kg	0,35 kg	0,18 kg	0,41 kg
Type of shutter	Airstream-operated opening/closing	Airstream-operated opening/closing	Airstream-operated opening/closing	Airstream-operated opening/closing
Suitable for nominal size	100 mm	100 mm	125 mm	150 mm
Width	150 mm	150 mm	172 mm	200 mm
Height	150 mm	150 mm	172 mm	200 mm
Depth	50 mm	50 mm	53 mm	55 mm
Width with packaging	151 mm	153 mm	175 mm	202 mm
Height with packaging	151 mm	153 mm	175 mm	202 mm
Depth with packaging	51 mm	52 mm	54 mm	57 mm
Ambient temperature	60 °C	60 °C	60 °C	60 °C
Packing unit	1 piece	1 piece	1 piece	1 piece
Range	A	A	A	A
GTIN (EAN)	4012799990055	4012799599579	4012799599500	4012799599968

* Blue markings show the differences between the products.
