Shutter

AP 120

Article number: 0059.0950
Manufacturer: MAICO
Airstream-operated shutter made of plastic for air extraction, DN 120

Product data sheet

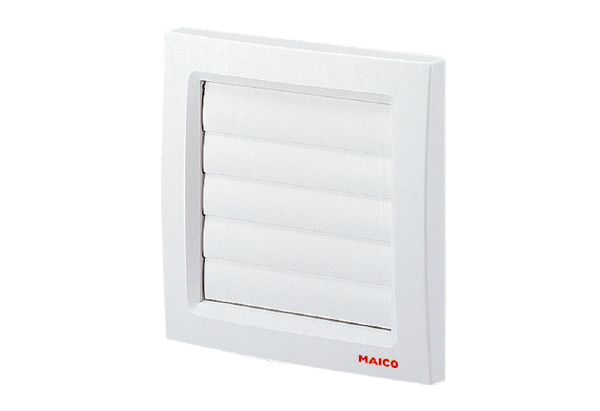

AP 120 IM0009952.PNG Airstream-operated shutter made of plastic for air extraction, DN 120

Characteristic curve

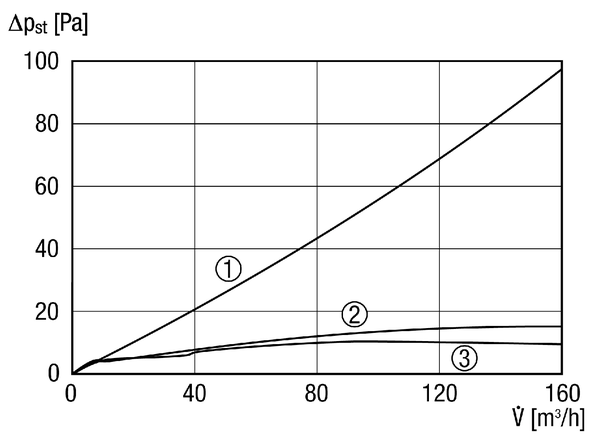

AP 120 - Characteristic curve

  1. AP 120 with SF 120 air filter
  2. AP 120 with FG 120 fly screen
  3. AP 120

Dimensioned drawing

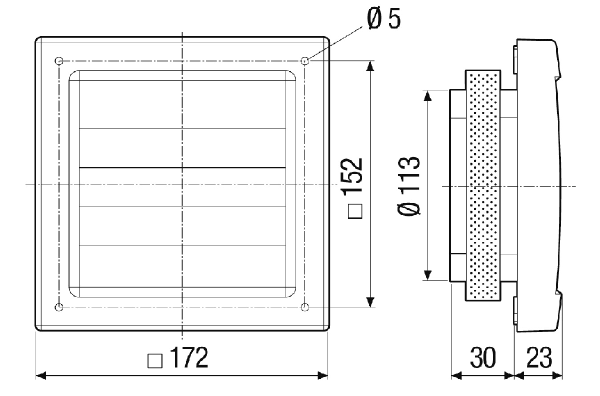

AP 120 - Dimensioned drawing [mm]

Technical data

AP 120 - Technical data

Article AP 120
Air direction Air extraction
Loss of pressure 10 Pa
Installation site Wall
Material Synthetic material, weather and UV resistant
Colour Traffic white, similar to RAL 9016
Weight 0,17 kg
Weight including packaging 0,18 kg
Type of shutter Airstream-operated opening/closing
Suitable for nominal size 125 mm
Width 172 mm
Height 172 mm
Depth 53 mm
Width with packaging 175 mm
Height with packaging 175 mm
Depth with packaging 54 mm
Ambient temperature 60 °C
Packing unit 1 piece
Range A
GTIN (EAN) 4012799599500
Article number 0059.0950

Accessories / Accessories of

AP 120 - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Fly screen FG 120 0093.0924 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Small room fan ECA 120 small room fans - - -
Aeronom room air system WS 170 - - -
Duct-mounted fan ERV 120 - - -
Centralised ventilation unit WS 150 R No longer available for delivery 0095.0057 on request
  • On the notes
Centralised ventilation unit WS 150 L No longer available for delivery 0095.0058 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Sound-insulated ventilation box ESR 12/1 No longer available for delivery 0080.0281 on request
  • On the notes
Sound-insulated ventilation box ESR 12 S No longer available for delivery 0080.0227 on request
  • On the notes

Product description

Productdescription

AP 120

short description

Airstream-operated shutter made of plastic for air extraction, DN 120

Product description

  • Airstream-operated shutters for air extraction.
  • Exterior wall connection when using WH wall sleeve.
  • With covered screw holes.
  • Sealing strip included in the scope of delivery.
  • Accessories: FG fly screen can be used.
