Sound-insulated ventilation box

ESR 12/1

No longer available for delivery
Article number: 0080.0281
Manufacturer: MAICO
Sound-insulated ventilation box, DN 125, single-phase AC

Product data sheet
ESR 12/1 IM0009882.PNG Sound-insulated ventilation box, DN 125, single-phase AC
Back
  • On the notes
ESR 12/1
ESR 16/1
ESR 20/1
ESR 25/1
ESR 31/1
ESR 35/1
ESR 40/1

Characteristic curve

ESR 12/1 - Characteristic curve

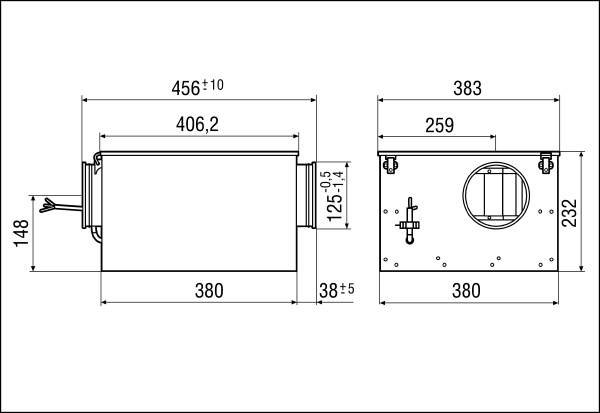

Dimensioned drawing

ESR 12/1 - Dimensioned drawing [mm]

Technical data

ESR 12/1 - Technical data

Article ESR 12/1
Air flow volume 300 m³/h
Rotating speed 2.530 1/min
Speed controllable −
Nominal output 85 W
Inom 0,35 A
Imax 0,4 A
Degree of protection IP X4
Insulation class B
Weight 12,8
Nominal size 125 mm
Airstream temperature at nominal current 65 °C
Airstream temperature at IMax 65 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799802815
Article number 0080.0281



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, S5 (dB(A))

–

36

35

35

30

24

16

15

40

LWA5, S5 (dB(A))

–

40

41

34

34

32

29

24

47

LWA6, S5 (dB(A))

–

43

50

52

58

55

52

47

62

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Accessories

ESR 12/1 - Accessories

General accessories

Product type Name Art. No. Price*(EUR) Action
Shutter AP 120 0059.0950 on request
  • On the notes
Automatic backflow preventer AVM 12 0093.0003 on request
  • On the notes
External grille SG 120 0059.0951 on request
  • On the notes
Protective grille SGR 12 0150.0124 on request
  • On the notes
Tubular sound absorber RSR 12 Remaining parts 0092.0312 on request
  • On the notes
Tubular sound absorber RSR 12-1 0092.0593 on request
  • On the notes
Tubular sound absorber RSR 12/50-1 0092.0601 on request
  • On the notes
Electrical air heater ERH 12-1 0082.0101 on request
  • On the notes
Water air heater WRH 12-1 0082.0117 on request
  • On the notes
Air filter TFE 12-4 0149.0075 on request
  • On the notes
Air filter TFE 12-7 0149.0050 on request
  • On the notes
Tubular sound absorber RSR 12/50 No longer available for delivery 0092.0322 on request
  • On the notes
Air filter TFE 12-5 No longer available for delivery 0149.0059 on request
  • On the notes
Heat exchanger WT 300 No longer available for delivery 0152.0020 on request
  • On the notes
Speed controller ST 1 No longer available for delivery 0157.0810 on request
  • On the notes
Speed controller STU 1 No longer available for delivery 0157.0814 on request
  • On the notes
Speed controller, distribution board STS 2,5 No longer available for delivery 0157.0255 on request
  • On the notes
TRE 0,4 No longer available for delivery 0016.0110 on request
  • On the notes
5-step transformer, control cabinet TRE 1,6 S No longer available for delivery 0157.0744 on request
  • On the notes

Product description

Productdescription

ESR 12/1

short description

Sound-insulated ventilation box, DN 125, single-phase AC

Product description

Features

  • With 50 mm sound absorbing mineral fibre plates to meet the increased requirements for especially low noise levels.
  • Inlet and outlet side connection couplings for direct installation in ventilation ducts.
  • Removable housing cover fitted with clip-locks - enables easy and quick cleaning of the ventilation box.
  • Centrifugal impeller made of galvanised steel, with forward curved blades.
  • Statically and dynamically balanced in accordance with DIN ISO 1940, balance quality 6.3.

Air flow direction

  • The airsteam direction is indicated by an arrow marked on the housing.

Motor

  • External rotor - capacitor motor.
  • Thermal overload protection as standard feature.
  • Robust motor with ball bearings, maintenance-free.
  • Temperature classes B or F.
  • IP 44 degree of protection for closed housing covers as well as duct connections fitted on the inlet and outlet sides.
  • There can be a physically induced humming noise, through the use of phase angle technology. 5-step transformers are therefore used for speed control in rooms requiring quiet fan operations.

Mounting instructions

  • Can be fitted in any position.

Electrical connection

  • Flexible connecting cable, 2.5 m long.

Safety instructions

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet or outlet. To do this, fit a protective grille.

Table of contents

Wiring diagram

ESR 12/1 - Wiring diagram

ESR ... with distributor

V - distributor (supplied by the customer)



Predecessor - successor

ESR 12/1 - Successor

Product type Name Art. No. Action
Sound-insulated ventilation box ESR 12-2 No longer available for delivery 0080.0610
  • On the notes
Sound-insulated ventilation box ESR 12-2 No longer available for delivery 0080.0056
  • On the notes
