For DHP channel systems

Electric air heater with heater power ratings from 9000 W to 28000 W, three-phase AC

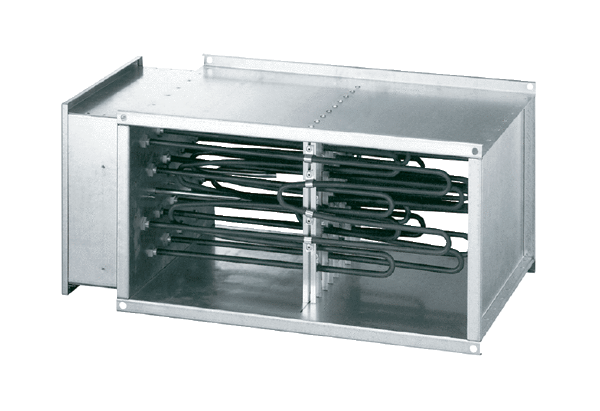

For DHP channel systems IM0017484.PNG Electric air heater with heater power ratings from 9000 W to 28000 W, three-phase AC
Back

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

ArticleDHP 22-9DHP 22-16DHP 25-16DHP 28-16DHP 31-16DHP 31-28
 Product detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct details
Notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
Article

DHP 22-9

Electric air heater, three-phase AC, channel dimensions 500 mm x 250 mm

  • On the notes

DHP 22-16

Electric air heater, three-phase AC, channel dimensions 500 mm x 250 mm

  • On the notes

DHP 25-16

Electric air heater, three-phase AC, channel dimensions 500 mm x 300 mm

  • On the notes

DHP 28-16

Electric air heater, three-phase AC, channel dimensions 600 mm x 300 mm

  • On the notes

DHP 31-16

Electric air heater, three-phase AC, channel dimensions 600 mm x 350 mm

  • On the notes

DHP 31-28

Electric air heater, three-phase AC, channel dimensions 600 mm x 350 mm

  • On the notes
ArticleDHP 22-9DHP 22-16DHP 25-16DHP 28-16DHP 31-16DHP 31-28
Product detailsProduct detailsProduct detailsProduct detailsProduct detailsProduct details
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
Product type Electrical air heater Electrical air heater Electrical air heater Electrical air heater Electrical air heater Electrical air heater
Article number: 0082.0090 0082.0091 0082.0093 0082.0098 0082.0099 0082.0097
Min. flow velocity

1,5 m/s

1,5 m/s

1,5 m/s

1,5 m/s

1,5 m/s

1,5 m/s

Type of voltage

Three-phase AC

Three-phase AC

Three-phase AC

Three-phase AC

Three-phase AC

Three-phase AC

Rated voltage

400 V

400 V

400 V

400 V

400 V

400 V

Frequency

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

Imax

13 A

23,1 A

23,1 A

23,1 A

23,1 A

40,5 A

Degree of protection

IP 43

IP 43

IP 43

IP 43

IP 43

IP 43

Mains cable

5 x 1,5 mm²

not specified

not specified

not specified

not specified

not specified

Installation

inside and outside

inside and outside

inside and outside

inside and outside

inside and outside

inside and outside

Installation site

Channel

Channel

Channel

Channel

Channel

Channel

Installation position

horizontal / vertical

horizontal / vertical

horizontal / vertical

horizontal / vertical

horizontal / vertical

horizontal / vertical

Housing material

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Weight

11,91 kg

12,98 kg

13,59 kg

14,47 kg

14,47 kg

19,55 kg

Weight including packaging

12,58 kg

13,68 kg

15,05 kg

15,41 kg

15,41 kg

20,5 kg

Channel dimension

500 mm x 250 mm

500 mm x 250 mm

500 mm x 300 mm

600 mm x 300 mm

600 mm x 350 mm

600 mm x 350 mm

Width

639 mm

639 mm

639 mm

739 mm

739 mm

739 mm

Height

288 mm

288 mm

338 mm

338 mm

388 mm

388 mm

Depth

370 mm

370 mm

370 mm

370 mm

370 mm

370 mm

Width with packaging

670 mm

670 mm

695 mm

765 mm

765 mm

760 mm

Height with packaging

300 mm

300 mm

410 mm

450 mm

450 mm

450 mm

Depth with packaging

395 mm

380 mm

400 mm

385 mm

385 mm

385 mm

Air heater type

electrical

electrical

electrical

electrical

electrical

electrical

Heater power rating

9.000 W

16.000 W

16.000 W

16.000 W

16.000 W

28.000 W

Packing unit

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece

Range

D

D

D

D

D

D

GTIN (EAN)

4012799820901

4012799820918

4012799820932

4012799820987

4012799820994

4012799820970

* Blue markings show the differences between the products.
