Insect protection funnel

IST MDR

Article number: E059.2087.0000
Manufacturer: MAICO
Spare insect protection funnel

Product data sheet

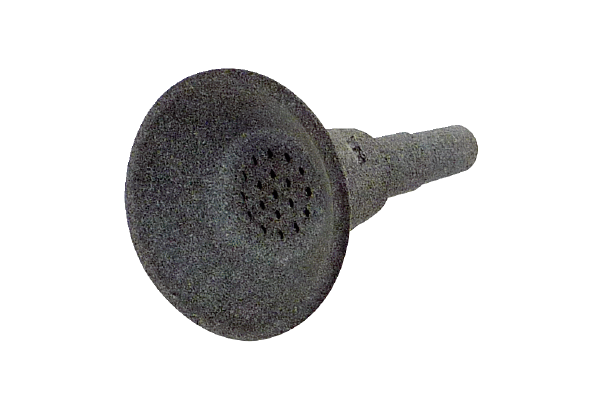

IST MDR IM0020676.PNG Spare insect protection funnel
Back
RLS PP-K
RLS PP-K1
RLS 2 F
HB WS 75
MP RLS WS 75
DS MDR-PG AVC
DZS MDR-VG AVC
IST MDR

Characteristic curve

Dimensioned drawing

Technical data

IST MDR - Technical data

Article IST MDR
Housing material Synthetic material
Colour grey
Weight 0,01 kg
Weight including packaging 0,06 kg
Width 40 mm
Height 25 mm
Depth 25 mm
Width with packaging 250 mm
Height with packaging 25 mm
Depth with packaging 175 mm
Packing unit 1 piece
Range E
GTIN (EAN) 4012799101611
Article number E059.2087.0000

IST MDR -

Product description

Productdescription

IST MDR

short description

Spare insect protection funnel

Product description

Features

  • Replacement insect protection funnel.
